Description
- Model: GE IC697MDL653
- Brand: GE Fanuc (now Emerson)
- Series: Series 90-70 PLC
- Core Function: 32-Channel Discrete Input (24V DC)
- Product Type: Digital Input Module
- Key Specs: 32 Points | 24V DC (Pos/Neg Logic) | Individual LEDs
- Inputs per Module: 32 (arranged in four groups of 8)
- Input Voltage: 24V DC (Nominal), range of 18V to 30V DC
- Input Logic: Compatible with both Positive (Sourcing) and Negative (Sinking) logic
- Input Current: 7.0 mA per point at 24V DC
- Isolation: 1500V between field side and backplane logic
- Input Filter: 1.0 ms to 100 ms (Software configurable via MS-DOS or LogicMaster 90)
- Backplane Current: 0.5 Amps at 5V DC (Internal bus)
- Diagnostics: Module OK LED and 32 individual I/O status LEDs
- Terminal Type: Removable front connector (sold separately or included in surplus)

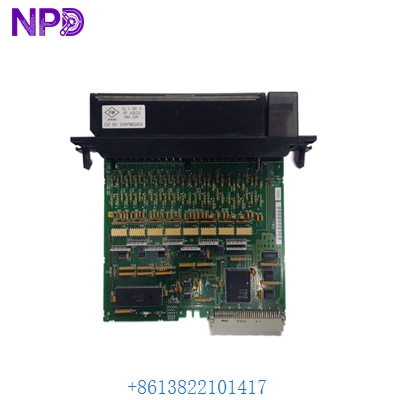

GE IC697MDL653
Application Scenarios & Pain Points
The Series 90-70 was the “big brother” of the GE line, often used in massive, high-stakes environments like nuclear power plants or large-scale steel mills. The GE IC697MDL653 provides high-density input capability in a single slot. In my experience, because these racks are often decades old, the most common “pain point” isn’t a chip failure—it’s mechanical. The front terminal connectors can become brittle, and the individual LEDs can burn out, making it impossible for a technician to troubleshoot a sensor without a laptop.
Typical Application Scenarios:
- Material Handling: Monitoring hundreds of limit switches and proximity sensors on high-speed sorting conveyors.
- Redundant Safety Systems: Providing status feedback from field valves and actuators in 2-out-of-3 (2oo3) voting architectures.
- Operator Consoles: Reading 32 individual pushbuttons or selector switches from a local control panel into the PLC.
- Legacy Upgrades: Replacing older 8-point or 16-point cards with the MDL653 to free up rack space for communication modules.
Real-World Case: The “Ghost” Input at the Grain Elevator
Background: A large grain elevator used a 90-70 system for silo level monitoring. One morning, the PLC started reporting that Silo 5 was “Full,” even though it was empty.
Problem: The maintenance team measured 24V at the terminal of the GE IC697MDL653, which seemed correct. However, looking at the LogicMaster software, the input bit was flickering. The culprit was a failing input optocoupler on the board that couldn’t handle the high ambient dust and humidity of the elevator, causing it to trigger at a lower-than-normal threshold.
Solution: They didn’t have time to troubleshoot the PCB. We sent a New Surplus MDL653 via overnight air. The tech pulled the old board, moved the wiring swing-arm to the new board, and slammed it home.
Result: The “Ghost” signal vanished, and the silo filling operation resumed. Maintenance Tip: If you see an LED on the module glowing dimly, it’s a sign that the internal opto-isolation is failing. Replace the card before it fails completely and causes a process trip.

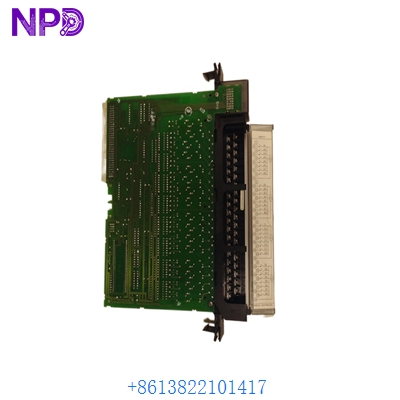

GE IC697MDL653
Compatible Replacement Models
The IC697 line has several 24V DC input options. Make sure you match the density and the logic type.
| Model | Points | Logic Type | Note |
| IC697MDL653 | 32 | Pos/Neg (Sinking/Sourcing) | ✅ Direct Match |
| IC697MDL651 | 32 | Negative Logic Only | ⚠️ Use only if your field wiring is NPN |
| IC697MDL652 | 32 | Positive Logic Only | ⚠️ Use only if your field wiring is PNP |
| IC694MDL660 | 32 | Pos/Neg | ❌ Incompatible (For RX3i series, different rack) |
Engineer’s Advice: The “MDL653” is the most versatile because it handles both logic types. If you’re stocking a “universal spare” for a Series 90-70 rack, this is the one to keep.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Correlation | Quick Check | Action |
| “Module OK” LED is Off | Backplane Power/Config | ✅ High | Is the module seated correctly? Check LogicMaster for configuration errors. | Reseat module or re-download hardware config. |
| LED is ON, but PLC reads 0 | Software address mismatch | ⚠️ Medium | Check the %I address assigned to that slot in the software. | Update address mapping in LogicMaster. |
| PLC reads 1, but LED is OFF | LED Failure | ✅ High | Check the voltage at the terminal. If 24V is present and PLC is 1, the LED is dead. | Replace module if visual diagnostics are required. |
| Group of 8 inputs dead | Blown Common Fuse | ✅ High | These inputs are grouped in 8s. Check the common (C) wire for that group. | Check field wiring and external fuses. |
Final Tech Note: When replacing this module, always check the DIP switch settings (if applicable on your specific revision) or the software configuration for the “Input Filter Time.” If you replace a module and your inputs seem “laggy,” the new module might have a default filter time of 100ms instead of the 10ms your process requires.

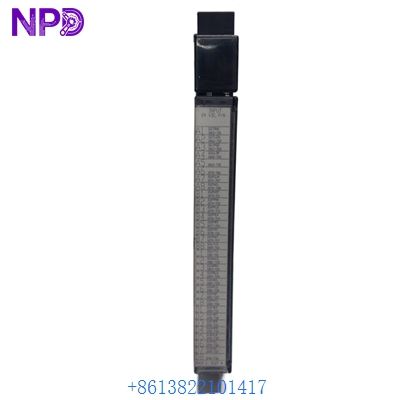

GE IC697MDL653
