Description
Product Specifications
- Model Number: IC697MDL750
- Manufacturer: GE Fanuc (Emerson)
- Module Type: Discrete Output (Positive Logic)
- Number of Outputs: 32 Points (4 isolated groups of 8)
- Rated Voltage: 24/48 Volts DC
- Output Voltage Range: 20 to 60 Volts DC
- Output Current: 0.5 Amps per point / 2 Amps per group
- Inrush Current: 10 Amps maximum for 20 ms (20x rated current)
- Isolation: 1500V (Output to Backplane) / 500V (Between groups)
- Response Time: 1 ms (On/Off)
The IC697MDL750 is a high-density discrete output module designed for the GE Series 90-70 PLC system. It features 32 output points organized into four isolated groups, specifically engineered to handle loads with high inrush current characteristics such as solenoids, motor starters, and indicators. The module is fully software-configurable, eliminating the need for manual jumpers or DIP switches, and includes front-panel LED indicators for real-time status monitoring of each logic-side circuit. Its robust mechanical keying ensures safe and correct replacement in high-reliability industrial control environments.

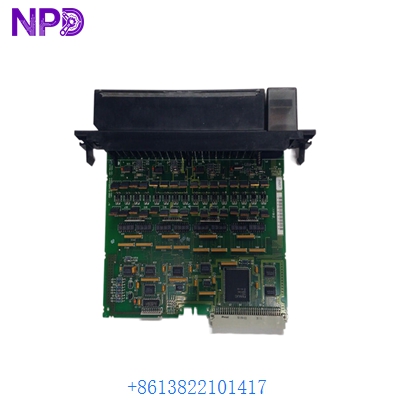

GE IC697MDL750

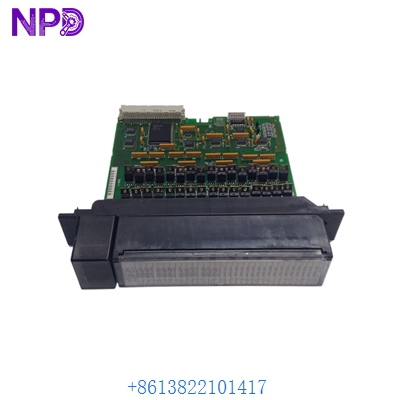

GE IC697MDL750
GE IC697MDL750
Recommended Similar Models
| Brand | Model Number | Description | Voltage / Points |
| GE Fanuc | IC697MDL740 | Discrete Output Module | 24/48V DC / 16-Point |
| GE Fanuc | IC697MDL350 | Discrete Output Module | 120V AC / 32-Point |
| GE Fanuc | IC697MDL752 | Discrete Output Module | 12V DC / 32-Point |
| GE Fanuc | IC697MDL753 | Discrete Output (Neg Logic) | 5/48V DC / 32-Point |
| GE Fanuc | IC697MDL940 | Relay Output Module | 2 Amp / 16-Point |
