Product Description

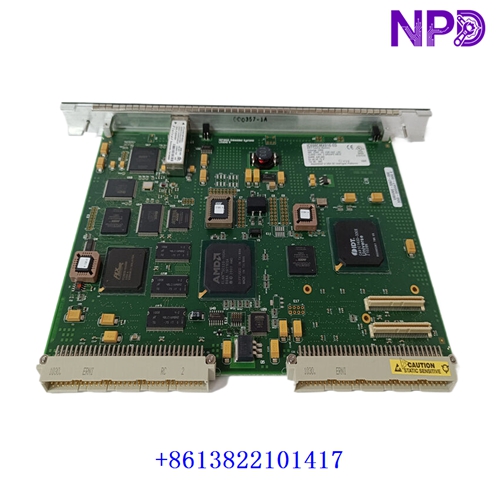

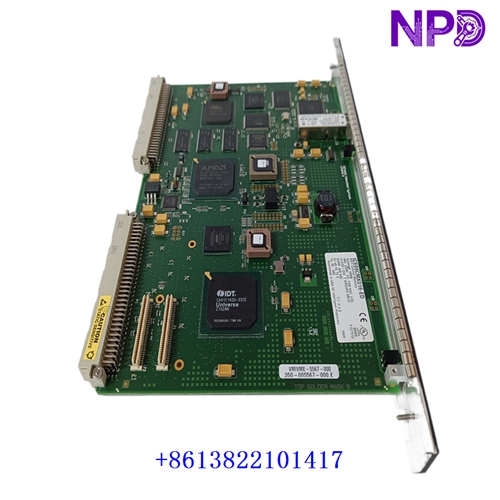

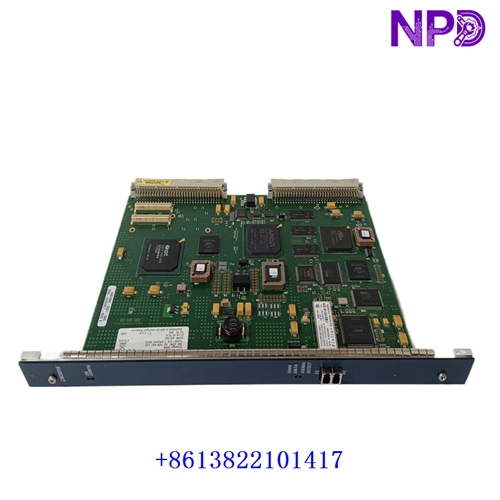

The GE IC698CMX016-ED, associated with the VMIVME-5567-000 and 350-005567-000 E part identifiers, is a Control Memory Xchange (CMX) reflective memory module used in compatible GE PACSystems RX7i and VMIC VMEbus control architectures. It enables high-speed, deterministic data sharing among distributed controllers through a fiber-optic network. The module maintains local reflective memory and propagates data updates to other nodes, reducing the need for continuous CPU-managed data transfers. Typical applications include coordinated machine control, multi-controller synchronization, and real-time industrial automation. Verify the complete part number and hardware revision before ordering, as the listed identifiers may represent related versions or configurations.
IC698CMX016-ED VMIVME-5567-000 350-005567-000 E
Product Parameters and Datasheet
Brand: GE / GE Fanuc / VMIC
Model: IC698CMX016-ED
Related Part Numbers: VMIVME-5567-000; 350-005567-000 E
Series: PACSystems RX7i / VMIC Reflective Memory
Product Name: Control Memory Xchange (CMX) Reflective Memory Module
Product Type: Fiber-Optic Reflective Memory Communication Module
Reflective Memory: 16 MB SDRAM with parity protection
Fiber Interface: LC multimode fiber-optic interface
Serial Link Rate: 2.12 Gbaud
Maximum Fiber Distance: Up to 300 m, depending on fiber specifications
Maximum Network Nodes: Up to 256
Data Packet Size: 4–64 bytes
Data Transfer Rate: Depends on packet size and network configuration
Power Requirements: +5 VDC, approximately 1.8 A from the backplane for the listed CMX configuration
Mounting: Single-slot RX7i/VME-compatible board configuration, depending on the exact model
Place of Manufacture: Not confirmed for the individual unit
Product Status: Confirm with supplier
Dimensions: Verify the applicable hardware manual and exact board version
Weight: Not confirmed
Country of Origin: Verify the product label and shipping documents
Discontinued: Confirm current lifecycle status with the supplier
Recommended GE / VMIC Models
1. IC698RMX016 – Redundant Memory Xchange module for compatible RX7i systems.
2. IC698CPU350 – PACSystems RX7i central processing unit.
3. IC698CPU360 – RX7i CPU for compatible control configurations.
4. IC698CHS007 – RX7i 7-slot rack.
5. IC698CHS009 – RX7i rack chassis.
6. IC698PSA100 – RX7i power supply module.
7. IC698PSA350 – RX7i power supply module.
8. IC698CPE010 – RX7i Ethernet communications module.
9. IC698ETM001 – RX7i Ethernet interface module.
10. IC698CRE020 – RX7i CPU redundancy-related module; verify configuration.
11. VMIVME-5565 – VMIC reflective memory module family.
12. VMIVME-5565-000 – Reflective memory board variant; verify fiber and interface requirements.
13. VMIVME-5565PIORC – Reflective memory product variant; verify exact configuration.
14. VMIVME-5588 – VMIC VMEbus reflective memory product; confirm system compatibility.
15. VMIVME-7807 – VMEbus embedded computer family for compatible systems.
Compatibility Note: These are related GE/VMIC control and reflective-memory products, not guaranteed direct replacements. Confirm the rack or chassis type, fiber interface, node configuration, firmware, and full ordering code before substitution.
