Description

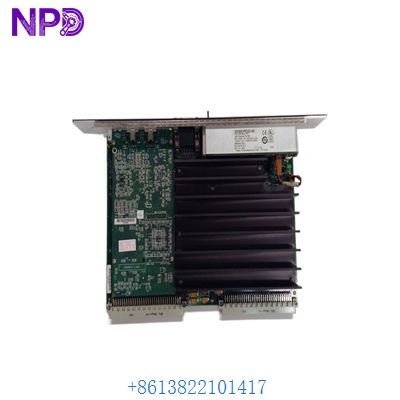

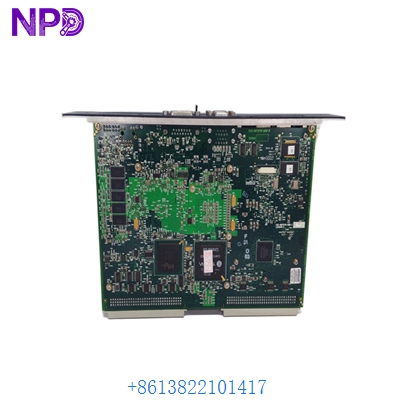

The GE IC698CPE030 is a high-performance CPU designed for the PACSystems RX7i controller family. It features a 1.1GHz Pentium M processor, providing the computational power required for complex control algorithms, high-speed data handling, and large-scale industrial applications. This controller integrates seamlessly into VME64-based architectures for maximum throughput.
Technical Parameters
- Model: IC698CPE030
- Processor: Intel Pentium M (1.1 GHz)
- User Memory: 64 MB (Battery-backed RAM)
- Flash Memory: 64 MB (Non-volatile storage)
- Ethernet Ports: 2 Integrated 10/100/1000 Mbps RJ-45 ports
- Serial Ports: 3 Ports (RS-232, RS-485, and station manager)
Product Specifications
- Bus Architecture: VME64 (Standard RX7i Rack)
- Input Voltage: 5V DC (Internal bus)
- Floating Point: Supported for advanced mathematical calculations
- Logic Execution: Highly optimized Boolean and function block performance
- Redundancy: Supports Hot Standby CPU redundancy
- Operating Temp: 0°C to 60°C (32°F to 140°F)
Application Areas
- Large-scale power generation and distribution
- Complex chemical and petrochemical processing
- High-speed automotive assembly and manufacturing
- Water treatment and environmental control systems
- Mining and heavy material handling automation
Product Q&A
- Q: Does the IC698CPE030 support redundant networking?
- A: Yes, it features multiple built-in Ethernet ports that can be configured for redundant communication paths to ensure network uptime.
- Q: How is the user program protected during a power failure?
- A: The CPU utilizes a battery-backed RAM system to preserve logic and data, with the option to store critical files in the 64MB onboard Flash memory.
- Q: Can this CPU be used with older Series 90-70 modules?
- A: Yes, the RX7i platform and this CPU are designed to support VME-based Series 90-70 I/O modules, providing an easy migration path.
