Description
The GE (now Emerson) IC754VSF12CTD is a high-performance 12.1-inch QuickPanel View and Control operator interface. It combines a vivid touch-screen display with integrated PLC-like control capabilities, providing a unified platform for human-machine interface (HMI) and logic execution in a single hardware unit.
Product Parameters (Datasheet)
- Model Number: IC754VSF12CTD
- Display Size: 12.1 inches
- Display Type: Active Matrix Color TFT LCD
- Resolution: 800 x 600 pixels (SVGA)
- Input Voltage: 24V DC (Range: 18V to 30V DC)
- Processor: Intel PXA255 (400 MHz)
- Memory: 64 MB DRAM, 32 MB Flash
- Operating System: Microsoft Windows CE
- Communication Ports: * 1 x Ethernet (10/100 Mbps)
- 2 x Serial Ports (RS-232 / RS-485)
- 2 x USB Ports
- Touch Screen: Resistive (Analog)

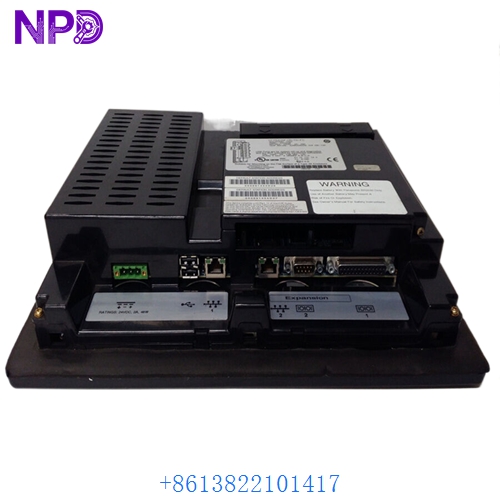

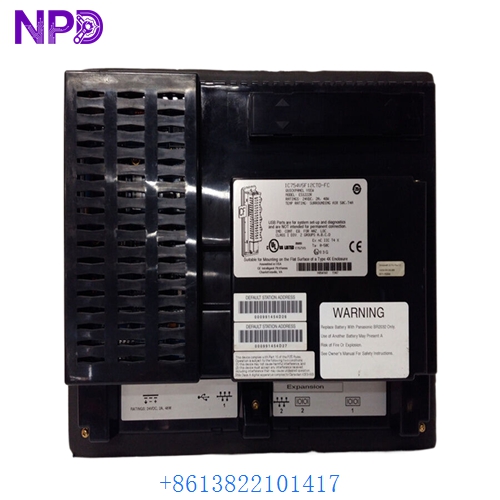

GE IC754VSF12CTD
GE IC754VSF12CTD
GE IC754VSF12CTD
Country of Origin
This HMI unit was manufactured by GE Fanuc Automation in the United States, engineered for reliable performance in demanding industrial factory floor environments.
Application Fields
The IC754VSF12CTD is versatile enough for both localized machine control and plant-wide visualization:
- Automotive Assembly: Monitoring robotic cell status and providing operator manual-override controls.
- Food & Beverage: Displaying real-time tank levels, temperature profiles, and recipe management systems.
- Water Treatment: Acting as a localized control hub for pump stations and filtration monitoring.
- Packaging Machinery: Managing high-speed conveyor logic and displaying error diagnostics for easy troubleshooting.
Product Usage Instructions
- Panel Mounting: Cut an opening in the control cabinet door according to the template. Use the provided mounting clips to secure the HMI and ensure the gasket provides a NEMA 4/IP65 seal.
- Powering Up: Connect a clean 24V DC power source. Ensure the polarity is correct and the chassis is grounded to prevent electrical noise interference with the touch screen.
- Project Development: Use Proficy Machine Edition (PME) to develop both the HMI screens and the logic (if using the “Control” features). Download the project via Ethernet or a USB flash drive.
- Peripheral Connection: Use the USB ports for connecting a keyboard or mouse for initial setup, or a barcode scanner for data entry during production.
- Data Backup: Utilize the CompactFlash (CF) slot for storing historical trend data and alarm logs, ensuring information is preserved even if the unit is replaced.
Product Technical Description
The IC754VSF12CTD is designed to reduce hardware costs by eliminating the need for a separate PLC and HMI. Technically, it runs a real-time logic engine on top of Windows CE, allowing it to execute ladder logic or structured text while simultaneously updating the graphical display. Its SVGA resolution provides crisp, clear imaging for complex process diagrams. The “VSF” designation indicates a specific series within the QuickPanel family that emphasizes high-visibility displays and expandable communication options via fieldbus cards.
Q&A (Common Questions)
Q: Can I run standard Windows PC software on this unit? A: No. It runs Windows CE, a stripped-down embedded operating system. Only applications specifically compiled for ARM-based Windows CE or projects developed in Proficy Machine Edition will run.
Q: Does it support remote monitoring? A: Yes. The integrated Ethernet port supports web-based monitoring features (depending on software configuration), allowing authorized users to view the HMI screen from a remote browser.
Q: How do I calibrate the touch screen? A: If the touch points become unaligned, you can access the “Touch” settings in the Windows CE Control Panel or trigger a calibration utility during the boot-up sequence.
Q: Is it possible to add more memory? A: While the internal RAM is fixed, you can use the CompactFlash slot to significantly expand the storage for project files, logs, and recipes.
Similar Model Recommendations
- GE IC754VSI12CTD (QuickPanel View only – no integrated control)
- GE IC754VSF06CTD (6-inch version of the same series)
- GE IC754VBF15CTD (15-inch larger screen variant)
- Emerson QuickPanel+ (Modern high-speed replacement series)
- GE IC754ACC12BKL (Replacement backlight kit for this 12-inch model)
For technical support or to procure the GE IC754VSF12CTD, please contact our automation and HMI specialists.
