Description
The GE IS200EPSMG1ABB is a high-reliability Exciter Power Supply (EPSM) module used within the GE Mark VI Innovation Series drive and excitation systems. It functions as the primary power conversion unit, taking high-voltage AC or DC input and providing regulated low-voltage DC power to the control rack and gate driver boards.
Product Parameters (Datasheet)
- Model Number: IS200EPSMG1ABB
- System Series: Mark VI Innovation / EX2100 Excitation
- Board Type: EPSM (Exciter Power Supply Module)
- Input Voltage: Supports various inputs depending on configuration (Typically 125V DC or 115/230V AC)
- Output Voltages: +5V DC, ±15V DC, and +24V DC
- Form Factor: Plug-in PCB module for use in an EPSM rack or cabinet
- Status Indicators: LED indicators for Input Power, Output OK, and Fault conditions
- Cooling: Natural convection or cabinet-forced air

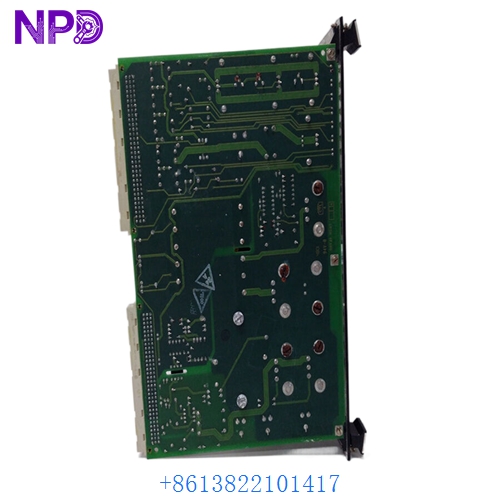

GE IS200EPSMG1ABB

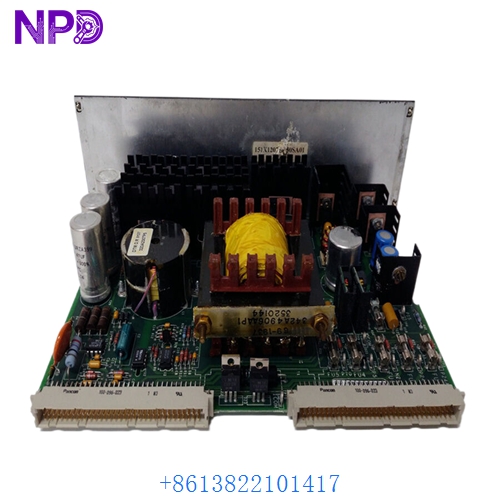

GE IS200EPSMG1ABB
GE IS200EPSMG1ABB
Country of Origin
This power electronics module is manufactured by General Electric (GE) in the United States, specifically engineered for heavy-duty industrial power generation and motor control applications.
Application Fields
The IS200EPSMG1ABB is a critical component in the following environments:
- EX2100 Excitation Systems: Providing control power for the generator field excitation in large power plants.
- Mark VI Turbine Controls: Supporting the internal power requirements of the control and protection racks.
- Large Drive Systems: Powering the logic for high-horsepower Innovation Series AC and DC drives.
- Utility Substations: Acting as a localized power regulator for integrated control systems.
Product Usage Instructions
- Safety First: Ensure the system is completely de-energized before installation. Power supply modules often involve high-voltage input terminals.
- Mounting: Slide the board into the designated slot. Ensure the connectors are properly aligned with the backplane and that the module is securely latched or screwed in.
- Grounding: Verify that the chassis ground connection is solid. Power supply modules are highly sensitive to grounding issues, which can cause ripple noise in the output.
- Diagnostic Check: After powering up, check the “Output OK” LEDs. If the “Fault” LED is lit, check for downstream short circuits in the connected control boards.
- Airflow: Do not block the vents on the module. Excess heat is the leading cause of component failure in power supply boards.
Product Technical Description
The IS200EPSMG1ABB functions as a switching-mode power supply (SMPS). Technically, it features advanced filtering and surge suppression to protect the sensitive microprocessor boards it powers from the harsh electrical environment of a power plant. The “G1” version designates the specific hardware revision, while the “ABB” suffix indicates the particular component assembly and firmware compatibility. This board is designed for high-availability systems, often used in redundant configurations where a failure in one EPSM will not shut down the entire control system.
Q&A (Common Questions)
Q: What is the difference between IS200EPSMG1A and IS200EPSMG1ABB? A: The “ABB” suffix indicates a later revision or a specific functional enhancement. While often backwards compatible, it is best to consult your system’s bill of materials (BOM) to ensure exact matching.
Q: Can this board be hot-swapped? A: This depends on the specific cabinet configuration. While many Mark VI power systems support redundancy, always refer to the specific EX2100 or Mark VI manual for “Hot-Swap” safety procedures.
Q: Why are my output voltages lower than expected? A: This can be caused by an overloaded power rail or aging electrolytic capacitors. If the +5V rail drops significantly, the controller may fail to boot.
Q: Is this board repairable? A: Due to the high reliability required in power generation, GE typically recommends replacing the unit or having it professionally refurbished and load-tested rather than performing field repairs.
Similar Model Recommendations
- GE IS200EPSMG1A (Earlier revision)
- GE IS200JPDFG1A (Power Distribution Board)
- GE IS200DSPXG1A (Digital Signal Processing board)
- GE IS200ECTBG1A (Exciter Contact Terminal Board)
- GE IS200ERRBG1A (Exciter Relay Board)
For technical procurement or support regarding the GE IS200EPSMG1ABB, please contact our industrial power specialists.
