Description
The GE IS200EPSMG2AEC is a high-performance excitation power supply module engineered specifically for the General Electric Mark VI and Mark VIe gas and steam turbine control systems. Operating as a critical link within the excitation subsystem, this board regulates, monitors, and delivers stable, highly filtered DC power to the crucial sensor circuits, control arrays, and gate drive modules responsible for overall generator excitation management.
Product Datasheet
- Model Number: IS200EPSMG2AEC
- Series: Mark VI / Mark VIe Control Systems
- Manufacturer: General Electric (GE)
- Product Type: Excitation Power Supply Board
- Input Voltage Range: Standard industrial nominal control voltages
- Dimensions: 180 mm x 45 mm x 220 mm
- Weight: 0.92 kg
- Country of Origin: United States
- Hardware Revision: G2AEC (Indicates specific functional coating and updated layout configurations)

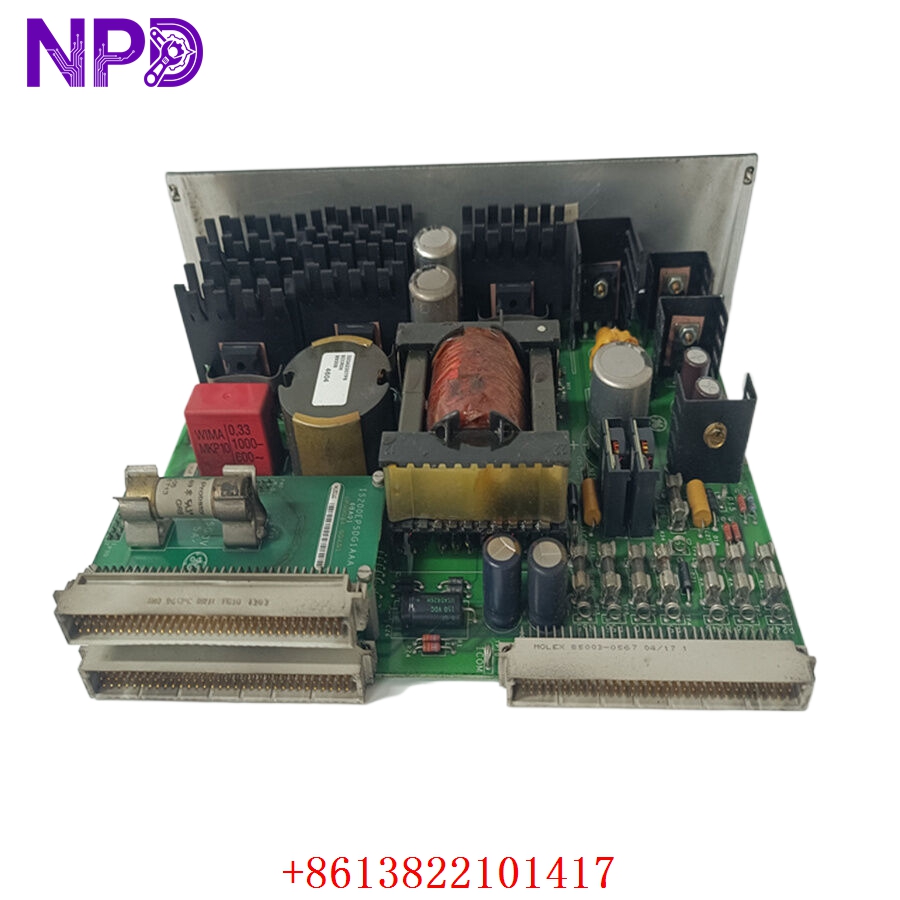

GE IS200EPSMG2AEC

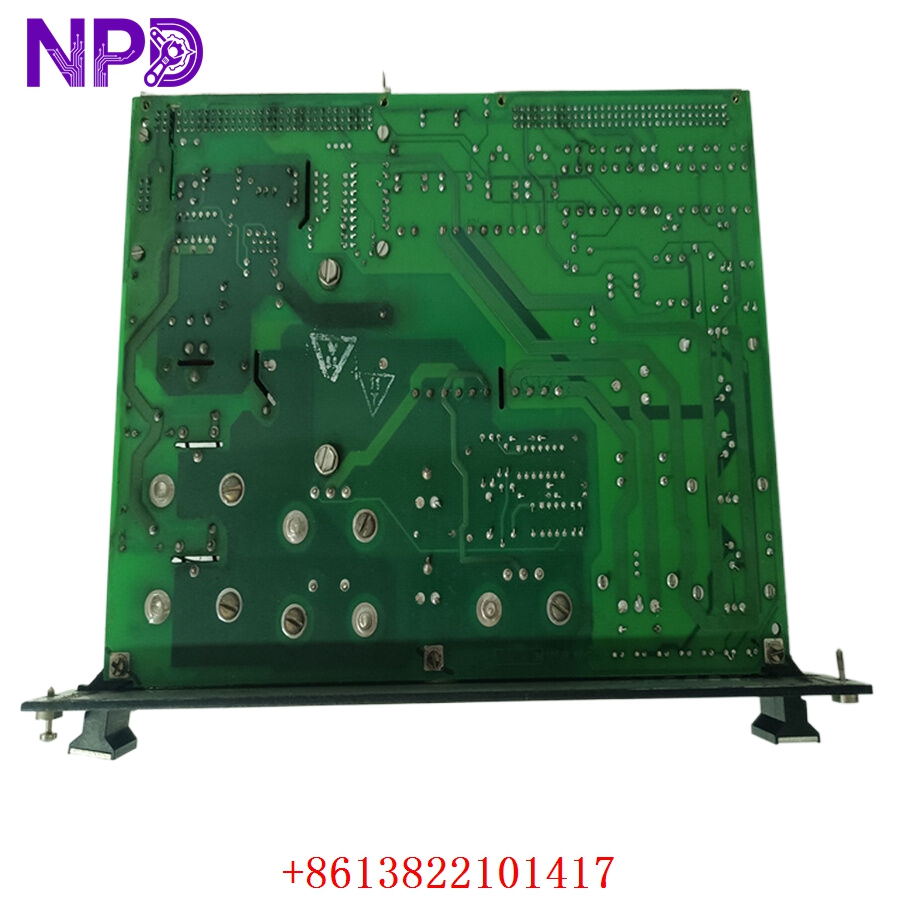

GE IS200EPSMG2AEC

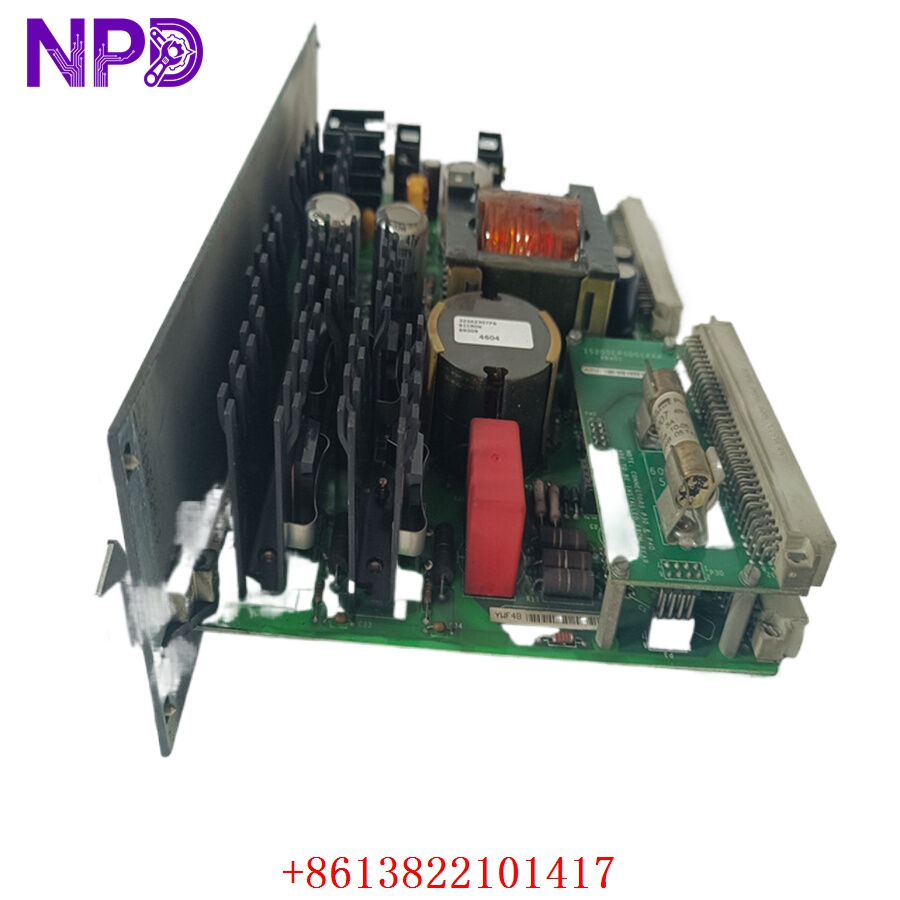

GE IS200EPSMG2AEC
Application Fields
This power supply module is exclusively utilized in heavy-duty turbine and generator control applications where system downtime can cause widespread grid disruption. Critical sectors include:
- Thermal Power Plants: Providing steady excitation power control for large-scale steam turbine generator networks.
- Combined Cycle Power Generation: Supporting Mark VIe control panels regulating high-output gas turbines.
- Nuclear Power Control Subsystems: Serving in auxiliary diagnostic and power distribution layers where high reliability is mandatory.
- Industrial Co-generation Facilities: Powering local generator controls in massive chemical or steel processing complexes.
Product Instructions
To guarantee continuous operation and protect sensitive internal power electronics, execute the following deployment steps:
- Anti-Static Countermeasures: This module contains components highly vulnerable to electrostatic discharge (ESD). Always wear an approved, grounded wrist strap before extracting the board from its protective packaging.
- Chassis Slot Alignment: Carefully align the edges of the card with the guide rails in the dedicated Mark VI/VIe control rack. Slide the module backward smoothly until the backplane connectors are completely seated.
- Retaining Fasteners: Secure the faceplate thumbscrews to the frame to prevent vibration-induced movement and to establish a secondary chassis ground path.
- Initial Diagnosis: Upon applying primary panel power, verify that the integrated diagnostic status LEDs illuminate in the correct sequence, indicating that internal voltage rails are stable and no ground faults exist.
Questions and Answers
Q: What is the significance of the “AEC” suffix at the end of the IS200EPSMG2AEC part number? A: The letters designate the exact revision history of the board. “AEC” represents a specific combination of firmware compatibility updates, component-level optimizations, and environmental ruggedization layers applied during factory production.
Q: Can this module be swapped while the turbine control system is actively running? A: Power supply configurations vary by rack design (redundant vs. non-redundant setups). It is critical to consult the specific turbine operational manual before removing an active power module to prevent triggering an emergency trip event.
Q: What do the onboard diagnostic LEDs indicate during normal operation? A: The LEDs provide a visual readout of module health, showing status conditions such as primary input power availability, proper secondary voltage output levels, and internal temperature or overcurrent faults.
Q: How can I check lead times or request a price quote for this particular board? A: To verify current warehouse availability, warranty terms, or to place an immediate order for the GE IS200EPSMG2AEC, please reach out directly through our centralized procurement portal.
