Description
The GE IS200ERDDH1ABA is a specialized Excitation Relay Output Driver Board developed by General Electric for the Speedtronic Mark VI turbine control and EX2100 excitation systems. This board serves as a rugged hardware interface between low-voltage digital control logic and high-power field actuators, utilizing electromagnetic relays to switch critical auxiliary control and alarm circuits.
- Manufacturer: GE Industrial Systems / General Electric
- Product Line: Speedtronic Mark VI / EX2100
- Model Number: GE IS200ERDDH1ABA
- Functional Variant: ERDD (Excitation Relay Output Driver Board)
- Hardware Revision: H1ABA (Indicates primary execution layout with specific component configurations)
- Number of Relays: Form-C contact configurations for reliable signal routing
- Contact Current Rating: Designed for high-capacity industrial switching duty
- Coating Style: High-grade industrial conformal coating for moisture, chemical, and dust resistance
- On-Board Diagnostics: Embedded sensing circuitry to monitor individual coil continuity and loop status
- Interface Connectors: Heavy-duty pluggable terminal strip connections and multi-pin ribbon cable inputs
- Dimensions: Standard Mark VI rack-mountable dimensions approx. 11.2 x 7.4 x 1.2 inches
- Weight: 1.65 lbs (0.748 kg)
- Country of Origin: United States (USA)

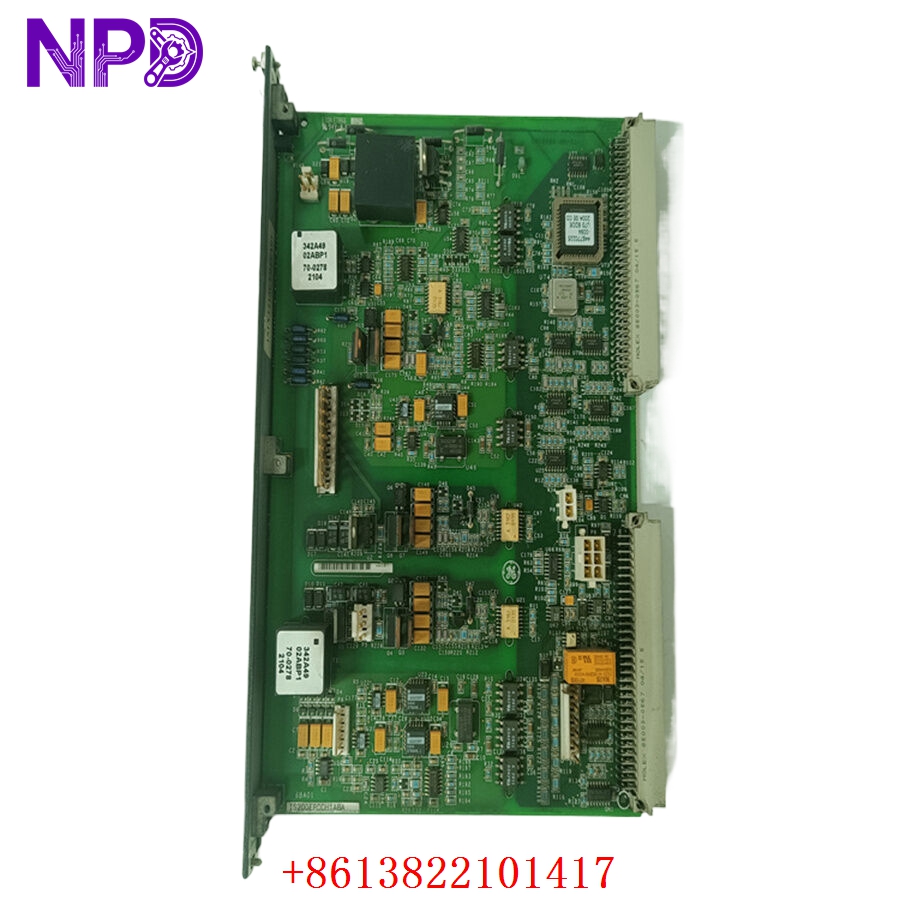

GE IS200ERDDH1ABA

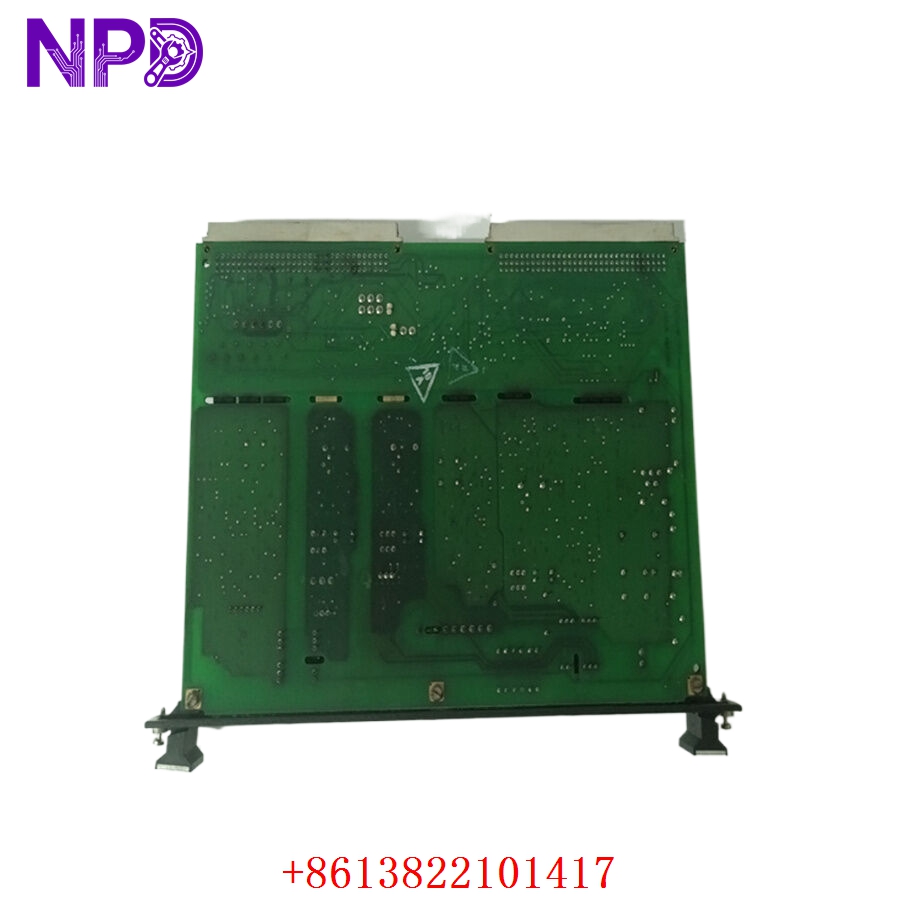

GE IS200ERDDH1ABA
GE IS200ERDDH1ABA
GE IS200ERDDH1ABA
Target Applications
This relay output driver board is deployed primarily in demanding power generation and critical mechanical drive applications. Common integration areas include:
- Main gas and steam turbine safety trip and interlock systems
- EX2100 generator excitation control and field breaker sequencing
- Industrial alarm annunciation panels and emergency shutdown loops
- Heavy-duty solenoid valve and auxiliary motor starter driving
- Balance of Plant (BOP) control sub-systems within large utility stations
Operating Instructions and Safety Guidelines
- Always treat this board as highly sensitive to Electrostatic Discharge (ESD); ensure a proper grounding wrist strap is worn and verified during any handling or inspection steps.
- De-energize all primary rack power sources and field-side wetting voltage lines before inserting, removing, or wiring the module to avoid high-voltage arcing.
- Verify that the total load current on each relay channel falls strictly within the specified limits to prevent premature contact welding or degradation.
- Route all inductive load wiring with appropriate external suppression devices, such as flyback diodes or RC snubber networks, to minimize electromagnetic interference and contact wear.
Frequently Asked Questions
- Q: What is the main purpose of the ERDD board in a Mark VI system? A: It interprets low-voltage command signals from the main control processors and uses heavy-duty on-board relays to isolate and switch high-power external field circuits safely.
- Q: Can this board be used in non-excitation Mark VI applications? A: While engineered specifically with the electrical characteristics required for EX2100 excitation control lines, it can interface with standard Mark VI control backplanes supporting ERDD card profiles.
- Q: How does the system determine if a relay coil has failed on the IS200ERDDH1ABA? A: The board includes comprehensive diagnostic feedback circuits that measure the operational status of the relay coils, instantly sending a fault signal to the master processor if a discontinuity is found.
