Description

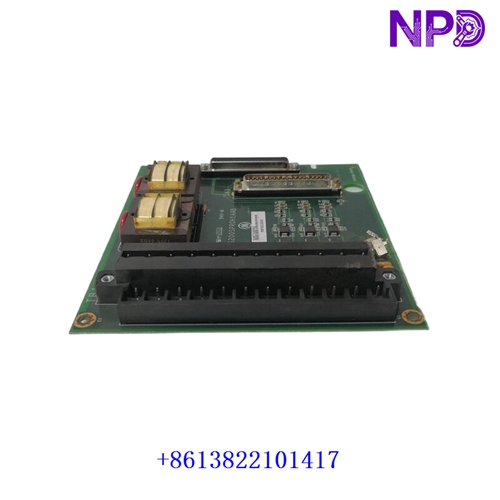

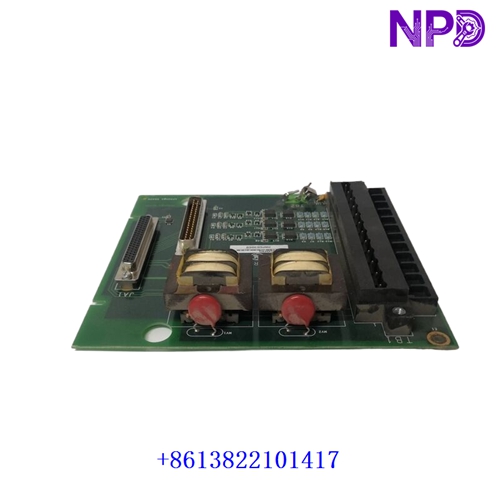

The GE IS200SPROH1AAB (also referenced by part number MRP663860) is a Simplex Protection Module engineered for Mark VI and Mark VIe distributed control systems used in heavy-duty gas and steam turbine management. Below are the core technical parameters governing its physical and operational characteristics:
- Brand: General Electric (GE)
- Model: IS200SPROH1AAB / MRP663860
- Series: Mark VI / Mark VIe Control Line
- Product Name: Simplex Protection Module
- Origin Country: United States
- Physical State: Solid State Printed Circuit Board Assembly
- Dimensions: Standard Mark VIe rack-mountable card format
- Weight: Approx. 0.4 kg
- Place of Manufacture: GE Industrial Automation Manufacturing Facilities
- Power Requirement: Internal bus powered via controller rack power distribution
► Operation Specifications & Usage Methods
Proper integration and initialization ensure high reliability in critical turbine safety and protection loops:
- Ensure all rack power supplies are completely isolated before installing or extracting the protection board.
- Insert the module smoothly into its designated slot within the VME rack, ensuring proper backplane alignment without mechanical stress.
- Configure protection parameters, trip thresholds, and communication links through the ToolboxST application software prior to live system startup.
⚠ Emergency Shutdown Operation
In the event of an overspeed condition, critical turbine fault, or emergency plant trip, execute the following protocol:
- The module is designed to autonomously initiate protective trip sequences when hazardous conditions are detected by connected sensors.
- For manual emergency shutdowns, activate the master hardwired trip circuit to immediately sever fuel flow and shut down the turbine.
- Notify the plant engineering team and check system event logs via ToolboxST before attempting any reset or restart.
⚙ Troubleshooting & Common Issues
System diagnostics and LED indicators help isolate and resolve operational faults efficiently:
- If the module fails to boot or indicate ready status, inspect backplane connector pins for dust, corrosion, or bent contacts.
- For configuration mismatches, verify that the module hardware revision matches the software project settings in ToolboxST.
- If diagnostic fault codes appear, review the controller error logs to check internal power rail stability and voting circuit health.
🛠 Routine Maintenance & Servicing
Preventative maintenance ensures prolonged equipment reliability in demanding industrial environments:
- Conduct periodic visual inspections of control cabinet cooling fans and cabinet air filters to prevent thermal overloads.
- Check mounting latches and backplane connections periodically to ensure no loosening occurs due to heavy turbine vibration.
- Back up system configuration files and parameters regularly to facilitate rapid replacement during lifecycle maintenance.
❓ Frequently Asked Questions (Q&A)
- Q1: What is the primary function of the IS200SPROH1AAB module?
- A1: It functions as a Simplex Protection Module responsible for monitoring safety-critical inputs and executing overspeed or emergency trip functions in GE turbine control systems.
- Q2: Which control system series uses this module?
- A2: It is specifically designed for integration within the GE Mark VI and Mark VIe distributed control architectures.
- Q3: Can this module be hot-swapped while the turbine is running?
- A3: Hot-swapping safety-critical protection cards is strictly restricted during live operation unless authorized by specific plant safety protocols and redundancy guidelines.
