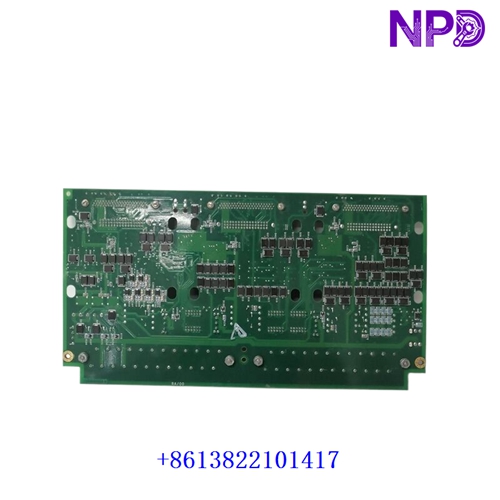

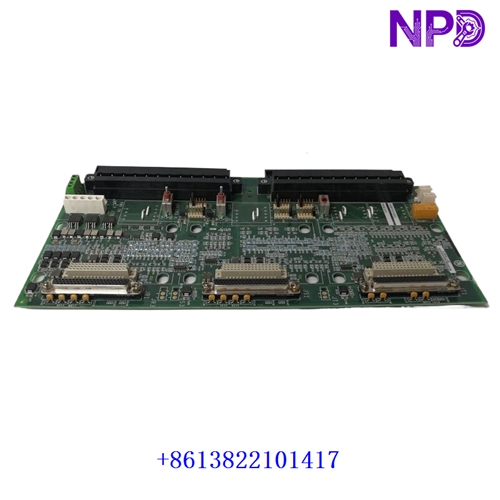

GE IS200TSVCH2ADC | MRP061873 | Terminal Board

Description

Product Specifications & Datasheet

• Brand: GE (General Electric)
• Model: IS200TSVCH2ADC (MRP061873)
• Series: Mark VI / Mark VIe Control System Series
• Product Name: Servo Control Terminal Board
• Place of Origin: United States
• Lifecycle Status: Active / Industrial Gas & Steam Turbine Spare Part
• Dimensions: Standard Mark VI Rack-Mount Form Factor
• Weight: 0.85 kg
• Origin Country: USA
• Power Rating: Low-Voltage Control Bus Powered

Operating Procedures & Usage Guidelines

• Pre-Installation Check: Ensure all turbine control cabinet power supplies and hydraulic supply loops are locked out and tagged out before handling the terminal board.
• Mounting & Placement: Securely mount the board inside the designated turbine control enclosure using the provided mounting standoffs and fastening screws.
• Wiring & Termination: Connect field sensor cables, LVDT feedback lines, and servo-valve control wiring to the appropriate screw terminal blocks, ensuring correct polarity.
• System Verification: Restore control power and check the ToolboxST application software to confirm that the board and its connected servo channels register active, error-free status.

Emergency Shutdown Operation

• Emergency Trip Activation: Engage the hardware emergency trip circuit or master turbine trip signal to immediately vent hydraulic pressure and close fuel valves.
• Power Isolation: Open the primary control circuit breakers feeding the turbine panel if complete electrical isolation of the terminal board is necessary.

Troubleshooting & Common Issues

• Servo Response Error: Verify that LVDT feedback wiring and terminal connections are tight and free of signal degradation or electrical noise.
• Communication Fault: Inspect the internal cable connections linking the terminal board to the corresponding Mark VI I/O processor pack.
• Unstable Valve Positioning: Check terminal block screw torque and verify that cable shields are properly grounded to the cabinet ground bar.

Routine Maintenance & Care

• Terminal Inspection: Periodically check all screw terminals and plug-in connectors to ensure vibrations from heavy turbine operation have not caused loose connections.
• Cabinet Climate Control: Monitor enclosure air filters and internal cooling fans to protect the electronics from excessive heat and dust accumulation.
• Diagnostic Audits: Routinely review system diagnostic logs through the software interface to track hardware health and pin down intermittent anomalies early.

Frequently Asked Questions (Q&A)

• Q: What is the primary function of the GE IS200TSVCH2ADC terminal board?
  • A: It interfaces field-level servo-valves and LVDT feedback sensors with the Mark VI or Mark VIe turbine control system architecture.
• Q: Can this terminal board be serviced while the turbine is running?
  • A: No, maintenance on critical turbine control hardware must be performed during scheduled shutdowns with systems de-energized.
• Q: What software is used to configure and monitor this board?
  • A: GE’s ToolboxST software suite is utilized for configuring, calibrating, and diagnosing Mark VI/VIe control components.
