Description

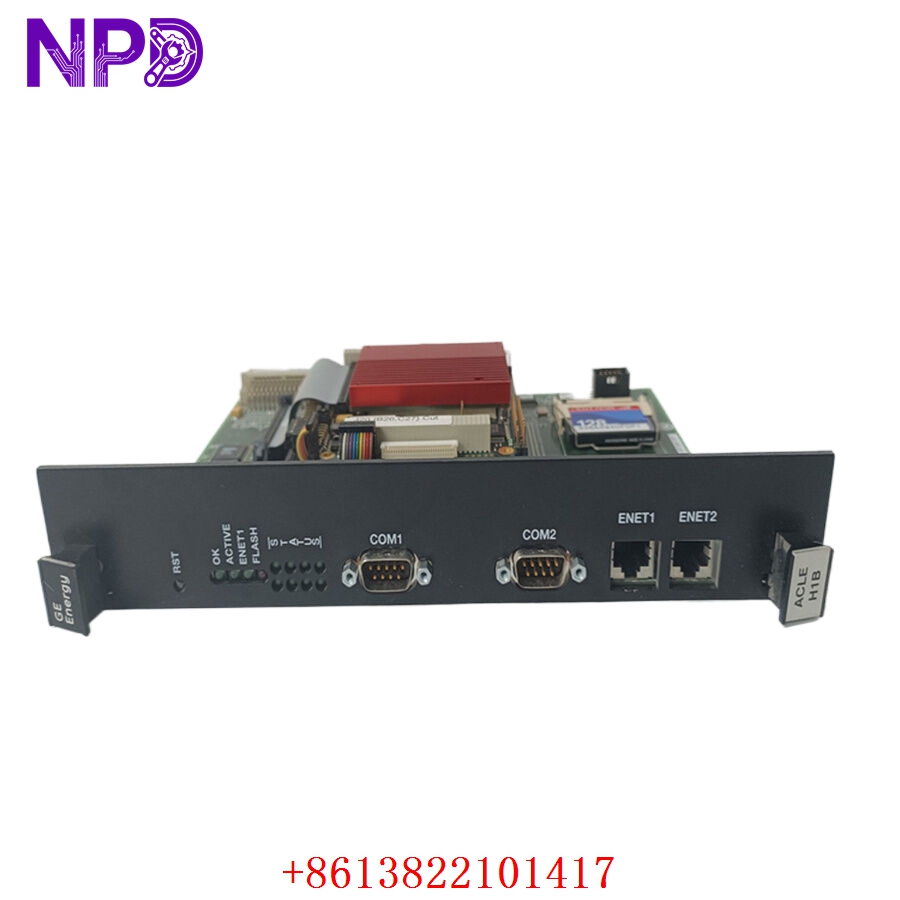

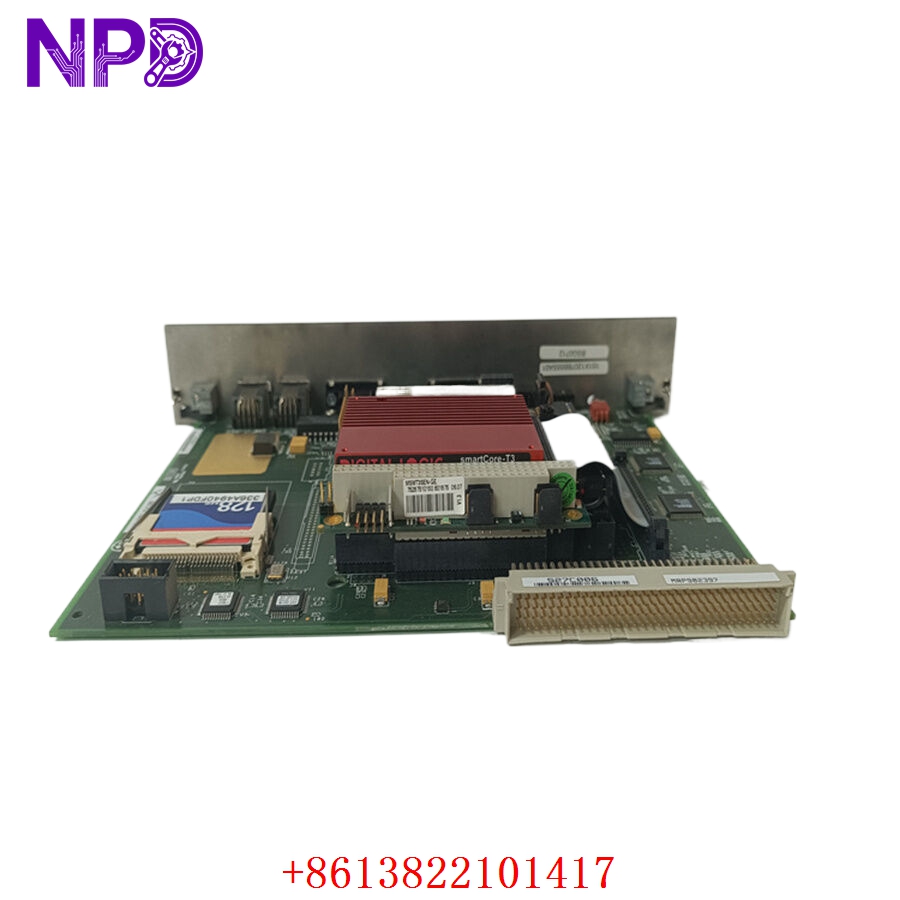

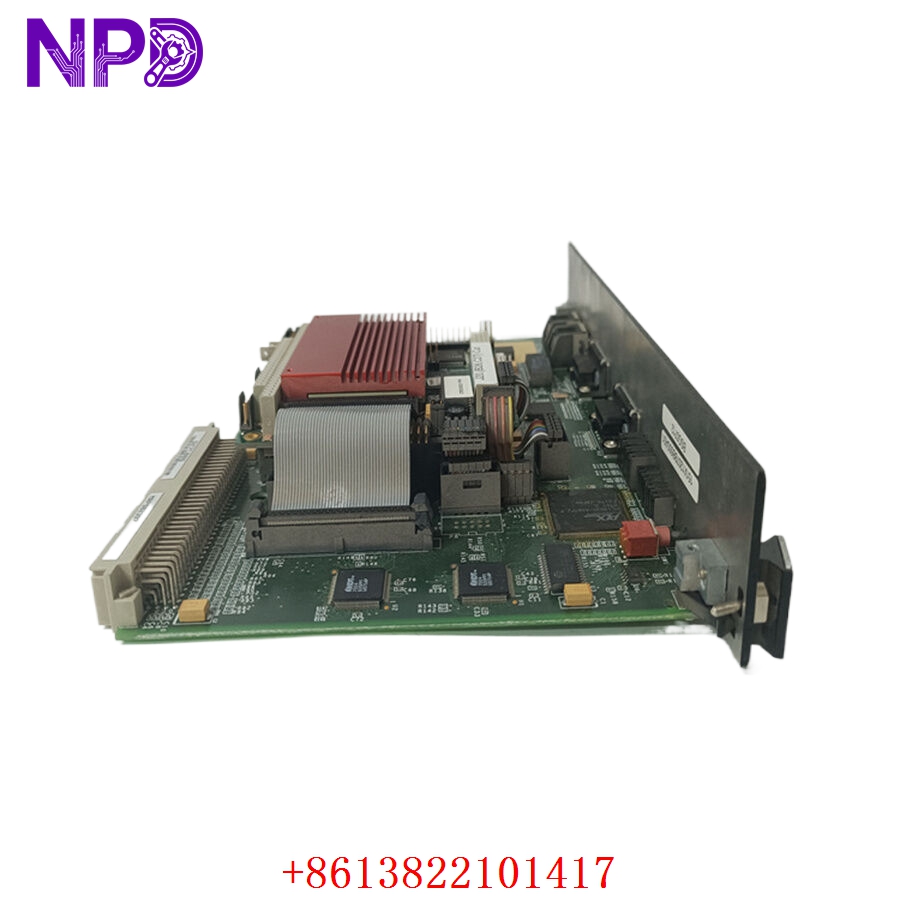

The GE IS215ACLEH1BB is an Application Control Layer Controller Board designed by General Electric for the Speedtronic Mark VI turbine control system and the EX2100 excitation control system. Serving as the primary computational hub for the control rack, this module executes complex mathematical logic, manages high-speed internal communication networks, and interfaces directly with various application-specific peripheral cards like Digital Signal Processors (DSPX) to coordinate industrial turbine systems.
- Manufacturer: GE Industrial Systems / General Electric
- Product Line: Speedtronic Mark VI / EX2100
- Model Number: GE IS215ACLEH1BB
- Functional Variant: ACLE (Application Control Layer Controller Board)
- Processor Architecture: High-speed embedded industrial microprocessor
- On-Board Interfaces: Local area network (LAN) ports, high-speed backplane connections, and diagnostic serial communication ports
- Memory Architecture: Non-volatile flash storage for application logic and high-capacity RAM for real-time variables
- Faceplate Display: Multi-character diagnostic scrolling display for error codes and system heartbeat monitoring
- Module Form Factor: Standard Mark VI single-slot card layout
- Dimensions: 11.2 x 7.4 x 1.2 inches
- Weight: 1.30 lbs (0.590 kg)
- Country of Origin: United States (USA)
GE IS215ACLEH1BB
GE IS215ACLEH1BB
GE IS215ACLEH1BB
Target Applications
This application control layer board acts as the central processor for critical heavy machinery networks. Main industrial environments include:
- Combined cycle power plants running gas or steam turbines
- Thermal power generation and generator excitation management
- Large-scale pipeline compressor stations for oil and gas transit
- Marine propulsion system synchronization and power optimization
- Synchronous motor control systems and dynamic brake sequencing
Operating Instructions and Safety Guidelines
- This controller card utilizes static-sensitive components. Maintain strict Electrostatic Discharge (ESD) protocols, including wearing an anchored grounding wrist strap, during installation or inspection.
- Do not attempt to hot-swap or pull the board from the rack while the backplane power supply is actively energized to prevent memory corruption or electrical shock to the processor chip.
- Securely tighten the top and bottom captive screws on the faceplate assembly to guarantee correct alignment with the backplane connectors and ensure solid grounding to the panel chassis.
- Periodically check the cooling fan pathways and surrounding temperature parameters to avoid thermal throttling, as this high-performance card demands free airflow inside the enclosure.
Frequently Asked Questions
- Q: What is the primary role of the IS215ACLEH1BB compared to regular I/O boards? A: The ACLE card does not directly interact with field instrumentation. Instead, it functions as the central logic unit that processes the control code, runs algorithms, and coordinates data flow between peripheral modules.
- Q: What do the letters BB at the end of the part number represent? A: The “BB” suffix indicates the hardware revision level. This denotes specific factory optimizations and internal component layouts while maintaining backward functional compatibility with earlier variants.
- Q: How can technicians view real-time diagnostic codes on the board? A: The front panel features an embedded alphanumeric diagnostic display that outputs system fault data, boot sequence statuses, and network connectivity states directly without external software tools.
