Description
- Model: GE IS215UCVEH2AE (Associated with VMIVME-7614-132350-01)
- Brand: General Electric (GE) / VME Microsystems (VMIC)
- Series: Speedtronic Mark VI
- Core Function: Main controller/processor board for the Mark VI turbine control system
- Product Type: VMEbus Single Board Computer (SBC)
- Key Specs: Intel Celeron/Pentium Processor Dual Ethernet VME64 Interface

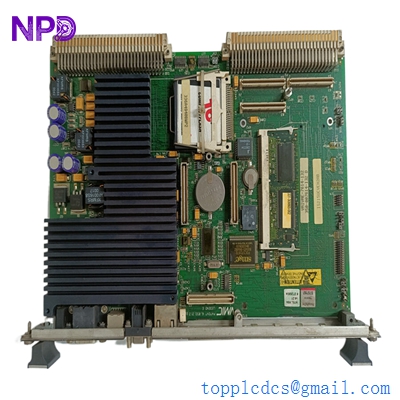

GE IS215UCVEH2AE VMIVME-7614-132350-017614-132 D
Key Technical Specifications
- Processor: Intel-based architecture (typically 300–400 MHz for the H2AE variant)
- Memory: 64 MB to 128 MB RAM (Model dependent)
- Flash Storage: 8 MB to 32 MB onboard flash
- Ethernet Ports: 2 x 10/100 Base-TX RJ45 ports (IONet communication)
- VME Interface: Standard VME64 compliance
- Serial Ports: 2 x RS-232 COM ports (for diagnostic/ControlSystem toolbox)
- PMC Slots: 1 x PCI Mezzanine Card slot for expansion
- Operating System: Typically runs QNX or VxWorks (Embedded)
- Power Consumption: Approx. 25 W at 5 VDC
- Form Factor: 6U VME slot height
Application Scenarios & Pain Points
In the world of power generation, the UCVE board is the “brain” of the Mark VI rack. If this board hangs or fails to boot, your gas or steam turbine is effectively blind. I’ve been on sites where a failed UCVE meant a 500 MW block stayed offline during peak demand. Because these are VME-based, they are sensitive to seated connections and backplane integrity. When you’re dealing with the IS215UCVEH2AE, you aren’t just buying a circuit board; you’re buying the ability to synchronize your turbine to the grid.
Typical Application Scenarios:
- GE Gas Turbine Control (Frame 6, 7, 9) Acts as the primary controller (R, S, or T processors) in a TMR (Triple Modular Redundant) system, calculating fuel strokes and nozzle positions in real-time.
- Steam Turbine Control Managing overspeed protection and valve actuation where sub-10ms logic execution is mandatory for safety.
- Combined Cycle Power Plants (CCPP) Coordinating the balance of plant (BOP) logic through high-speed IONet communication with distributed I/O packs.
- Industrial Drive Systems Used in large-scale GE motor drive applications that utilize the Mark VI architecture for heavy industrial processes.
Case Study: The “Flash Memory” Nightmare
Background: A utility plant in Southeast Asia had an IS215UCVEH2AE module that would intermittently fail to boot after a scheduled maintenance power-down.
The Problem: The diagnostic LEDs showed a “Boot Fail” sequence. After pulling the logs via the COM port, we realized the onboard flash memory was reaching its end-of-life write cycles. The site didn’t have a backup of the specific configuration files stored on the module’s non-volatile memory.
The Solution: We supplied a pre-tested H2AE module from our inventory. Because we know these boards well, we guided their tech through the “ControlSystem Toolbox” to reload the application code. We also helped them verify the jumper settings on the new board to match their rack’s IONet ID.
Result: The turbine was back at FSNL (Full Speed No Load) within 4 hours of the part arriving on site.

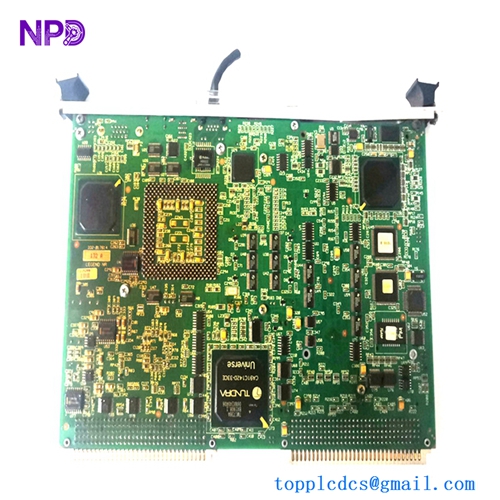

GE IS215UCVEH2AE VMIVME-7614-132350-017614-132 D
Compatible Replacement Models
The UCVE series has several iterations. The suffix (H2AE) is critical for hardware and software compatibility.
| Part Number | Compatibility | Main Difference | Integration Note |
| IS215UCVEH1A | ⚠️ Limited | Lower processor speed | May not handle high-complexity logic |
| IS215UCVEH2AE | ✅ Direct | Match for your current unit | Plug and play after software download |
| IS215UCVEM1A | ❌ Incompatible | Different memory/processor layout | Requires significant Toolbox changes |
Troubleshooting Quick Reference
| Status LED / Symptom | Possible Cause | Relevance | Action |
| “FAIL” LED Solid Red | Kernel Panic / HW Failure | ✅ High | Check 5V/12V rails. If stable, replace UCVE. |
| Ethernet LEDs (LNK) Off | IONet Cable/Switch | ⚠️ Medium | Swap RJ45 cable; check the IONet switch port. |
| Seven-Segment Display “8” | Boot Stuck | ✅ High | Connect laptop to COM1; check for “Flash Not Found” error. |
| Intermittent Reboots | Backplane Noise / Heat | ⚠️ Medium | Clean VME pins with contact cleaner; check rack fans. |
Technical SOP & Quality Guarantee
The IS215UCVEH2AE is a sophisticated computer, not just a simple I/O card. Our testing process reflects that:
- Backplane Stress Test: We install the module in a GE Mark VI rack and run it for 48 hours under simulated load.
- Communication Audit: We verify both Ethernet ports (IONet) can sustain high-speed data transfer without packet loss.
- Battery/NVRAM Check: We test the CMOS battery voltage. If it’s below 3.0V, we replace it so you don’t lose your BIOS settings on the next power cycle.
- Version Verification: We document the BIOS and firmware versions so you know exactly what you’re putting into your system.
A quick “Pro-Tip” from the field: When you pull the old UCVE out, check the VME backplane pins for any signs of “pitting” or blackening. A bad power supply in the rack can arc across the pins, and putting a brand-new $5,000 controller into a bad backplane is a very expensive way to find out your rack is faulty!
