Description
- Model: GE IS215UCVEH2AE (Equivalent to VMIVME-7614-132)
- Brand: General Electric (USA) / GE Vernova
- Series: Mark VI Speedtronic Control System
- Core Function: Main VME-based controller/processor for turbine logic execution
- Product Type: VME single-slot CPU board
- Key Specs: Intel-based processor | 128 MB RAM | Dual Ethernet ports | VMEbus interface
- Processor Type: Intel Celeron / Pentium class (Platform specific)
- Memory Configuration: 128 MB SDRAM
- Flash Storage: 32 MB to 64 MB On-board Flash
- Interface circuit board: 6U VME64 Standard
- Communication Ports: 2x 10/100 Base-T Ethernet (COM1/COM2)
- Serial Ports: 2x RS-232 Ports (RJ-45 or DB9 via adapter)
- Front Panel Indicators: Run, Fail, Status, and Ethernet Link LEDs
- Bus Master: Supports VMEbus Master/Slave modes
- Operating System Compatibility: Specifically pre-configured for GE Mark VI ControlST / Toolbox
- Power Consumption: Approx. 15-20 W depending on load

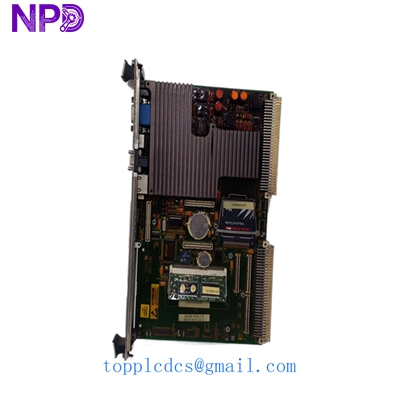

GE IS215UCVEH2AE VMIVME-7614-132
Application Scenarios & Pain Points
The IS215UCVEH2AE (and its VMI equivalent VMIVME-7614-132) is the “brain” of a GE Mark VI system. While the I/O cards handle the signals, this CPU executes the heavy lifting—the PID loops, the protection logic, and the communication to the HMI. When a UCVE card fails, the controller goes “Off-line,” and in a non-redundant system, the turbine trips immediately.
Typical Application Scenarios:
- Gas Turbine Master Control Running the primary control loops for Frame 6, 7, or 9 turbines, ensuring the fuel-to-air ratio is perfect during load changes.
- DCS Integration Acting as the gateway between the Speedtronic rack and the plant-wide Distributed Control System via Ethernet (UDH/PDH networks).
- Legacy System Retrofits Replacing older UCVD or UCVE revisions to improve processing speed and communication stability without changing the entire backplane.
The “Ghost in the Machine” Case:
A power station in Southeast Asia reported intermittent “Processor Reset” alarms on their #2 Unit. The system would run fine for weeks, then randomly reboot, causing a 5-minute loss of HMI data. After checking the power supply modules, the site engineers realized the SRAM on the original IS215UCVEH2AE was failing under high ambient temperatures.
Because we keep the VMIVME-7614-132 in stock, they were able to swap the card during a planned 8-hour outage on Sunday. By using our tested spare, they avoided a potential “Unplanned Trip” that could have cost the utility over $200,000 in grid penalties.

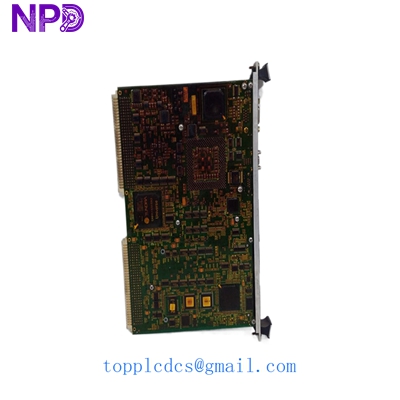

GE IS215UCVEH2AE VMIVME-7614-132
Compatible Replacement Models
When sourcing a UCVE controller, compatibility is everything. The IS215UCVEH2AE has several siblings in the Mark VI family.
| Original Model | Replacement Model | Compatibility | Key Difference | Change Required |
| IS215UCVEH2AE | VMIVME-7614-132 | ✅ Direct | VMI OEM version | None (Drop-in) |
| IS215UCVEH2AE | IS215UCVEH2AF | ✅ Direct | Minor hardware revision | None |
| IS215UCVG | IS215UCVE | ⚠️ Software | Newer processor gen | Re-configure in Toolbox |
| IS215UCVD | IS215UCVE | ❌ Hardware | Older architecture | Not recommended without full audit |
Troubleshooting & Technical Tips
❗ Engineering Warning: Flash Memory Transfer Replacing a IS215UCVEH2AE isn’t just about the hardware. The control software (the .TCFG or .ST file) resides on the Flash memory. If you swap the board, you must download the application code from your GE Toolbox workstation to the new card before it will go to “RUN” mode.
Common Failure Modes:
| Symptom | Potential Root Cause | Board Relation | Quick Check |
| “FAIL” LED (Red) | Hardware Self-Test Failure | ✅ High | Check diagnostic buffer via serial port (COM1). |
| Ethernet Link Down | Port/PHY Failure | ✅ High | Swap network cable; check if other port works. |
| “Status” Blinking | Waiting for Software Download | ⚠️ Medium | Connect Toolbox and verify “Target” status. |
The “Old-Timer” Advice: “Listen, before you pull that UCVE card, make sure you have a current backup of the configuration. I’ve seen guys swap boards only to realize the ‘latest’ backup on the workstation was three years out of date. Also, keep the DIP switch settings identical to the old card. If you don’t, your IP address might not initialize correctly, and you’ll be locked out of your own rack.”
GE IS215UCVEH2AE VMIVME-7614-132
Quality Control & SOP Transparency
We know that a “Dead on Arrival” CPU is a nightmare during a shutdown. Our test process for the IS215UCVEH2AE is rigorous:
- VME Backplane Test: We seat the card in a GE Mark VI rack and verify that it completes its POST (Power-On Self-Test) without a red “FAIL” LED.
- Ethernet Handshake: We ping both COM1 and COM2 ports to ensure the Intel Ethernet controllers are communicating at full 100 Mbps speed.
- SRAM/Flash Verification: We run a memory test utility to ensure there are no “bad blocks” in the 128 MB RAM or the 32 MB Flash storage.
- Serial Port Comms: We verify the RS-232 diagnostic port output to ensure we can see the bootloader sequence.
- Cleanroom Packing: The card is cleaned with compressed air, placed in a high-shielding anti-static bag, and double-boxed for international transit.
