Description
- Model: IS215UCVGM06A (Base board: VMIVME-7666-111000)
- Brand: General Electric (GE)
- Series: Speedtronic Mark VI
- Core Function: VMEbus Single Board Computer (SBC) for turbine control processing
- Product Type: Controller CPU Module (New Surplus)
- Key Specs: Intel Pentium III based | 6U VME form factor | Dual Ethernet | PMC Expansion

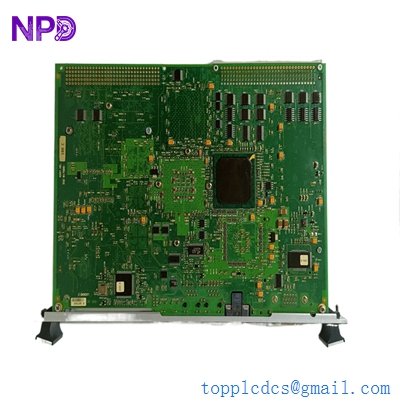

GE IS215UCVGM06A IS215UCVGH1A VMIVME-7666-111000
Key Technical Specifications
- Module ID: IS215UCVGM06A / IS215UCVGH1A
- Base Platform: VMIVME-7666 series (Intel architecture)
- Microprocessor: Intel Pentium III (typically 700 MHz – 1 GHz range)
- Memory: 128 MB or 256 MB SDRAM (Revision dependent)
- VME Specification: 6U height, VME64 compliant
- Communication: 2x 10/100BaseTX Ethernet ports (RJ-45) for IONet/Control connectivity
- I/O Ports: VGA, COM1/COM2 (RS-232), USB, and PS/2 Keyboard/Mouse
- Expansion Slot: Single PMC (PCI Mezzanine Card) slot for specialized I/O
- Storage: Onboard CompactFlash slot for OS and application software
- Operating System: Typically boots QNX or VxWorks for real-time control
- Revision Status: M06A (Standard) / H1A (High-performance variant)
GE IS215UCVGM06A IS215UCVGH1A VMIVME-7666-111000
Installation & Configuration Guide
Phase 1: Preparation (Pre-Installation)
⚠️ Safety First:
- Notify the control room that the turbine controller will be offline.
- Backup: Ensure you have a current “Master” copy of the control application from the GE <i> Operator Interface </i> (HMI).
- Static Protection: Use a grounded wrist strap. The Pentium III chipset on this board is highly sensitive to ESD.
Phase 2: Removal of Faulty Module
- Port Mapping: Label the Ethernet cables (IONet) and any serial connections. Note which port is used for the HMI connection.
- Handling: Pull both ejector handles (top and bottom) outward simultaneously to unseat the board from the VME backplane.
- Flash Recovery: If the failure was not storage-related, remove the CompactFlash card from the old board to retain the BIOS and IP settings for the new unit.
Phase 3: New Module Installation
- Jumper Verification: Check the jumpers on the IS215UCVGM06A against your original board. These often control the VME slot addressing or serial port modes.
- Insertion: Slide the board into the VME rack. Apply steady pressure until the ejector handles can be pushed inward to lock the board into the backplane.
- Connectors: Reattach all front-panel cables. Ensure the Ethernet “Link” lights are active once power is restored.
Phase 4: Commissioning & Testing
- POST Check: Attach a VGA monitor to see the Power-On Self-Test. If the board hangs at the BIOS screen, check the CompactFlash seating.
- Toolbox Download: Open the GE <i> Control System Toolbox </i>. Connect to the controller and perform a “Validate and Download” to ensure the logic matches the rest of the TMR (Triple Modular Redundant) set.
- Redundancy Sync: If in a TMR system, verify that the new controller transitions to the “Equalize” state and eventually to “Running.”
GE IS215UCVGM06A IS215UCVGH1A VMIVME-7666-111000
Customer Cases & Industry Applications
Case 1: Steam Turbine Controller Recovery (TMR System)
Situation: A utility plant in Europe running a GE Frame 6B gas turbine experienced a “Core Fault” in the R-core of their Mark VI system. The IS215UCVGM06A processor had developed a memory parity error, leaving the system running in a “Voter Disagreement” state.
Task: While the turbine was still running on the S and T cores, the loss of redundancy meant that any further fault would cause an immediate total plant trip. The plant could not wait for the standard 10-week factory lead time for a replacement.
Action: We provided a New Surplus IS215UCVGH1A from our stock. Because we maintain “shelf-ready” units, the board was shipped the same day and arrived at the site via DHL Express within 48 hours.
Result: The onsite tech swapped the board during a brief “window of opportunity” while the system was online (following GE’s hot-swap protocols). Redundancy was restored, and the plant avoided a potential $400,000 unplanned outage.
Case 2: Avoiding Expensive Migration in a Paper Mill
Situation: A large paper mill used the Mark VI platform to manage its onsite co-generation plant. The VMIVME-7666 base boards were nearing 20 years of service. GE recommended a full migration to Mark VIe, which carried a $1.2 million price tag.
Task: The mill’s maintenance budget was tight. They needed to extend the life of the Mark VI for another 5 years until the planned boiler replacement. They required “zero-hour” parts to ensure reliability, not used components.
Action: We supplied a strategic set of IS215UCVGM06A processors. Being New Surplus, these boards had no thermal degradation compared to “pulled” parts from eBay or secondary brokers.
Result: The mill successfully extended its system life. One of the spares was put into service in 2025 during a lightning-strike event, and it performed perfectly. The ROI on the spares was calculated at 10x compared to the cost of an early system migration.
Frequently Asked Questions (FAQ)
Q: Is the IS215UCVGM06A compatible with the IS215UCVGH1A? A: Generally, yes. The “H1A” is often a higher-spec version (sometimes more RAM or a faster clock speed) of the “M06A.” In a Mark VI VME rack, they are usually interchangeable, but in a TMR system, it is “Best Practice” to keep all three cores (R, S, T) on the same revision to avoid timing jitters.
Q: Why does the board use an Intel Pentium III? Isn’t that obsolete? A: In the consumer world, yes. In the industrial world, the Pentium III is highly valued for its stability and deterministic heat profile. The Mark VI software was specifically compiled for this architecture. Replacing it with a “modern” chip would require a total rewrite of the control logic.
Q: What is the “VMIVME-7666” number on the sticker? A: That is the OEM part number from VMI (the hardware manufacturer). GE buys these boards, applies their own firmware/BIOS, and labels them as IS215UCVG. If you buy a standard 7666 board from a generic IT vendor, it likely won’t have the GE-specific BIOS needed to talk to the Mark VI backplane.
Q: Can you help with the IP address setup? A: Honestly, it is usually easiest to move your old CompactFlash card to the new board. If the card is dead, you will need to use a serial terminal (like Putty) via the COM1 port to enter the QNX boot utility and set the IONet IP. We can provide a step-by-step PDF for this if you need it.
Q: Is this a refurbished board? A: Absolutely not. We specialize in New Surplus. This means the board is in its original GE or VMI packaging and has never been used in a live system. We avoid refurbished CPU boards because the heat cycles of 20 years of operation make them unreliable for critical turbine control.
