📋 Product Datasheet
| Parameter | Specification |
|---|---|
| 🔹 Product Name | Controller Module |
| 🔹 Manufacturer | PLC Industrial Automation |
| 🔹 Product Type | PLC CPU Controller |

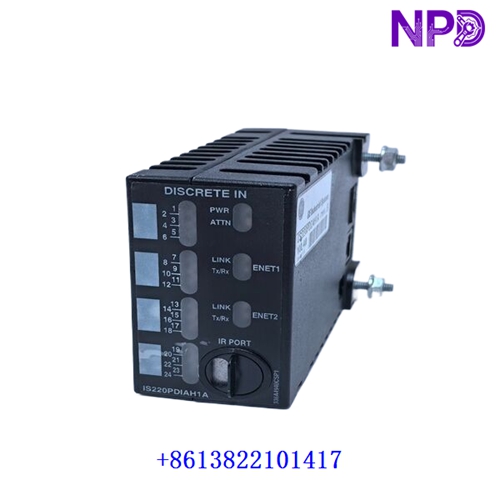

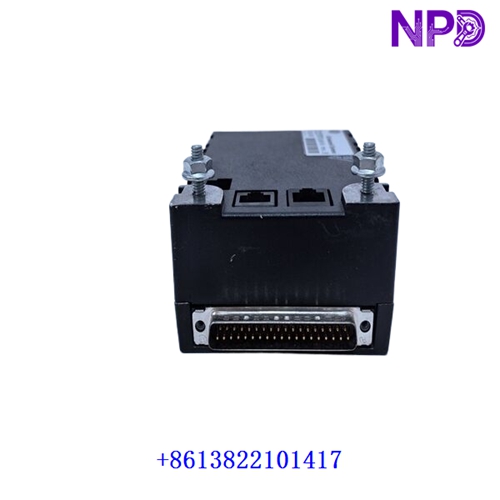

| 🔹 Model Number | IS220PDIAH1A |
| 🔹 Processor Type | Intel Atom E680T |
| 🔹 Processor Frequency | 1.6 GHz |
| 🔹 Additional Processor | Integrated I/O Processor |
| 🔹 Main Memory | 512 MB DDR2 SDRAM |
| 🔹 User SRAM | 1 MB |
| 🔹 Flash Memory | CompactFlash removable application memory |
| 🔹 Floating Point Unit | Integrated FPU |
| 🔹 Minimum Cycle Time | 100 μs task class cycle time |
| 🔹 Ethernet Interface | 1 × Gigabit Ethernet (10/100/1000 Mbps) |
| 🔹 POWERLINK Interface | 1 × POWERLINK V1/V2, 100 Mbps |
| 🔹 RS232 Interface | 1 × RS232 |
| 🔹 USB Interface | 2 × USB 1.1/2.0 Type A |
| 🔹 X2X Link | 1 × X2X Link Master |
| 🔹 Expansion Slot | 1 × Modular interface expansion slot |
| 🔹 Power Supply | 24 VDC (-15% / +20%) |
| 🔹 Power Consumption | Approx. 9.7 W (without interface module and USB) |
| 🔹 Cooling Method | Fanless |
| 🔹 Protection Class | IP20 |
| 🔹 Operating Temperature | Approx. -25°C to +60°C |
| 🔹 Dimensions | Approx. 150 × 99 × 85 mm |
| 🔹 Weight | Approx. 400 g |
| 🔹 Mounting Type | DIN rail mounting |
| 🔹 Country of Origin | USA/Sweden/Norway/Switzerland/Estonia/Germany/Finland |
| 🔹 Application | Industrial PLC Automation, Motion Control, Robotics |
