Description
The GE IS220PVIBH1AL is a high-performance Vibration Monitor I/O Pack designed for the Mark VIe Speedtronic control system. Unlike older termination boards, the PVIB is an “I/O Pack”—a distributed, intelligent controller that mounts directly onto a terminal board to digitize vibration signals at the source.
Product Parameters (Datasheet)
- Model Number: IS220PVIBH1AL
- Product Type: Vibration Monitor I/O Pack
- System Series: Mark VIe / Mark VIeS (Safety)
- Processor: Dual-core processor for high-speed signal sampling and FFT processing
- Input Channels: * 8x Vibration Inputs (Proximity, Seismic, or Accelerometer)
- 2x Keyphasor (Phase Reference) inputs
- Communication: Dual 100 Mbps Ethernet ports (IONet)
- A/D Conversion: 24-bit resolution for high-accuracy sensing
- Operating Temperature: -30°C to +65°C (-22°F to 149°F)
- Redundancy: Supports Simplex, Dual, and TMR configurations via IONet

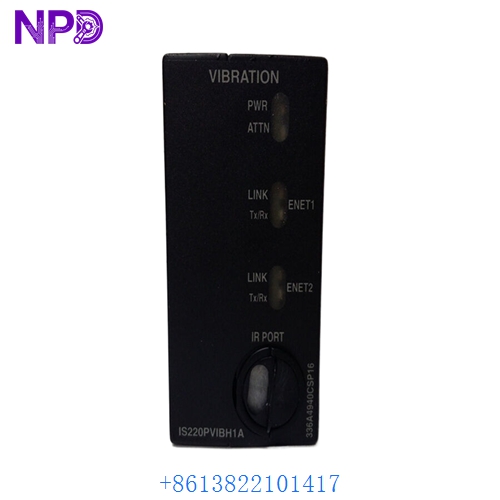

GE IS220PVIBH1AL
GE IS220PVIBH1AL
Country of Origin
This I/O pack is engineered and manufactured by General Electric (GE) in the USA, specifically for critical asset protection in power generation and heavy industry.
Application Fields
The IS220PVIBH1AL is utilized for high-speed machinery protection:
- Gas & Steam Turbines: Continuous monitoring of radial vibration, thrust position, and shell expansion.
- Large Motors & Pumps: Detecting early signs of bearing wear or mechanical imbalance.
- Hydroelectric Units: Tracking shaft run-out and structural vibration.
- Predictive Maintenance: Onboard FFT (Fast Fourier Transform) processing for frequency-domain analysis.
- Safety Systems: Certified for use in SIL-rated turbine protection loops.
Product Usage Instructions
- Mounting: Seat the PVIB I/O pack onto a compatible terminal board (such as the TVBA or SVIB). Secure it using the side mounting screws to ensure the internal high-density connector is fully mated.
- Network Setup: Connect two RJ45 Ethernet cables to the IONet ports. In a Mark VIe system, these connect to the IONet switches to communicate with the central controllers.
- Sensor Configuration: Use the GE ToolboxST software to define the sensor type (e.g., -24V Proximity probe vs. Integrated Accelerometer) for each channel.
- Calibration: Verify the “Gap” voltage for proximity probes through the software interface to ensure the sensor is in the linear range before starting the machine.
- Firmware Sync: Upon installation, the Mark VIe controller will automatically check the PVIB’s firmware. If a version mismatch exists, the controller will push the correct firmware to the pack.
Product Technical Description
Technically, the IS220PVIBH1AL is a decentralized processing node. It performs local digitization and signal processing, including integrated FFT calculations and vibration magnitude extraction (RMS, Peak, or Peak-to-Peak). By processing these complex waveforms locally in the I/O pack rather than the main controller, it reduces network traffic and ensures that safety-critical “Trip” logic is executed with sub-millisecond latency. The “H1AL” revision denotes a specific hardware build with enhanced diagnostic capabilities and a low-smoke, zero-halogen housing.
Q&A (Common Questions)
Q: Can this pack be used without a main Mark VIe controller? A: No, the PVIB is a slave device that requires a Mark VIe controller (like a UCSC or UCSB) and the IONet infrastructure to function.
Q: What is the “Keyphasor” input used for? A: The Keyphasor provides a once-per-revolution pulse. This allows the PVIB to calculate phase angles and synchronous vibration (1X, 2X, etc.), which is vital for balancing and diagnosing shaft cracks.
Q: My “Status” LED is flashing orange. What does this mean? A: A flashing orange LED typically indicates a “Configuration Mismatch” or that the pack is in “Download Mode.” Verify the hardware settings in ToolboxST.
Q: Is the IS220PVIBH1AL compatible with Bently Nevada 3500 sensors? A: Yes, it is designed to interface with standard 3-wire proximity probes and accelerometers, including the Bently Nevada 3300 and 3500 series transducers.
Similar Model Recommendations
- GE IS220PVIBH1A (Base version)
- GE IS220PDIAH1A (Digital Input I/O Pack)
- GE IS220PTURH1A (Turbine Specific I/O Pack)
- GE IS200TVBAH2A (Compatible Termination Board)
- GE IS220PPDAH1B (Power Distribution I/O Pack)
For technical support or to request a quote for the GE IS220PVIBH1AL, please contact our turbine control specialists.
