Description
- Model: IS220UCSAH1A (Functional Class: UCSA)
- Brand: General Electric (GE Energy / Speedtronic)
- Series: Mark VIe Distributed Control System (DCS)
- Core Function: High-speed, embedded control processor that runs real-time turbine application code and coordinates communication across the IONet network.
- Type: Universal Controller Module (Distributed Processing Unit)
- Key Specs: 600 MHz Intel Celeron dual-core processor, QNX real-time operating system (RTOS), 256 MB DDR2 RAM, Triple Redundant IONet Ethernet interfaces, 28 V DC input power supply path.
- Processor Core: Intel 600 MHz Celeron Dual-Core architecture built for deterministic instruction execution
- Operating System Platform: QNX Neutrino real-time operating system (RTOS) providing robust fault isolation and rapid power-cycle boot speeds
- Memory Configuration: 256 MB high-density DDR2 RAM; 128 MB internal solid-state flash memory for local boot storage and application tables
- Network Communications: 3x Fully independent 10/100 Base-TX RJ45 Ethernet connections dedicated to IONet (R, S, and T communication rings)
- Peripheral Connectivity:
- 2x RS-232 serial com ports (DB9 interfaces) supporting Modbus RTU master/slave protocols or diagnostic terminal links
- 2x High-speed USB 2.0 interface ports for direct laptop-driven system configurations
- Redundancy Configurations: Fully configurable to run in Simplex (Single), Dual (Redundant), or TMR (Triple Modular Redundant) voting configurations
- Input Operating Power: 28.0 V DC nominal (Accepts ranges from 24 to 32 V DC) drawn through a dedicated plug-in block terminal
- Cooling Mechanism: Pure passive convection cooling design via an integrated heavy aluminum finned heat sink—no internal cooling fans required
- Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating for reliable defense in high-sulfur or corrosive environments
- Operational Temperature Profile: Certified for ambient operating limits between 0^\circC and +65^\circC inside standard turbine control enclosures

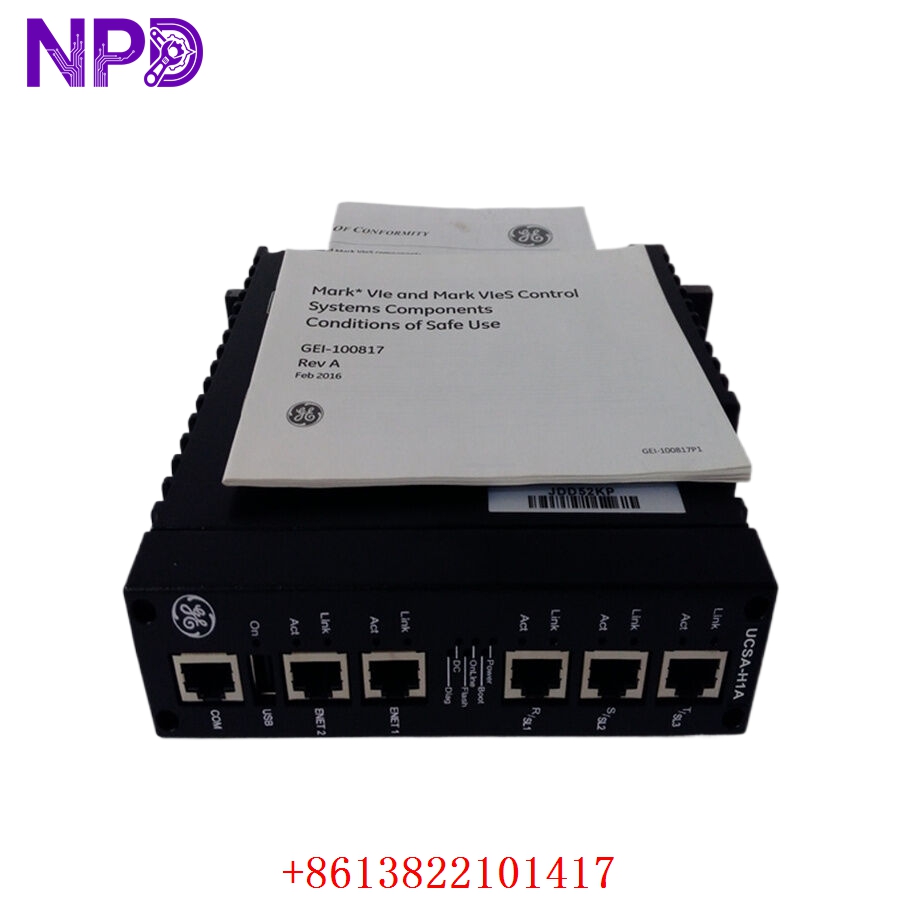

GE IS220UCSAH1A

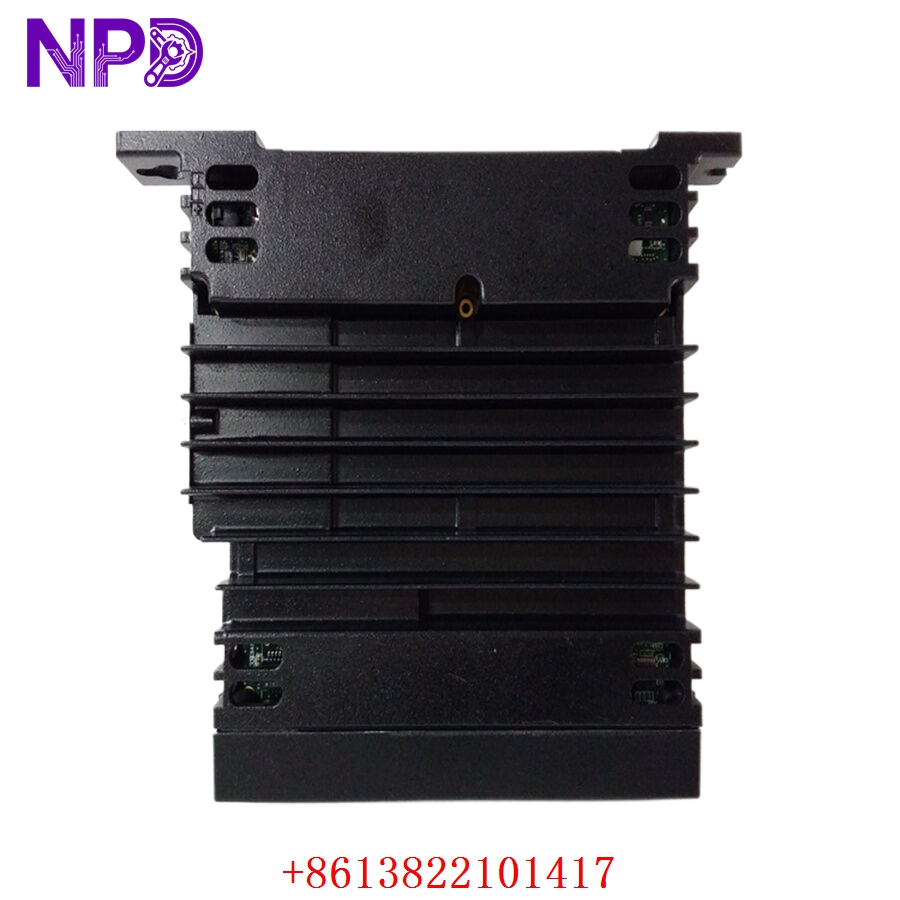

GE IS220UCSAH1A
GE IS220UCSAH1A
Application Scenarios & Network Layout
In the Mark VIe control hierarchy, the IS220UCSAH1A is the central computing hub. While individual I/O packs (like the PSVO or PDIA) handle local sensor data and valve outputs, the UCSA controller hosts the actual turbine control application layer—processing mathematical algorithms, managing state transitions, and driving sequence-of-events calculations.
[ Plant DCS / Operator Workstation (HMI) via PDH Network ]
│
▼
================= IONet Redundant Rings =================
│ (IONet R) │ (IONet S) │ (IONet T)
▼ ▼ ▼
┌───────────────────┐ ┌───────────────────┐ ┌───────────────────┐
│ IS220UCSAH1A (R) │ │ IS220UCSAH1A (S) │ │ IS220UCSAH1A (T) │
│ [Intel Dual-Core]│ │ [Intel Dual-Core]│ │ [Intel Dual-Core]│
└─────────┬─────────┘ └─────────┬─────────┘ └─────────┬─────────┘
│ │ │
└───────────────────────┼───────────────────────┘
▼
[ Peer-to-Peer 2oo3 Software Hardware Voting ]
│
▼
Distributed I/O Packs (PSVO, PDIA, PTUR, etc.) Typical Deployment Scenarios:
- Gas Turbine Base Control: Governs start-up sequencing, air-to-fuel trim controls, combustion monitoring, and load tracking variables on large industrial frames (e.g., Frame 6, 7, or 9 blocks).
- Steam Turbine Speed Control: Manages high-precision governor valve positioning and synchronization steps to couple the generator safely onto the main power grid.
- TMR Safety Infrastructure: Three UCSA processors operate in parallel. Each controller executes identical software code over its respective IONet ring. If one controller disagrees with the other two due to an internal calculation fault, its output is outvoted by the hardware grid—allowing the plant to run continuously without a forced trip.
Field Commissioning & Technical Troubleshooting
Replacing a core processor block can be delicate. Prioritize these system-matching steps during field commissioning:
1. The Controller Identity Match
- The Pitfall: When a replacement IS220UCSAH1A is pulled from cold storage, it will have an blank or default IP address configuration. If you simply plug it into a live IONet network without establishing its physical identity, it will cause IP conflict errors or refuse to sync with its redundant companion nodes.
- The Fix: Connect your workstation directly to the controller’s front diagnostic port using a standard Ethernet patch cord. Use the ToolboxST platform’s “Device Manager” to bind the unique MAC address of the replacement card to the designated controller slot (e.g., Controller_R) before downloading the site application files.
2. Diagnostic LED Breakdown
| Faceplate Status LED | Indicated State | Probable Root Cause | Field Action Recommendations |
| Power (Green) Blinking | Hardware initialization | Controller is booting the QNX kernel | Normal behavior for the first 30–45 seconds following power application. |
| Online (Green) Off | Controller offline | Unit failed to synchronize on the IONet matrix | Check if application logic code has been fully downloaded or check for configuration mismatch errors in ToolboxST. |
| Fault (Red) Solid On | Critical system error | Hardware self-test failure or memory parity crash | Cycle the local 28V DC power feed. If the red light stays solid on after a reboot, replace the controller. |
| IONet (Amber) Off | Link connectivity loss | Faulty RJ45 cable or damaged internal ethernet transceiver port | Inspect terminal switch hub status indicators. Swap network cables to rule out broken trace paths. |
Handling and Environmental Note:
The IS220UCSAH1A relies heavily on its external aluminum fins to dump thermal load. Never block the vertical air-flow channels above or below the controller housing, and keep the unit free from heavy dust accumulation.
Every processor card dispatched from our inventory undergoes a multi-point verification process, including memory stress cycles and communication port loopbacks. If your facility requires custom parameter loading or the original GE installation footprints, our support group can deliver those assets alongside your order shipment.
