Description
The GE IS220YDIAS1A is a Discrete Input I/O Pack (YDIA) from the Mark VIe control system series. This module serves as a localized, high-speed interface that captures digital signals from field devices and transmits them over the redundant IONet to the system controllers.
Product Parameters (Datasheet)
- Model Number: IS220YDIAS1A
- Series: Mark VIe / Mark VIeS (Safety)
- Module Type: Discrete Input (DI) Pack
- Input Channels: 24 Discrete inputs
- Communication: Dual 100 Mbps RJ45 Ethernet ports (IONet)
- Sequence of Events (SOE): 1 ms resolution on all channels
- Input Voltage Compatibility: 24 V DC and 125 V DC (Hardware dependent)
- Internal Processor: High-speed ARM-based or RISC-based processor
- Temperature Range: -30°C to +65°C
- Revision: “S1A” indicates a specific hardware/software baseline, often associated with safety-certified or specialized performance updates.

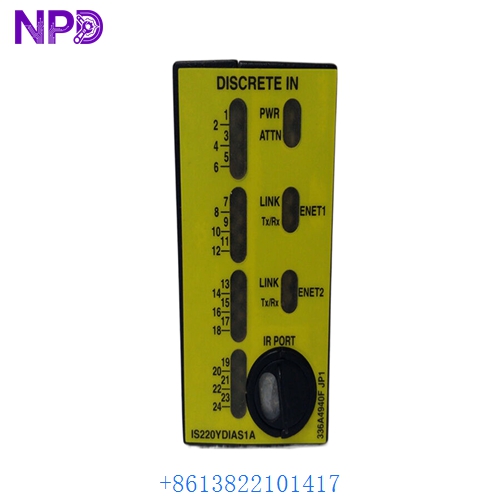

GE IS220YDIAS1A

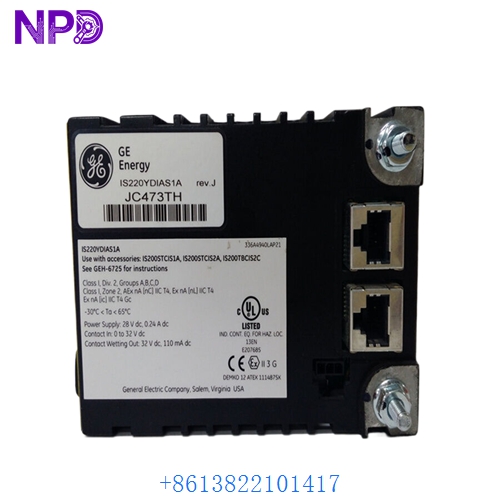

GE IS220YDIAS1A
GE IS220YDIAS1A
Country of Origin
This I/O pack is engineered and manufactured by General Electric (GE) in the USA. It is part of the standardized global platform for modern turbine and power conversion control.
Application Fields
The IS220YDIAS1A is essential for high-integrity industrial automation:
- Gas & Steam Turbine Safety: Monitoring critical permissive and trip signals.
- SIL-Rated Safety Loops: Often used in Mark VIeS (Safety) configurations for functional safety requirements.
- Electrical Substation Monitoring: Tracking the status of high-voltage breakers and disconnect switches.
- Process Interlocks: Monitoring pressure, level, and temperature switches for plant-wide logic.
- Root Cause Analysis: Utilizing the 1ms SOE data to reconstruct the timeline of complex system trips.
Product Usage Instructions
- Direct Attachment: Plug the YDIA pack directly into the D-type connectors of a compatible Mark VIe terminal board (such as the TBCI or STCI).
- Redundant Networking: Connect both Ethernet ports to the IONet switches (Network R, S, or T) using shielded cables to ensure communication path redundancy.
- Software Configuration: Configure the input points in ToolboxST. Define attributes like “Contact State,” “Invert,” and “SOE Enable.”
- Hardware Identification: Upon power-up, the system will verify the electronic ID and version of the S1A pack to ensure it matches the project configuration.
- LED Diagnostics: Watch for a steady green “Online” LED. A flashing “Fault” LED may indicate a mismatch between the pack and the terminal board it is plugged into.
Product Technical Description
The IS220YDIAS1A is a “Distributed I/O” module, which moves the digitization of signals from the central rack out to the field termination point. Technically, it contains its own A/D conversion circuitry and a localized CPU. When a change in state is detected on any of the 24 inputs, the YDIA pack assigns a high-precision timestamp to that event locally. This data is then packaged and sent across the Ethernet-based IONet to the controllers. The “S1A” revision is particularly robust, featuring high levels of noise immunity and isolation to prevent field-side electrical transients from propagating into the control network. Its compact design allows for simplified cabinet layouts and reduced field wiring costs.
Q&A (Common Questions)
- Q: Is the YDIAS1A interchangeable with the PDIAH1B?
- A: While they perform similar functions, they have different hardware baselines. You must check your specific Mark VIe configuration and software version before attempting a swap, as they may require different firmware.
- Q: What is the significance of the “S” in S1A?
- A: The “S” often denotes specific hardware enhancements for reliability or safety certifications in certain GE product lifecycles.
- Q: How does the module handle signal debouncing?
- A: Debouncing is handled digitally within the pack’s processor. The filter time constants can typically be adjusted via the software to ignore momentary contact chatter.
- Q: Does this pack require an external 24V supply?
- A: The pack receives power through its connection to the terminal board, but the field contacts themselves must be powered by the appropriate excitation voltage.
Similar Model Recommendations
- GE IS220PDIAH1B: Standard Discrete Input I/O Pack.
- GE IS220YDOAS1A: Corresponding Discrete Output I/O Pack (S1A revision).
- GE IS200STCIH1A: Simplex Contact Input Terminal Board.
- GE IS200TBCIH1C: TMR Contact Input Terminal Board.
- GE IS220PAICH1A: Analog Input I/O Pack.
For technical manuals or to procure the GE IS220YDIAS1A, please contact our automation parts team.
