Description

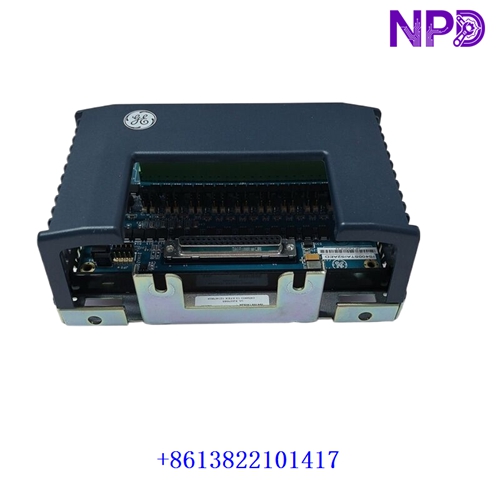

The GE IS410STAIS2A is a Mark VIeS Simplex Analog I/O Terminal Board used with the IS420YAICS1B Analog I/O Pack. It provides the field interface for analog process signals and supports 10 analog inputs plus 2 analog outputs, for a total of 12 channels. GE documentation confirms the board as an active Mark VIeS safety-system component.
The IS400STAIS2AED is also associated with this STAI terminal-board assembly in industrial listings. When purchasing a replacement, the physical nameplate, hardware revision, and existing I/O Pack configuration should be checked carefully rather than treating every similarly named board as interchangeable.
🔧 Key Features
• GE Mark VIeS analog I/O terminal board
• Simplex I/O architecture
• 10 analog inputs + 2 analog outputs
• Compatible with IS420YAICS1B YAIC I/O Pack
• Supports 2-wire, 3-wire, and 4-wire transmitters
• Supports externally powered transmitters
• 0–20 mA analog output capability
• 16-bit analog input conversion
• 0.1% full-scale analog input accuracy
• Built-in board identification for diagnostics
• DIN-rail mounting
• Designed for functional-safety applications
📋 Product Datasheet
• Brand: GE
• Model: IS410STAIS2A
• Associated Part Number: IS400STAIS2AED
• Product Type: Simplex Analog I/O Terminal Board
• Series: Mark VIeS
• I/O Pack: IS420YAICS1B
• Channel Count: 12 channels
• Analog Inputs: 10 channels
• Analog Outputs: 2 channels
• AI Signal Range: 1–5 VDC, ±5 VDC, ±10 VDC, 0–20 mA
• AI Channels 9–10: 0–20 mA, ±1 mA
• Analog Output: 0–20 mA
• A/D Resolution: 16-bit
• Input Accuracy: 0.1% of full scale
• I/O Scan Rates: 10 / 40 / 80 / 160 ms
• I/O Pack Control Power: 28 VDC, 8 W per YAIC*
• Mounting: DIN rail
• Operating Temperature: -40 to +70 °C
• Storage Temperature: -40 to +85 °C
• Dimensions: Approx. 17.0 × 15.7 × 15.3 cm including cover and I/O Pack*
• Country of Origin: USA*
• Safety Rating: IEC 61508 compliant
GE documentation specifies 12 channels per module, consisting of 10 AI and 2 AO, with 16-bit A/D conversion and 0.1% full-scale accuracy over the operating temperature range.
🏭 Typical Applications
The IS410STAIS2A is intended for industrial safety and control applications such as:
• Gas turbine control
• Steam turbine control
• Power generation
• Process automation
• Generator monitoring
• Industrial safety systems
• Analog transmitter monitoring
• Mark VIeS functional-safety installations
⚡ Functional Description
The STAI terminal board provides the physical connection between field analog sensors/actuators and the YAIC I/O Pack. Its ten analog inputs can accept different transmitter wiring configurations, while the two analog outputs provide 0–20 mA signals to compatible field devices.
An onboard identification chip allows the I/O Pack to identify the terminal board for system diagnostics. GE also specifies power-up self-testing, continuous internal power-supply monitoring, incorrect-terminal-board detection, analog input limit checking, and analog-output health monitoring.
🔌 Installation & Configuration
Basic installation procedure:
• Verify IS410STAIS2A / IS400STAIS2AED identification
• Confirm Mark VIeS system compatibility
• Check the installed IS420YAICS1B I/O Pack
• Mount the terminal board on the designated DIN rail
• Connect field wiring according to the project drawings
• Verify transmitter wiring type
• Configure AI and AO channels in the control system
• Restore power and check diagnostic status
🛠️ Commissioning Checklist
• Confirm board identification
• Check I/O Pack connection
• Verify all field terminals
• Check 4–20 mA / 0–20 mA signals where applicable
• Verify voltage-input channels
• Confirm analog output operation
• Check diagnostic indicators
• Review controller alarms
• Compare process values with calibrated field instruments
⚠️ Replacement Note
The IS410STAIS2A is specifically documented by GE as the Mark VIeS Simplex Analog I/O terminal board. Some secondary listings describe the part as an STCI board or simply an analog output board, but GE’s own documentation identifies its actual function as the STAI analog I/O terminal board with 10 AI + 2 AO.
📦 Ordering Information
GE IS410STAIS2A | IS400STAIS2AED | Mark VIeS Simplex Analog I/O Terminal Board | 10 AI + 2 AO | 12 Channels
