Description

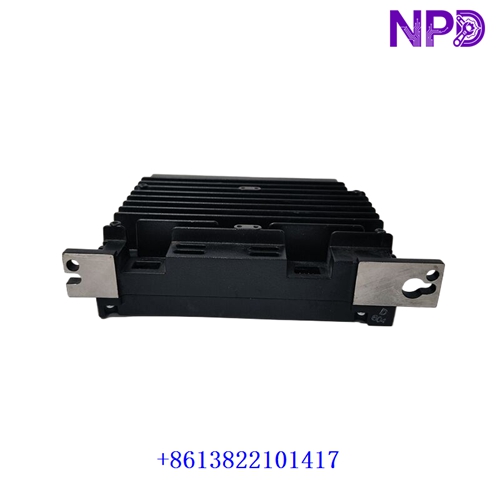

The GE IS420UCSBH4A is a high-performance Controller Module designed for the General Electric Mark VIe distributed control system (DCS). It serves as the core processing unit for gas turbines, steam turbines, and industrial automation balance-of-plant applications, executing application software, handling network communications, and managing I/O data.
- Manufacturer: General Electric (GE / GE Vernova)
- Part Number / Model: IS420UCSBH4A (UCSB controller variant)
- Product Series: Mark VIe Distributed Control System
- Product Type: Central Processing / Controller Module
- Processor Architecture: High-speed multi-core processor for real-time control and system logic execution
- Communication Ports: Dual Ethernet ports supporting high-speed IONet communication and plant-level network integration
- Form Factor: Modular plug-in card designed for Mark VIe controller racks
- Approximate Weight: ~0.8 kg
Inspection & Installation Guidelines
- Packaging Check: Unpack the module carefully on an ESD-safe surface and ensure that anti-static transit packaging is undamaged.
- Part Verification: Confirm that part number
IS420UCSBH4Amatches your control system hardware configuration drawings and software project specifications. - Visual Inspection: Check front-panel ports, diagnostic LED indicators, backplane connector pins, and housing integrity for any transit wear, dust, or damage.
- Secure Seating: Guide the controller card evenly into its designated rack slot and push firmly to engage the backplane connectors completely before fastening retaining hardware.
Maintenance Recommendations
- Dust Control: Keep turbine control cabinets clean and free of particulate buildup using dry, oil-free compressed air during scheduled maintenance windows.
- Connection Audit: Periodically check Ethernet cables, power feeds, and backplane connections to prevent vibration-induced loosening in heavy industrial environments.
- Thermal Monitoring: Ensure that control panel cooling fans and ventilation paths maintain operating temperatures within safe thresholds.
- Diagnostic Checks: Regularly observe front-panel status LED indicators and system software logs (such as ToolboxST) to monitor controller health and redundancy status.
Troubleshooting & Common Faults
- Controller Not Initialized / Boot Failure: Verify that incoming rack power supplies are stable and that the module is fully seated into the backplane slots.
- IONet Communication Loss: Inspect Ethernet patch cables, switch connections, and network configuration parameters linking the controller to the I/O packs.
- Configuration Mismatch: Ensure that the software project version loaded via ToolboxST matches the physical firmware and hardware revision of the installed controller.
Safety & Handling Precautions
- Power Isolation: Always disconnect and lock out system power before installing, servicing, or removing controller modules in control cabinets.
- Qualified Personnel: Installation, firmware flashing, and control configuration must be performed exclusively by certified GE Mark VIe system engineers.
- ESD Protection: Always wear a properly grounded anti-static wrist strap when handling the bare circuit board to prevent electrostatic discharge damage.
Frequently Asked Questions (Q&A)
- Q: What is the primary function of the GE IS420UCSBH4A?
- A: It functions as a primary controller module in the Mark VIe system, executing real-time control logic and coordinating data exchange across the plant network.
- Q: What software tool is used to configure this controller?
- A: It is configured and managed using GE’s ToolboxST application software suite.
