Description

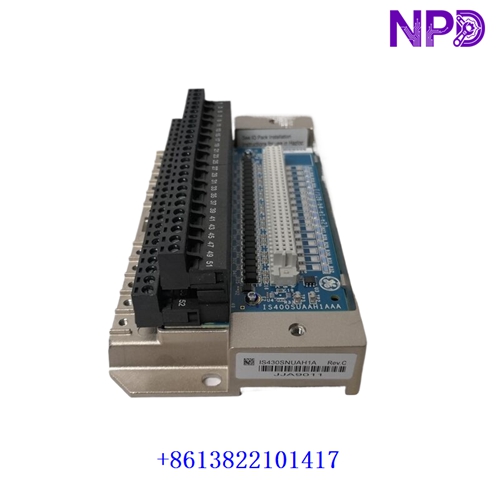

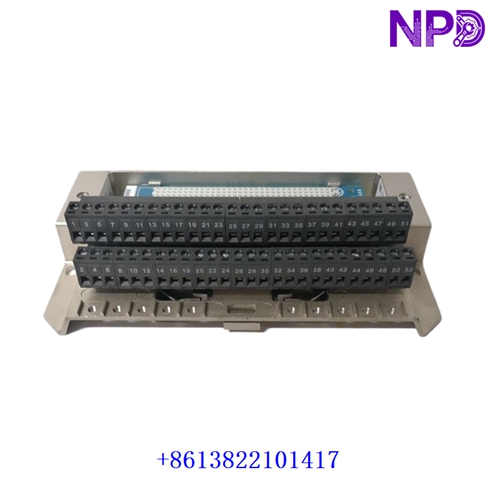

The GE IS430SNUAH1A is a Universal I/O Module for the GE Mark VIe control platform. It combines the SUAAH1A terminal board with the PUAAH1A I/O pack to provide flexible signal acquisition and processing for industrial control applications.
The module supports multiple field signal types, allowing individual channels to be configured for thermocouples, RTDs, voltage, current, pulse, or digital signals. This makes it suitable for process control and turbine-control applications where different field instruments need to share a common I/O platform.
🔧 Key Features
• GE Mark VIe Universal I/O module
• 16 configurable simplex channels
• Supports TC and RTD inputs
• Supports ±5 V and ±10 V voltage inputs
• Supports 4–20 mA current inputs
• Supports 0–20 mA current outputs
• Supports pulse accumulator functions
• Integrated I/O processing and diagnostics
• Compatible with GE Mark VIe control architecture
• Suitable for industrial process and turbine applications
📋 Product Datasheet
• Brand: GE General Electric
• Model: IS430SNUAH1A
• Product Type: Universal I/O Module
• Series: Mark VIe
• Terminal Board: SUAAH1A
• I/O Pack: PUAAH1A
• Number of Channels: 16 simplex channels
• Supported Signals: TC, RTD, ±5 V, ±10 V, 4–20 mA, 0–20 mA, pulse, digital
• Power Supply: 24 VDC system supply*
• I/O Processing: Digital signal acquisition and processing
• ADC Resolution: 16-bit*
• Communication: Mark VIe controller network
• Configuration Software: ToolboxST
• Dimensions: Approx. 260 × 220 × 40 mm*
• Weight: Approx. 1.2 kg*
• Mounting: GE Mark VIe control cabinet / rack installation
• Operating Temperature: Approx. -30 to +65 °C*
• Country of Origin: USA
• Application: Industrial Automation / Turbine Control
🏭 Typical Applications
The IS430SNUAH1A is suitable for applications requiring flexible analog and digital signal handling.
Typical applications include:
• Gas turbine control
• Steam turbine control
• Generator monitoring
• Power plant automation
• Oil and gas equipment
• Process control systems
• Industrial machinery monitoring
⚡ Functional Description
The IS430SNUAH1A digitizes field signals, executes local I/O processing, and communicates the resulting data with the Mark VIe controller. GE’s Mark VIe architecture uses a processor board together with a device-specific data acquisition board to process field signals and provide diagnostic information to the controller.
The 16 channels can be individually configured for different signal types. This provides a useful amount of flexibility when a control cabinet contains a mixture of temperature, voltage, current, pulse, and discrete signals.
🔌 Configuration & Commissioning
Basic configuration procedure:
• Install the IS430SNUAH1A in the designated Mark VIe location
• Verify the SUAAH1A terminal board connection
• Connect field wiring according to the project drawings
• Configure individual channels in ToolboxST
• Select the appropriate signal type
• Set input/output scaling and engineering units
• Verify controller communication
• Check I/O diagnostics
During commissioning, verify each channel independently before placing the equipment into normal automatic operation.
🛠️ Installation Notes
Before replacement, verify:
• Complete part number IS430SNUAH1A
• Terminal board type
• I/O pack compatibility
• Hardware revision
• Existing ToolboxST configuration
• Field wiring and channel assignments
After installation:
• Check module status LEDs
• Confirm controller recognition
• Verify each configured channel
• Compare measured values with field instruments
• Check diagnostic and fault information
• Perform functional testing under normal operating conditions
📦 Ordering Information
The correct identification is:
GE IS430SNUAH1A Mark VIe Universal I/O Module
The IS430SNUAH1A is documented as a Mark VIe Universal I/O module, with 16 configurable simplex channels supporting a range of analog, temperature, pulse, and digital signal types.
Dimensions, weight, power, and environmental values marked with an asterisk are reference specifications. Confirm the exact hardware revision and terminal-board configuration before engineering replacement or installation.
