Description
Product Parameters
- Model Number: IS230SRTDH2A
- Series: Mark VIe Speedtronic
- Board Type: Resistance Temperature Device (RTD) Termination Board
- Input Channels: 12 RTD Inputs (Supports 3-wire or 4-wire configurations)
- RTD Types: 100 Ohm Platinum (DIN), 10 Ohm Copper, 120 Ohm Nickel, etc.
- Redundancy: Supports Simplex and TMR (Triple Modular Redundant) configurations
- Common Mode Rejection: 120 dB (Minimum)
- Country of Origin: USA
- Weight: 1.54 lbs (0.70 kg)
- Dimensions: 6.25 in x 7.0 in x 1.1 in (15.9 cm x 17.8 cm x 2.8 cm) The GE IS230SRTDH2A is a high-density temperature monitoring interface designed for the Mark VIe system, providing terminal connections for up to 12 RTD sensors. This board facilitates the high-accuracy measurement of turbine bearing temperatures, winding temperatures, and oil systems by providing precision excitation current and signal conditioning. Featuring built-in surge protection and noise filtering, the SRTD board ensures stable temperature readings in harsh electromagnetic environments, seamlessly interfacing with PRTD I/O packs to deliver digitized data over the IONet control network.
-

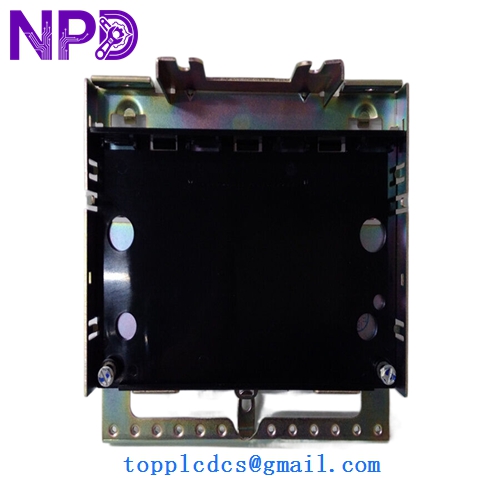

GE IS230SRTDH2A

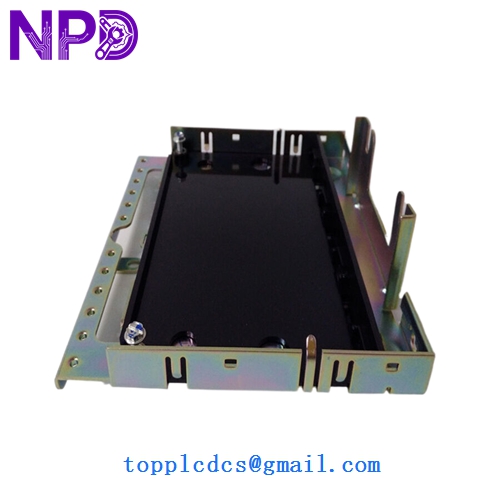

GE IS230SRTDH2A

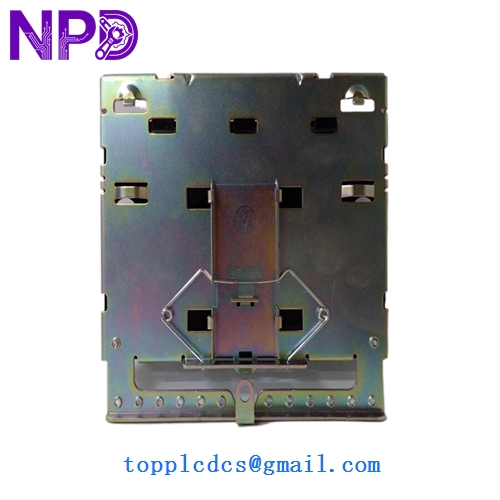

GE IS230SRTDH2A
GE IS230SRTDH2A
Model Comparison
The IS230SRTDH2A is the “S-style” or DIN-rail mountable version, which is significantly more compact than the legacy IS200TRTDH1A used in the original Mark VI “V-rack” cabinets. While the IS230SRTDH1A (H1A) is commonly used for standard 3-wire RTDs, the H2A revision includes updated hardware specifications for better compatibility with 4-wire RTD configurations and enhanced isolation between channels. Unlike the IS230STCIH1A (Contact Input board), the SRTD uses specialized precision resistors and excitation circuitry specifically calibrated for temperature-dependent resistance changes, making it non-interchangeable with general analog boards.
Operation Tips
- Lead Compensation: When using 3-wire RTDs, ensure all three wires have identical resistance; the IS230SRTDH2A compensates for lead length, but unequal wire resistance will cause temperature offsets.
- Shielding Protocol: RTD cables are highly sensitive to noise; ensure the cable shield is grounded at the SRTD board terminal and remains continuous up to the sensor head to prevent “jitter” in readings.
- I/O Pack Pairing: This board is typically paired with the IS220PRTDH1A I/O pack. Ensure the pack is firmly seated and the mounting screws are tightened to maintain a reliable connection to the terminal pins.
- Open Circuit Check: The Mark VIe diagnostics will flag an “Open Loop” if a sensor is disconnected; use the ToolboxST software to verify which specific channel is faulted before physically inspecting the turbine-side wiring.
