Description
- The GE MMI301 is a specialized interface module designed for the Mark VI Speedtronic control system. It serves as a critical communication bridge between the control processor and the operator workstation, facilitating real-time data visualization, alarm management, and command execution for large-scale turbine operations.
Product Parameters
- Module Type: Man-Machine Interface (MMI) Communication Card
- Operating Voltage: 24 V DC (nominal)
- Communication Ports: Ethernet (TCP/IP), RS-232 Serial
- Power Consumption: 6.5 Watts
- Data Throughput: High-speed internal bus synchronization
Product Specifications
- Series: Mark VI Speedtronic Control
- Compatibility: GE CIMPLICITY HMI / ToolboxST software environments
- Mounting: Standard Mark VI VME-style rack slot
- Indicators: On-board LEDs for Power, Run, and Status diagnostics
- Environmental: Designed for high-vibration power plant control rooms

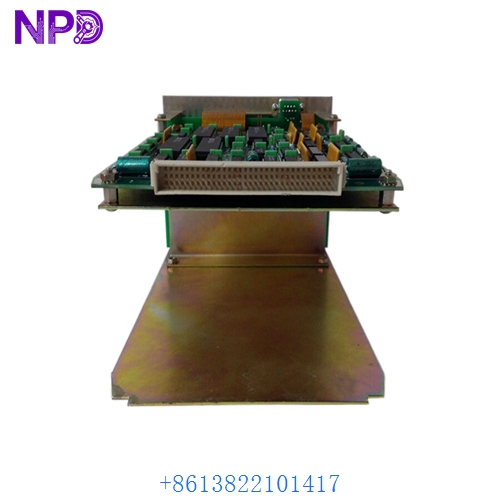

GE MMI301
GE MMI301
GE MMI301
Application Fields
- Gas Turbine Control: Monitoring combustion parameters and exhaust temperatures.
- Steam Turbine Regulation: Visualizing steam flow and turbine speed synchronization.
- Plant-Wide HMI: Centralizing data from multiple Mark VI racks to a single operator desk.
- Diagnostics: Providing engineering access for troubleshooting and logic forcing.
Product Q&A
Q: Is the MMI301 compatible with the newer Mark VIe system? A: The MMI301 is primarily designed for the Mark VI VME-based platform. For Mark VIe systems, different UCSB or UCSC controllers with integrated Ethernet are typically used.
Q: Does this module require specific HMI software? A: Yes, it is typically used in conjunction with GE’s CIMPLICITY software or the TCI (Turbine Control Interface) to translate rack data into graphical displays.
Q: Can the MMI301 be hot-swapped during turbine operation? A: While the hardware supports it, it is recommended to perform replacements during a scheduled maintenance window to avoid losing visibility of the process on the operator screen.
