Description

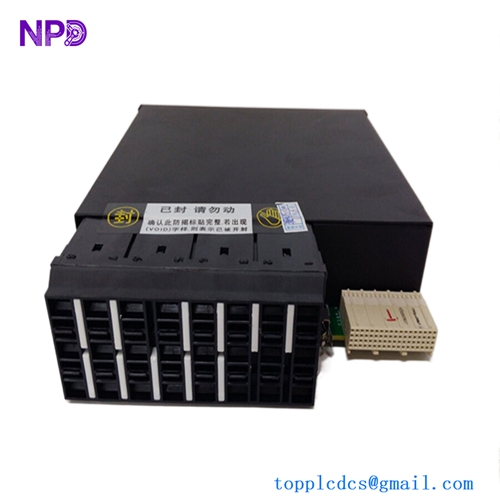

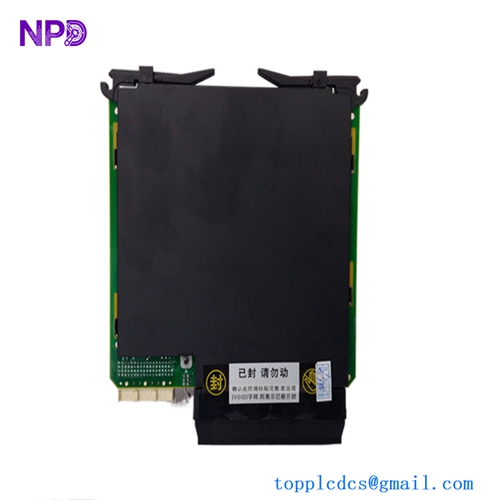

The GE Multilin UR6PH is a high-performance Digital Input/Output (I/O) module designed for the Universal Relay (UR) Series. This modular platform is manufactured by GE Vernova (formerly GE Grid Solutions / Multilin) and is engineered to provide protective relaying, control, and monitoring for critical power system assets. The UR6PH specifically functions as an interface module, offering a combination of high-speed digital inputs and metered outputs to manage substation equipment like breakers and switches.
GE UR6EV
Product Parameters (Datasheet)
The UR6PH is a “trip-rated” module, meaning its outputs are designed to handle the high-current demands of circuit breaker trip coils.
| Feature | Specification |
| Module Type | Digital Input/Output (I/O) |
| Digital Outputs | 6 Form-A Outputs |
| Digital Inputs | 4 Digital Contact Inputs |
| Output Type | Latching or Non-latching (High-speed) |
| Metering Capabilities | Current metering on outputs; optional voltage metering |
| Activation Speed | Typical < 4ms for Form-A outputs |
| Input Isolation | Up to 300 Vpk (Isolation from dry contact) |
| Mounting | Plug-and-play modular slot for UR Chassis |
| Weight | Approx. 3.0 lbs (1.36 kg) |
| Environmental | Substation hardened (IEC 60255 compliant) |
Country of Origin
- Primary Origin: Canada (GE Multilin’s main manufacturing and R&D hub for the UR series is located in Markham, Ontario).
Application Areas
The UR6PH module is utilized across various protection and control systems within the Universal Relay family:
- Transmission & Distribution: Used in D60 (Distance) and L90 (Line Differential) relays for breaker tripping and status monitoring.
- Generation Protection: Integrated into G60 and G30 systems to manage generator lockout relays and auxiliary signals.
- Substation Automation: Works with the C30 or C60 controllers for bay control, interlocking, and Sequence of Events (SOE) recording.
- Industrial Power Plants: Provides the I/O interface for motor protection (M60) and transformer management (T60).
Product Usage Instructions
1. Installation
- Slot Selection: The UR6PH is a “hot-swappable” module designed for specific I/O slots in the UR chassis. Ensure the CPU module is configured to recognize the module in the selected slot.
- Insertion: Slide the module into the chassis guides and push firmly until the backplane connectors seat completely. Tighten the front panel captive screws.
2. Wiring
- Inputs: Wire dry contacts to the digital inputs. These are typically used for sensing breaker position (52a/52b) or external trip commands.
- Outputs: Connect the Form-A outputs to the trip/close coils or auxiliary relays. Ensure the wiring follows the polarity required for metered versions.
3. Configuration
- Software: Use EnerVista UR Setup software to map the inputs and outputs.
- Logic: Program the I/O points within the FlexLogic™ engine to define which protection elements (e.g., Overcurrent, Distance) trigger the physical UR6PH outputs.
4. Maintenance
- Use the built-in monitoring tools to check the “health” of the trip circuit. If the module features current metering, it can detect open circuits in the breaker coil before a trip is required.
Recommended Related Models
The UR series is highly modular. Depending on your system requirements, the following related modules and relay bases are commonly used alongside or as alternatives to the UR6PH:
- UR-6C / UR-6L: High-density digital I/O modules with different Form-C or Latching output configurations.
- UR-8L / UR-8A: CT/VT (Current/Voltage Transformer) input modules for protective sensing.
- G60 (Generator Protection): The flagship relay for comprehensive generator management.
- T60 (Transformer Protection): Specialized for multi-winding transformer differential protection.
- F60 (Feeder Protection): Ideal for distribution feeder management and control.
- C60 (Breaker Manager): A dedicated controller for dual-breaker configurations and automation.
