Description
Product Parameters
- Model Number: IC698CPE030
- Series: PACSystems RX7i
- Microprocessor: Pentium III (700 MHz)
- User Memory: 20 MB (Battery-backed RAM and Non-volatile Flash)
- I/O Support: Up to 8,192 inputs and outputs (Discrete/Analog)
- Embedded Ports: 3 Serial ports (RS-232/RS-485) and 2 Ethernet ports (10/100 Mbit)
- VMEbus Support: Dual-slot module with VME64 standard backplane interface
- Country of Origin: USA
- Weight: 1.85 lbs (0.84 kg)
- Dimensions: 11.5 in x 1.5 in x 7.5 in (29.2 cm x 3.8 cm x 19.1 cm) The IC698CPE030 is the primary controller for the PACSystems RX7i platform, utilizing a powerful Pentium III processor to execute complex control logic and high-speed communication simultaneously. It features 20 megabytes of configurable user memory and integrated Ethernet ports, providing a seamless bridge between plant-floor I/O and enterprise-level data systems. Designed for migration and high-performance applications, this CPU supports C and Relay Ladder Logic programming, making it a robust solution for large-scale automation tasks that require extensive data handling and VMEbus compatibility.
-

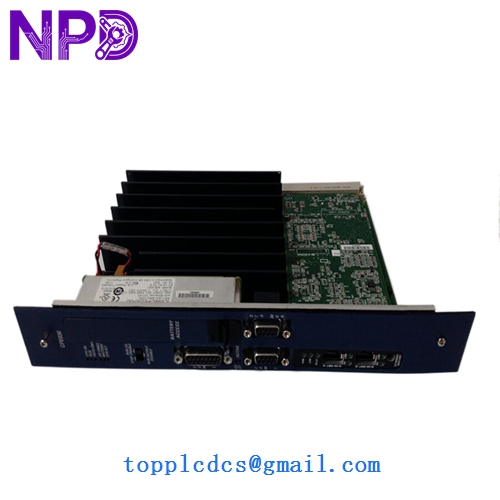

GE IC698CPE030

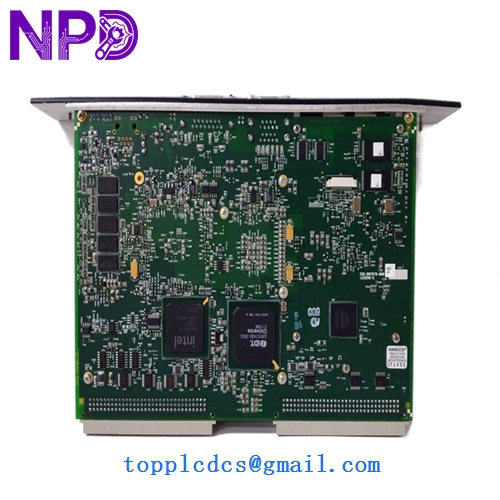

GE IC698CPE030
GE IC698CPE030
Model Comparison
The IC698CPE030 is an upgraded version of the IC698CPE010 and IC698CPE020, offering significantly more user memory (20 MB vs. 5 MB or 10 MB) and a faster processor clock speed. While it shares the same RX7i form factor as the IC698CPE040, the 030 model is often the “sweet spot” for large-scale migrations of older Series 90-70 systems due to its balance of memory and cost-efficiency. Unlike the PACSystems RX3i series CPUs, which use a smaller PCI-based backplane, the IC698CPE030 is a VME-based module, allowing it to control legacy VME modules directly while upgrading the processing core to modern standards.
Operation Tips
- Battery Maintenance: The RAM depends on the IC698ACC701 battery pack; always replace the battery with the power ON to prevent the loss of user programs and configuration data.
- Firmware Consistency: Ensure that the CPU firmware version is compatible with your PME (Proficy Machine Edition) software version to avoid communication “Target” mismatches during logic downloads.
- Ethernet Configuration: Use the station manager port (RS-232) for the initial IP address assignment before attempting to connect via the embedded Ethernet ports for the first time.
- VME Locking: When inserting the module into the RX7i rack, ensure the top and bottom injector/ejector handles are fully locked to guarantee a secure connection with the VME64 backplane pins.
