Description
- Model: GE PQMII-T20
- Brand: GE Multilin (General Electric)
- Series: PQMII Power Quality Meter Series
- Core Function: High-end 3-phase power metering and quality analysis
- Product Type: Power Management Relay / Meter
- Key Specs: 3-Phase Voltage & Current | Harmonic Analysis | 4-20 mA Transducer Outputs
- Input Voltage: 20-600 V AC (Phase-to-Phase)
- Current Inputs: 1 A or 5 A (CT programmable)
- Power Supply: 90-300 V DC / 70-265 V AC
- Transducer Outputs: 3 Assignable 4-20 mA channels (the “-T20” suffix)
- Communication Port: RS485 Modbus RTU (Supports up to 19,200 bps)
- Metering Accuracy: 0.2% for Voltage and Current
- Harmonic Analysis: Up to the 32nd harmonic for V and I
- Protection: Conformal coated for harsh industrial environments
- Display Type: 40-character backlit LCD
- Data Logging: Minimum/Maximum values and event recording

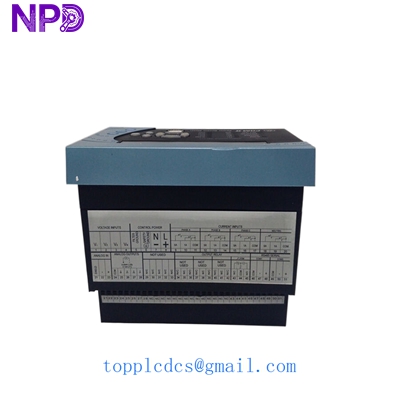

GE PQMII-T20
Application Scenarios & Pain Points
The PQMII-T20 is more than just a digital voltmeter. In medium-voltage switchgear or large motor control centers (MCC), this meter acts as the primary data source for the SCADA system. The “T20” option is particularly vital for plants that still rely on analog PLC inputs, as it converts complex power data into standard 4-20 mA signals.
Typical Application Scenarios:
- Substation Automation Monitoring transformer loading and feeder power quality to prevent overheating or harmonic distortion issues.
- Industrial Load Management Tracking peak demand to avoid utility penalties and identifying low power factor equipment for capacitor bank correction.
- Critical Power Backup Used in data centers or hospitals to monitor the transition and quality of power from backup generators.
The “Phantom Trip” Case:
A manufacturing facility in Ohio was experiencing random VFD (Variable Frequency Drive) trips every Tuesday morning. The maintenance team couldn’t find any hardware faults. By installing a PQMII-T20, they captured a high Total Harmonic Distortion (THD) event caused by a neighboring plant starting a large arc furnace.
Because they had the PQMII-T20’s 4-20 mA outputs tied directly into their PLC, they set up a pre-emptive alarm that allowed them to adjust their drive settings before the trip occurred. They saved roughly $15,000 per week in avoided production downtime.

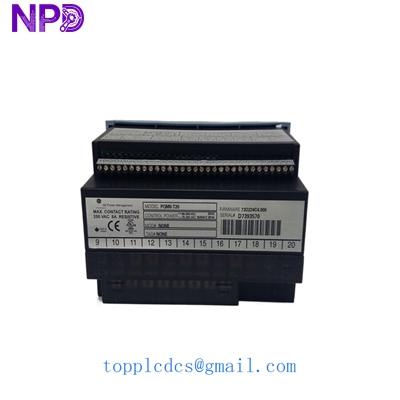

GE PQMII-T20
Troubleshooting & Technical Tips
❗ Engineering Warning: CT Polarity The most common mistake I see with the PQMII is reversed CT (Current Transformer) polarity. If your meter shows “Negative Power” while the motor is clearly running forward, check your K and L terminals. It’s a 10-minute fix that saves hours of data confusion.
Common Troubleshooting Steps:
The “Old-Timer” Advice: “If you’re replacing an old PQM with a PQMII-T20, remember that the cutout dimensions are the same, but the terminal blocks are in different spots. Don’t just pull the wires and hope they reach. Label every single wire—especially the CT leads. You do NOT want an open CT circuit under load. It’ll arc, and you’ll be buying more than just a new meter.”
Quality Control & SOP Transparency
We don’t just “power it on.” Here is how we verify every PQMII-T20:
- Visual Audit: We check the rear terminals for any signs of arcing or over-tightened screws. We ensure the LCD hasn’t “leaked” or dimmed.
- Voltage Injection Test: Using a precision AC source, we inject 120 V and 480 V signals to ensure the meter reads within the 0.2% accuracy spec.
- Transducer Output Loop: We force the meter to output 4 mA, 12 mA, and 20 mA. We measure the actual output with a Fluke 789 ProcessMeter to ensure the “-T20” card is calibrated.
- Modbus Handshake: We connect the RS485 port to a Modscan utility to verify the ID, baud rate, and register map are fully accessible.
- Factory Reset: We clear all previous setpoints and peak demand data so the unit arrives at your site as a “clean slate.”
GE PQMII-T20
Inventory Highlights (Power Management Spares)
- GE PQMII-T20-C-A (With Control/Alarm Option)
- GE SR469-P5-HI-A20 (Motor Management Relay)
- GE SR750-P5-G5-HI-A20 (Feeder Management)
- GE SR369-HI-R-M-0 (Motor Relay)
- GE UR-L90-H-H-H (Line Differential Protection)
- GE UR-G60-H-O-H (Generator Protection)
- GE F650-V-B-1-G (Bay Controller)
- GE MTM-M-1-1-1 (Modems/Transducers)
- GE EPM-6000-60-S (Power Meter)
- GE EPM-9650-A-B-C (Advanced Power Quality)
