Description
The GE RAMIX PMC422FP is a high-performance PMC (PCI Mezzanine Card) interface module, originally engineered to provide robust, multi-channel I/O connectivity for industrial and embedded computing systems. Designed for use in architectures requiring high-speed data acquisition and real-time control, this module is commonly integrated into VMEbus or CompactPCI (cPCI) carrier boards. It serves as a vital communication bridge, enabling the host processor to interface directly with diverse field instrumentation, motion control systems, or specialized signal sensors in demanding environments like aerospace, telecommunications, and heavy industrial automation.
Technical Specifications and Datasheet
- Manufacturer: GE / Ramix (formerly Force Computers)
- Model Designation: PMC422FP
- Product Type: PMC Mezzanine Interface Module
- Dimensions: Standard PMC form factor (74 mm x 149 mm)
- Weight: 0.14 kg (0.31 lbs)
- Country of Origin: USA
- Bus Standard: IEEE P1386.1 (PCI Mezzanine Card)
- Interface Connectivity: Multi-channel high-speed serial/parallel I/O
- Operating Temperature: 0°C to +70°C (Standard commercial grade)
- Power Supply: 3.3V / 5V DC via host carrier backplane
- Diagnostic Features: Integrated status LEDs for I/O activity and bus health monitoring

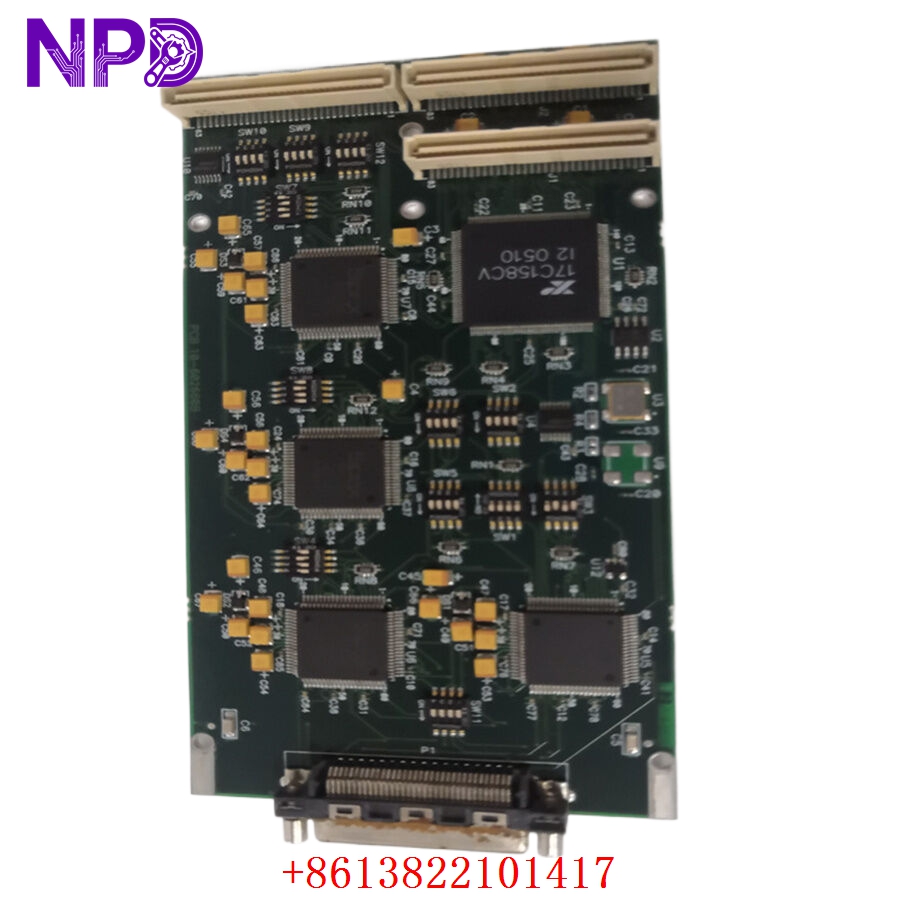

GE RAMIX PMC422FP

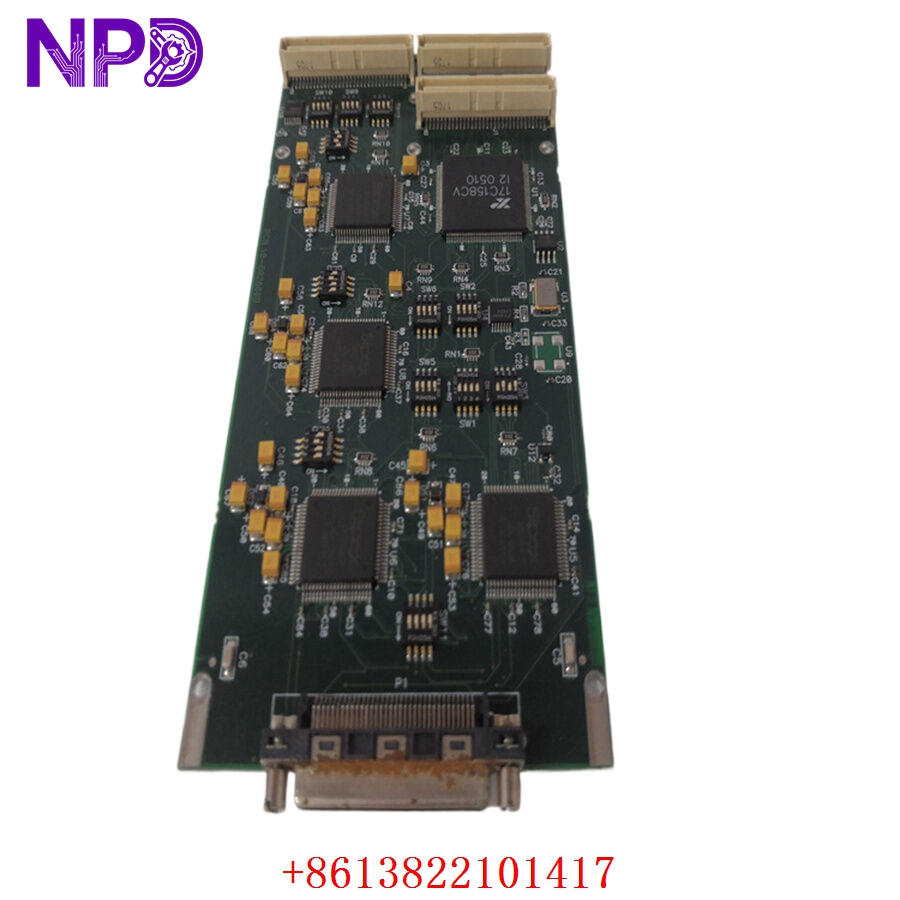

GE RAMIX PMC422FP

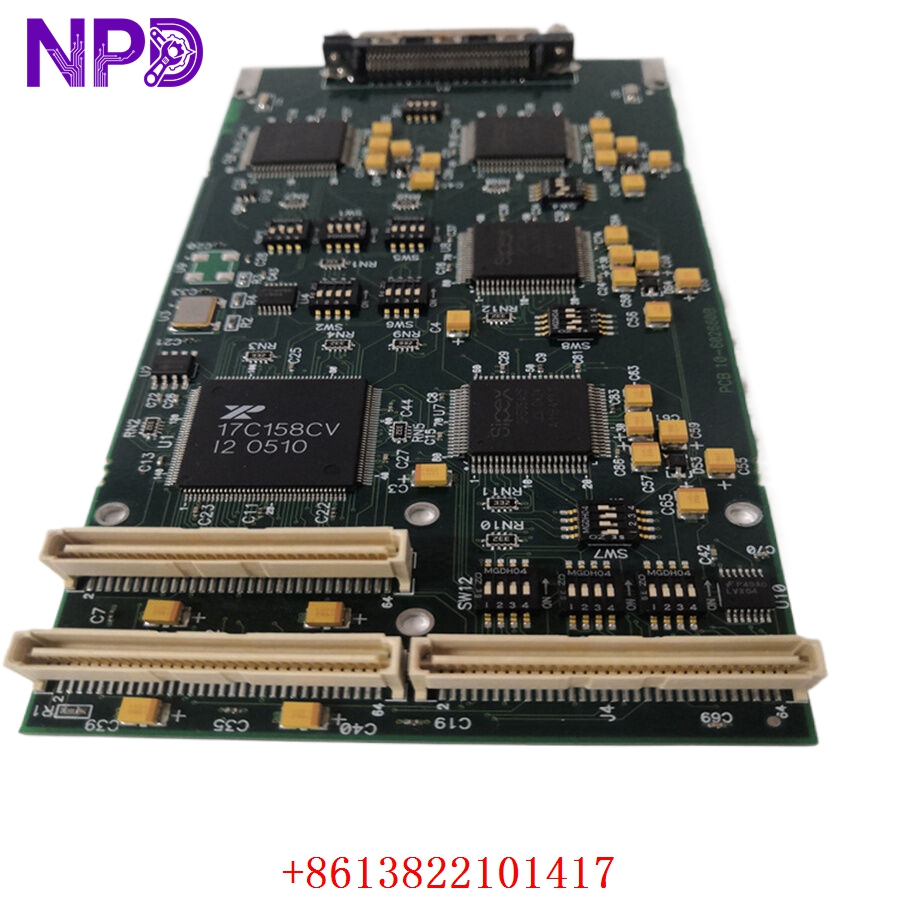

GE RAMIX PMC422FP

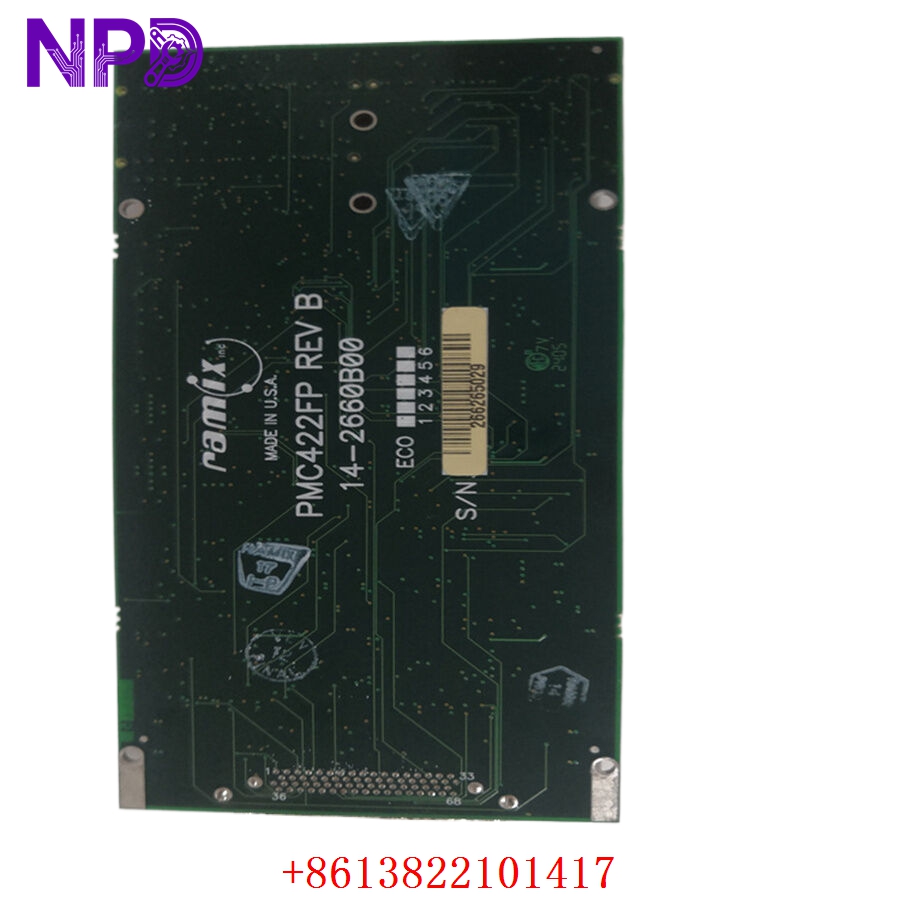

GE RAMIX PMC422FP
Application Fields
The PMC422FP is widely utilized in modular embedded systems where space and high-density connectivity are critical:
- Embedded Control Systems: Acting as a high-speed I/O node in ruggedized VME/cPCI computer systems for industrial monitoring.
- Telecommunications Switching: Managing multi-port data streams in gateway or signal-processing equipment.
- Aerospace & Defense: Providing deterministic signal input for radar telemetry and flight simulator control modules.
- Automated Test Equipment (ATE): Facilitating high-speed stimulus/response testing for complex electronic assemblies.
Product User Instructions
- Mezzanine Installation: Ensure the host carrier system is completely de-energized. Align the PMC422FP connectors with the host carrier’s PMC slots. Press evenly until the connectors are fully seated, then fasten the module using the provided mechanical mounting screws to ensure electrical chassis grounding.
- Signal Termination: Connect field devices to the module using shielded, high-density I/O cabling. Ensure that signal lines are routed away from high-current power conduits to minimize electromagnetic interference (EMI).
- Driver Integration: This module operates via PCI-based memory mapping. Ensure the appropriate Board Support Package (BSP) or device driver for your target operating system (e.g., VxWorks, Linux, or Windows) is loaded. The driver configuration file must be adjusted to match the base address and interrupt requests (IRQ) assigned by your carrier board’s BIOS/firmware.
- Thermal Considerations: As a mezzanine card, the PMC422FP relies on airflow across the carrier board. In high-density cabinets, ensure that internal fans provide adequate forced-air cooling to prevent thermal throttling of the onboard interface processors.
Frequently Asked Questions (Q&A)
Q1: What does the “FP” suffix in the model name represent? A1: The “FP” typically denotes “Field Programmable” or indicates specific front-panel (FP) I/O connector configurations. It distinguishes this module from standard generic PMC interface variants that may use rear-panel I/O routing through the carrier board.
Q2: Is the PMC422FP backward compatible with legacy VME systems? A2: Yes, provided the host VME carrier board features a standard PMC mezzanine slot and the system BIOS/firmware supports PCI-to-VME bridge configuration. It is essentially a bridge between the PCI mezzanine bus and your field-level instruments.
Q3: How do I resolve an “Interrupt Request (IRQ) Conflict” with this module? A3: If the system fails to initialize, check the BIOS or operating system resource manager to ensure no other device on the host carrier is sharing the same IRQ. You may need to adjust the jumper settings on the carrier board or modify the OS device resource file to assign a dedicated interrupt lane to the PMC422FP.
