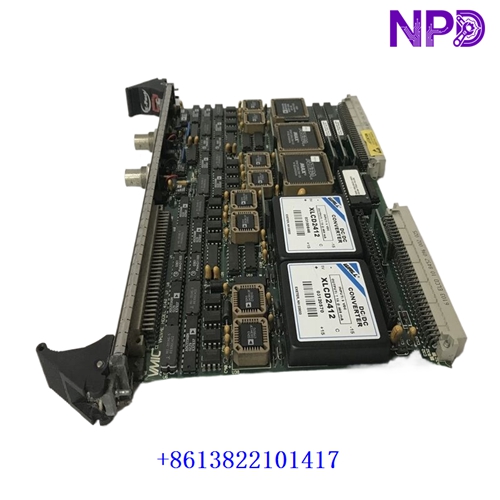

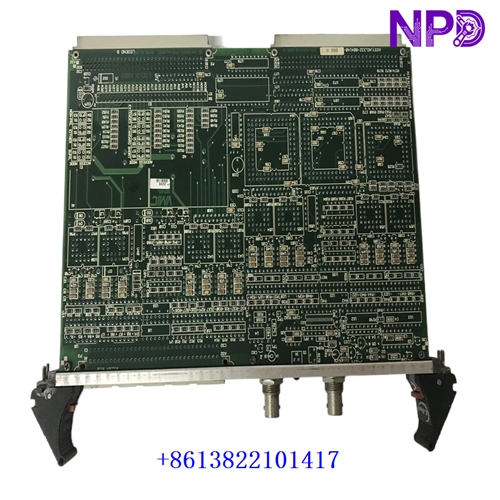

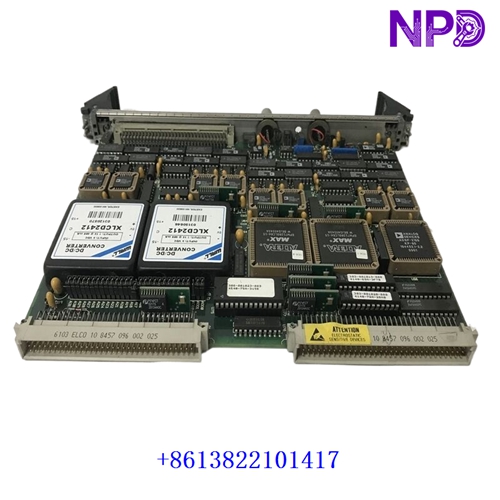

The GE Fanuc VMIVME-4140 is a 32-channel, 12-bit analog output board designed for VMEbus-based industrial control, data acquisition, and automated test systems. Each channel has a dedicated digital-to-analog converter (DAC), allowing individual analog output generation. The board supports software-selectable unipolar and bipolar voltage ranges, random channel updates, and synchronized updates through double-buffered outputs. Built-in self-test and automatic calibration features support system diagnostics and maintenance. This model is listed in the Abaco Systems product portfolio as the VME-4140 and has entered the Restricted Production Phase, so availability should be confirmed before ordering.
VMIVME-4140
Product Parameters and Datasheet
Brand: GE Fanuc / GE
Model: VMIVME-4140
Series: VMIVME Embedded Systems
Product Name: 32-Channel 12-Bit Analog Output Board
Product Type: VMEbus Analog Output Module
Number of Channels: 32 analog output channels
Resolution: 12-bit per channel
DAC Configuration: One dedicated DAC per channel
Output Voltage Ranges: 0 to +2.5 V, 0 to +5 V, 0 to +10 V; ±2.5 V, ±5 V, ±10 V
Maximum Output Current: 10 mA per channel
Output Impedance: 0.8 Ω
Update Modes: Random update and software or external synchronous update
Calibration: Automatic calibration initiated by reset or software command
Diagnostics: Onboard self-test
Interface: VMEbus
Form Factor: VME board
Place of Manufacture: Not confirmed for the individual unit
Product Status: Restricted Production Phase; confirm current availability
Dimensions: Verify against the applicable hardware documentation
Weight: Not confirmed
Country of Origin: Verify product label and shipping documentation
Power Requirements: VME system power; verify rail requirements in the hardware manual
Discontinued: Lifecycle status should be confirmed with the supplier
