Description
The GE VMIVME-7700 350-007700-111000 H is a high-performance, single-slot VMEbus Single Board Computer (SBC) based on the Intel Celeron or Pentium III processor architecture. This module is designed to provide high-speed processing power for embedded industrial applications, offering a rich set of I/O features including Ethernet, serial ports, and video output. The “H” revision indicates a specific hardware lifecycle stage, ensuring reliable performance in legacy system maintenance and modern industrial control environments.
For more high-performance computing modules, visit our GE VMIVME-7700 specialized hardware inventory.
Technical Datasheet
Product Identification
- Model Number: VMIVME-7700
- Part Number: 350-007700-111000 H
- Manufacturer: GE Fanuc / VMIC
- Bus Architecture: VME64 (VMEbus)
Physical Characteristics
- Dimensions: 6U Single-slot VME (approx. 233 mm x 160 mm)
- Weight: 0.85 kg
- Country of Origin: USA
Operational Specifications
- Processor: Intel Celeron / Pentium III (Speed varies by config)
- Memory: Up to 512 MB SDRAM (via SODIMM)
- Storage: Integrated IDE controller and Flash support
- Network: 10/100 Mbps Ethernet Port
- I/O Ports: 2x RS-232, VGA, Keyboard/Mouse (PS/2), and USB
- Operating Temperature: 0°C to +55°C

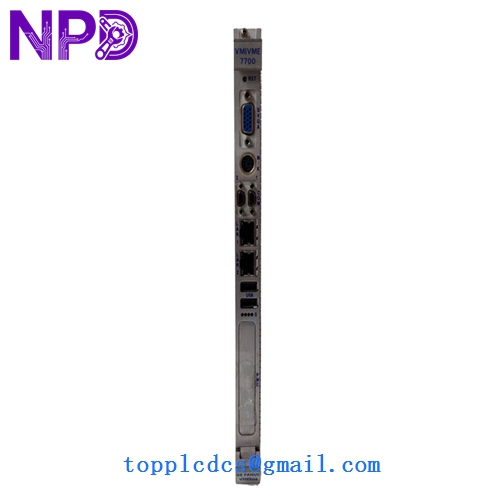

GE VMIVME-7700 350-007700-111000 H

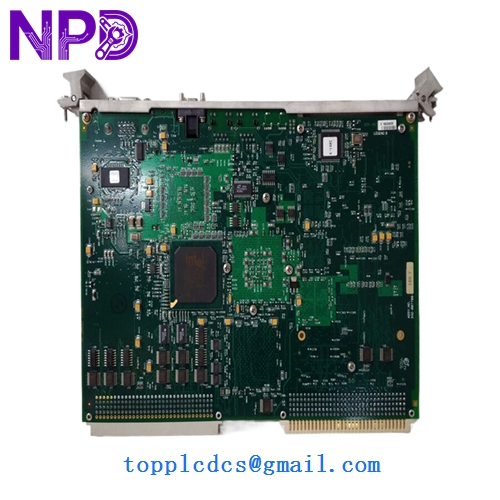

GE VMIVME-7700 350-007700-111000 H

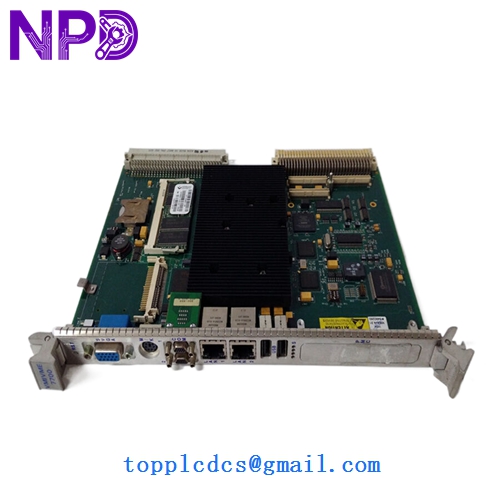

GE VMIVME-7700 350-007700-111000 H
Application Fields
The VMIVME-7700 is utilized in high-reliability processing tasks across several industries:
- Aerospace & Defense: Used in flight simulators and ground-based radar processing systems.
- Semiconductor Manufacturing: Controlling wafer processing equipment and high-speed inspection tools.
- Energy Management: Serving as the central processing unit for power substation automation.
- Industrial Automation: Managing complex real-time data acquisition and motion control loops.
Product Usage Instructions
- Chassis Compatibility: Ensure your VME backplane is compatible with VME64 standards. Check that the power supply rails (+5V, +12V, -12V) meet the SBC’s requirements.
- Configuration Jumpering: Before insertion, verify the jumper settings for BIOS boot order and VME system controller functions (First slot vs. slave slot).
- Installation: Insert the module into the designated slot, ensuring the injectors/ejectors are used to seat the 96-pin DIN connectors firmly into the backplane.
- Operating System Setup: The VMIVME-7700 supports Windows NT/2000, VxWorks, and Linux. Ensure you have the correct VMIC-specific drivers for the Ethernet and Video chipsets.
- Cooling: Because this is a high-performance CPU module, ensure the VME rack has forced-air cooling. Blocked airflow can cause the processor to throttle or lead to system instability.
Common Questions & Answers
Q: Does the VMIVME-7700 support PMC expansion? A: Yes, the VMIVME-7700 typically includes a PMC (PCI Mezzanine Card) slot on the board, allowing for additional I/O like specialized networking or fieldbus interfaces.
Q: Can I upgrade the RAM on this board? A: The board uses standard SODIMM slots. However, due to the chipset limitations of the Pentium III/Celeron era, it is limited to a maximum of 512 MB of SDRAM.
Q: What is the “H” at the end of the part number? A: The “H” usually refers to the hardware revision. It signifies specific component updates or PCB changes made by the manufacturer during the product’s lifecycle to maintain compliance or performance standards.
