Description
Product Introduction
⚙️ Product: VMIVME-017807-414001
🏷️ Brand: GE / GE Fanuc
🖥️ Series: VMIVME-7807
🔧 Product Type: VME Single Board Computer

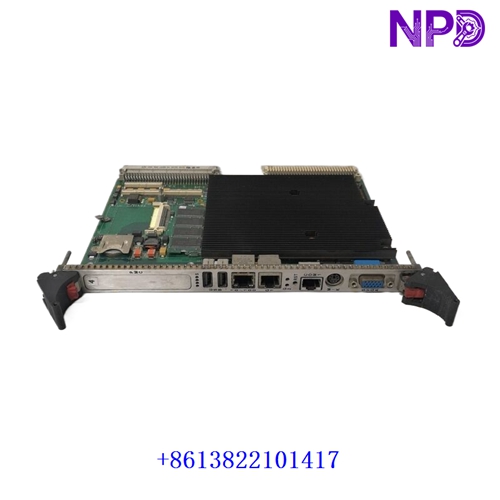

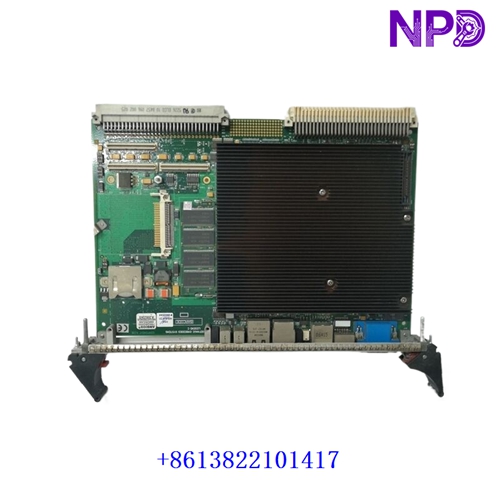

The GE VMIVME-017807-414001, also identified as 350-0001007807-414001D, is a VMEbus single-board computer designed for industrial embedded computing and control applications. Available references identify it as part of the GE VMIVME-7807 family.
💻 The VMIVME-7807 family uses a single-slot VMEbus Eurocard form factor and is designed for applications requiring embedded processing, VMEbus communication, and network connectivity. The platform supports DDR SDRAM and CompactFlash storage, with configuration-dependent memory and storage options.
🔌 Before installation, verify the exact 414001D hardware version, processor configuration, memory capacity, CompactFlash configuration, VMEbus chassis compatibility, and installed operating system.
Product Datasheet
🔹 Model: VMIVME-7807
🔹 Part Number: VMIVME-017807-414001
🔹 GE Part Number: 350-0001007807-414001D
🔹 Brand: GE / GE Fanuc
🔹 Product Type: VME Single Board Computer
🔹 Bus Architecture: VMEbus
🔹 Form Factor: Single-Slot VME Eurocard
🔹 Memory: DDR SDRAM, Configuration Dependent
🔹 Storage: CompactFlash, Configuration Dependent
🔹 Network: Dual Gigabit Ethernet, Configuration Dependent
🔹 Power Supply: VMEbus Backplane Supply
🔹 Mounting: VME Chassis / Industrial Computer Rack
🔹 Dimensions: Approx. 233 × 160 mm PCB format*
🔹 Weight: Approx. 0.8–1.0 kg*
🔹 Country of Origin: USA*
*Exact processor, memory, storage, interfaces, weight, and other specifications vary by hardware configuration and revision. Verify the actual board markings before installation. The VMIVME-7807 family is documented as supporting VMEbus, DDR SDRAM, CompactFlash, and dual Gigabit Ethernet on applicable configurations.
Typical Applications
🏭 Industrial embedded control
⚙️ VME-based automation systems
🖥️ Industrial computing platforms
⚡ Power and energy control systems
📊 Data acquisition and monitoring
🔄 Legacy VME system replacement
🛠️ GE VMIVME system maintenance
Installation & Use
🛠️ Before installation, confirm the VMIVME-7807 hardware revision, CPU and memory configuration, VME chassis compatibility, storage device, and required software environment.
🔌 Power down the VME chassis before inserting or removing the board. Use appropriate ESD protection and make sure the board is fully seated in the correct VME slot. Connect the required network and peripheral interfaces according to the system design.
💻 After startup, check POST status, operating-system boot, memory recognition, CompactFlash operation, Ethernet connectivity, and VMEbus communication.
⚠️ For replacement applications, record the original software and hardware configuration before removing the existing SBC. Perform a complete system communication and application test before returning the industrial computer to service.
