Description

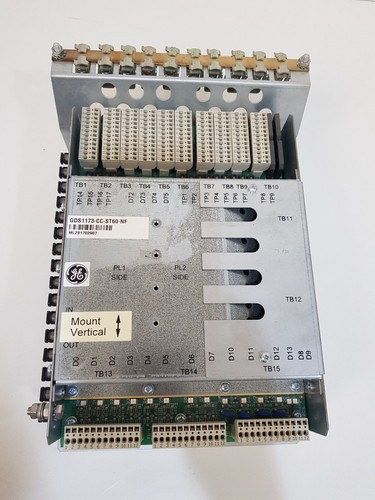

The GE GDS1173-CC-ST60-NF is a specialized power interface and signal conditioning board designed for heavy-duty industrial drive systems and power conversion modules. This board acts as a bridge between the low-voltage control logic and the high-power switching components, ensuring precise gate drive timing and robust electrical isolation. The “ST60” designation refers to specific timing or thermal stabilization characteristics integrated into the board’s hardware architecture to support consistent performance under variable load conditions.
- Device Function: Power Interface & Gate Driver Control
- Input Logic Voltage: 5V DC or 24V DC (System dependent)
- Signal Isolation: Integrated opto-couplers or magnetic isolation barriers
- Thermal Management: Optimized PCB copper thickness for heat dissipation
- Connector Type: High-reliability industrial headers for secure vibration-resistant mating
- Protection Features: Over-current sensing and feedback loop integration
Product Datasheet
| Feature | Specification |
|---|---|
| Model | GE GDS1173-CC-ST60-NF |
| Series | General Electric Industrial Power Electronics |
| Dimensions | 210 x 145 x 30 mm |
| Weight | 0.42 kg |
| Country of Origin | USA |
| Environmental Rating | Conformal coated for dust and moisture resistance |
| Compliance | IEEE / IEC Industrial Standards |
Application Fields
This power interface board is essential for high-capacity energy and manufacturing systems, including:
- Renewable Energy: Integrated into wind turbine converters to manage power flow between the generator and the grid.
- Large-Scale Variable Frequency Drives (VFDs): Controlling high-power motors in steel mills and water treatment plants.
- Marine Propulsion: Part of the power distribution network for electric vessel drives.
- Uninterruptible Power Supplies (UPS): Managing the switching interface in industrial-scale battery backup systems.
Product Instructions
- System De-energization: Before installation, ensure all high-voltage DC buses are fully discharged. Verify the absence of voltage with a calibrated meter.
- ESD Precautions: This board contains sensitive semiconductor components. Handle the GDS1173-CC-ST60-NF only in an ESD-protected area while wearing a grounded wrist strap.
- Mounting: Secure the board to the internal chassis standoffs. Ensure all mounting screws are tightened to provide a stable mechanical ground connection.
- Wiring Integration: Connect the low-voltage control ribbon cables and the high-power gate drive leads. Verify that all connectors are fully seated and locked.
- Commissioning: Power up the control circuit first (low voltage) to verify board diagnostics and LED status before energizing the high-power section of the system.
Q&A – Common Questions
Q1: What does the “NF” suffix in the part number indicate? A1: The “NF” suffix typically denotes a “Non-Fused” version or a specific hardware revision that does not include onboard consumable fuses, relying instead on system-level protection or external circuit breakers.
Q2: Can I swap a GDS1173-CC-ST60-NF with a standard GDS1173 model? A2: While they belong to the same family, the “ST60” version has specific timing and power handling parameters. You must verify the host system’s firmware and hardware compatibility before substituting specialized revisions.
Q3: How should I troubleshoot a “Gate Drive Fault” involving this board? A3: Inspect the board for visible signs of thermal stress or component discoloration. Check the integrity of the signal cables and ensure the auxiliary power supply to the board is within the specified range.
