Description

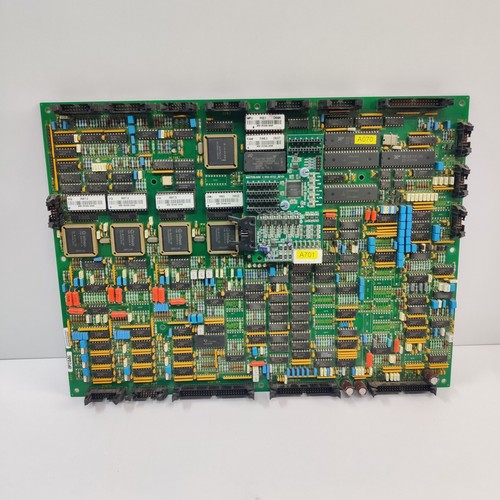

The Gutor Electric 0P2446 (640-1) is the Main Processor/Control Card used in Gutor’s industrial uninterruptible power supply (UPS) systems (such as the PXP or WGC series). This module acts as the “brain” of the UPS, responsible for real-time monitoring of input/output voltage, frequency regulation, battery management, and inverter control. It continuously performs high-speed calculations to ensure the output power remains clean and stable, even during utility supply disturbances or transitions to battery power.
Key Technical Specifications
| Parameter | Value/Description |
| Part Number | 0P2446 / 640-1 |
| Component Type | Main Processor / Control Logic PCB |
| System Compatibility | Gutor PXP / WGC / Industrial UPS Series |
| Function | Inverter Control, Sync & Battery Management |
| Inputs | AC/DC sensing, Synchronization signals, Sensor feedback |
| Outputs | PWM (Pulse Width Modulation) drive signals to IGBTs |
| Interface | RS-232/RS-485 for monitoring, local HMI interface |
| Operating Voltage | 24V DC internal logic supply |
| Environment | Industrial/Marine-grade (High temperature/EMI tolerance) |
Recommended Related Models
These modules are essential for the operation of Gutor UPS systems and are often replaced or serviced alongside the 640-1 processor:
- 0P2447 / 640-2: Auxiliary/Secondary Logic Card
- 0PXXXX / 640-3: Driver/Gate Interface Card (IGBT Control)
- 0PXXXX / 640-4: Analog Signal Processing/Measurement Card
- Gutor PXP Display Panel: Remote/Local HMI
- IGBT Power Module: The power-switching stage controlled by the 640-1
- Rectifier Control Card: For AC-to-DC conversion stage
- Battery Interface PCB: For charge current and voltage monitoring
- Fan/Cooling Controller: Thermal management board
Important Technical Note: The 640-1 processor card contains the firmware and site-specific parameters (e.g., bypass voltage limits, inverter frequency, and battery float voltages). If replacing this card, you must perform a parameter restore using the Gutor serial communication software. Failure to load the correct configuration will result in a “System Calibration Fault” and could prevent the inverter from starting, or worse, cause the UPS to output incorrect voltage levels to your critical loads.
