Description

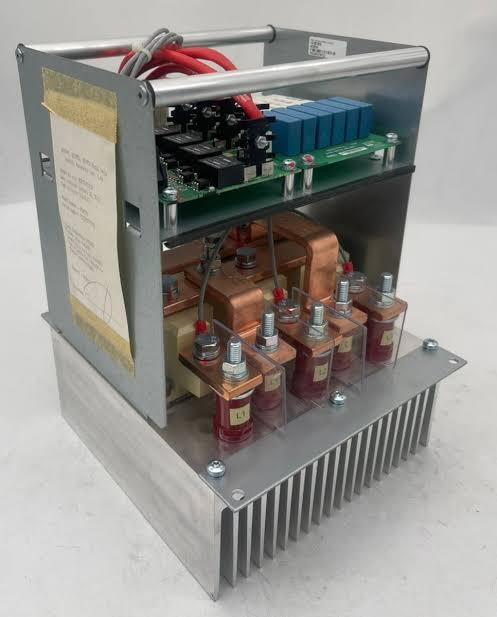

The GUTOR 0C0950 is a critical Rectifier Module used in GUTOR industrial UPS systems (often found in the PXC, WGC, or similar series). As an “online double-conversion” UPS, the GUTOR system relies on this rectifier module to convert incoming AC utility power into a stable DC bus voltage. This DC bus then feeds the inverter (to provide clean output power to the load) and simultaneously charges the battery bank. The 0C0950 is a high-reliability component designed for harsh industrial environments, such as oil, gas, and power generation facilities.
📋 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Rectifier Module |
| Model/Part Number | 0C0950 |
| Manufacturer | GUTOR Electronic (Schneider Electric) |
| Core Function | AC to DC power conversion and battery charging |
| System Compatibility | GUTOR industrial UPS product lines |
| Technology | Controlled thyristor or IGBT-based rectification (depending on version) |
| Protection | Over-current, over-voltage, and thermal monitoring |
| Mounting Style | Rack-mounted module with quick-connect interface |
🚀 Key Features for Industrial Reliability
- Load Sharing: These modules are often designed to operate in parallel; the 0C0950 supports redundant configurations to ensure that even if one rectifier fails, the system continues to support the load.
- Controlled Soft Start: Prevents inrush current when the UPS is switched on or when utility power returns after an outage, protecting the upstream distribution infrastructure.
- Intelligent Monitoring: Interfaces with the UPS control logic to provide real-time status, such as input current, output voltage, and module temperature.
- Thermal Management: Engineered with integrated heatsinks for high-ambient temperature environments common in industrial motor control centers (MCCs).
⚠️ Integration and Maintenance Note
Because this module handles the primary energy conversion for your critical load, maintenance is vital to prevent unscheduled outages:
- Airflow/Cooling: The most common cause of failure for the 0C0950 is dust buildup on the internal heatsinks or fan failure. Perform periodic vacuuming of the air intake and confirm all fans are spinning freely.
- Capacitor Aging: Industrial rectifiers utilize large electrolytic capacitors to smooth the DC output. In high-heat environments, these components have a finite lifespan (typically 5–10 years). Check for any signs of “bulging” or leakage.
- Module Replacement: When replacing the 0C0950, ensure the system is in “Manual Bypass” mode if the UPS does not support “Hot-Swapping” of the rectifier stage. Always verify the DC bus is fully discharged before removing the module, as hazardous energy can remain in the DC filter capacitors.
- Firmware: Ensure that the module’s internal firmware is compatible with the main system controller’s version, especially after a replacement or repair.
