Description
Technical Specifications
| Feature | Specification |
|---|---|
| Model | STG 90-03 |
| Part Number | 505-00-005-03 |
| Device Type | All-electric Direct Acting Actuator |
| Origin | Germany |
| Weight | Approx. 13.5 kg |
| Dimensions | 225 mm x 195 mm x 205 mm |
| Torque Output | 9.4 Nm (Continuous) / 28 Nm (Peak) |
| Rotation Angle | 68° |
| Operating Voltage | 24V DC (18V to 32V range) |
| Protection Class | IP55 |

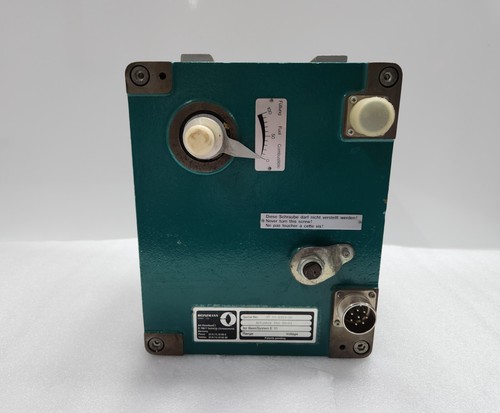

The Heinzmann STG 90-03 is a high-performance electric actuator motor designed for the precise control of diesel and gas engines. Featuring a brushless DC motor design, it provides fast response times and high positioning accuracy for fuel racks or butterfly valves, ensuring optimal combustion and engine stability across various load conditions.
Product Q&A
Q: What are the primary applications for the STG 90-03 actuator? A: It is widely used in medium to large combustion engines, turbines, and industrial steam valves where precise electronic speed or position control is required.
Q: Does this actuator require an external linkage system? A: Yes, the STG 90-03 typically connects to the engine’s fuel system via a mechanical linkage, though its high torque capability allows it to drive most standard governor shafts directly.
Q: Is maintenance required for the internal motor components? A: Because it utilizes a brushless DC motor and permanent lubrication, the unit is largely maintenance-free under normal operating conditions, significantly reducing downtime compared to hydraulic alternatives.
