Description
Product Overview
The Hernis HE407TXT 16-Channel Printed Circuit Board is an electronic component associated with HERNIS Scan Systems marine and industrial video surveillance equipment. It is designed for use within compatible CCTV monitoring systems, supporting video surveillance functions across a multi-channel installation.
HERNIS surveillance systems are used in demanding marine and offshore environments, including engine rooms, process areas, and other locations requiring centralized video monitoring. The HE407TXT board is intended for maintenance and replacement applications where the existing system uses the matching hardware configuration.
Before ordering, verify the board revision, connectors, identification labels, and compatibility with the installed HERNIS surveillance system. The exact circuit-level function of the HE407TXT PCB should be confirmed against the manufacturer’s documentation.

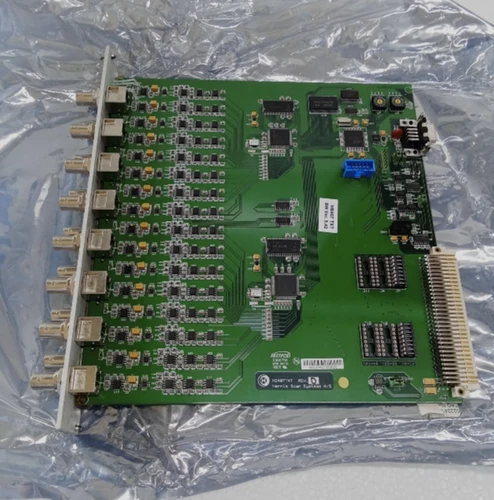

Hernis HE407TXT
Key Features
- Manufacturer: HERNIS Scan Systems
- Model: HE407TXT
- Product Type: 16-Channel Surveillance PCB
- Application: CCTV video surveillance systems
- Designed for compatible HERNIS monitoring equipment
- Intended for multi-channel surveillance installations
- Suitable for maintenance and replacement of compatible circuit boards
- Board revision and system compatibility should be verified before installation
Technical Specifications
| Specification | Details |
|---|---|
| Brand | HERNIS Scan Systems |
| Model | HE407TXT |
| Series | HERNIS Video Surveillance System |
| Product Name | 16-Channel CCTV Surveillance PCB |
| Part Number | HE407TXT |
| Place of Manufacture / Origin | Not independently verified |
| Product Status | Confirm actual condition with seller |
| Channel Capacity | 16-channel system designation; verify exact board function |
| Main Application | CCTV surveillance and video monitoring |
| Video Interface | Not verified for this exact PCB |
| Communication Interface | Not verified |
| Dimensions | Not verified |
| Weight | Not verified |
| Country of Origin | Verify the individual item’s label; seller listings may vary |
| Power Requirements | Not verified; consult the equipment documentation |
| Discontinued | Not verified |
Typical Applications
- Marine CCTV surveillance systems
- Offshore platform video monitoring
- Engine-room surveillance
- Industrial process-area monitoring
- Centralized multi-channel video surveillance
- Maintenance of existing HERNIS CCTV installations
- Replacement of a matching HE407TXT PCB
Frequently Asked Questions
Q1: What is the HERNIS HE407TXT?
It is a circuit board associated with HERNIS Scan Systems surveillance equipment, listed as a 16-channel component.
Q2: What does the 16-channel designation mean?
It refers to the associated 16-channel surveillance system configuration. The precise function of this PCB within the video signal chain should be verified from the board documentation.
Q3: Is the HE407TXT compatible with every HERNIS CCTV system?
No. Compatibility depends on the host system, board revision, connectors, and video architecture. Confirm the original part number before purchasing.
Q4: Does the board support video input or video output?
The exact interface configuration has not been independently confirmed for this specific board. Check the connector labels, board markings, and system manual before connecting video equipment.
Q5: What should be checked before ordering?
Verify the HE407TXT part number, revision, connector layout, physical condition, and whether the board has been tested in a compatible surveillance system.
Q6: Can the PCB be installed as a direct replacement?
Only when the replacement board matches the installed system’s requirements. Installation and commissioning should follow the manufacturer’s service procedures.
Related HERNIS Surveillance Equipment and Components
The following items are related HERNIS equipment or component categories for sourcing research. They are not guaranteed direct replacements for the HE407TXT.
- HERNIS HE407TXT Revision V — Related 16-channel surveillance system variant
- HERNIS HE407TXT Revision N — Listed PCB revision variant
- HERNIS HE407TXT Revision 0 — Related system version
- HERNIS SCAN Systems CCTV Equipment — Marine video surveillance systems
- HERNIS Camera Control Components — Camera control and monitoring
- HERNIS Video Output Boards — Video signal interface components
- HERNIS Video Processing Boards — Surveillance signal processing
- HERNIS Camera Interface Boards — Camera system connections
- HERNIS CCTV Control Boards — Surveillance control electronics
- HERNIS Video Monitoring Systems — Centralized video monitoring
- HERNIS Camera Assemblies — Marine and offshore cameras
- HERNIS Video Distribution Components — Video signal distribution
- HERNIS Surveillance Power Supply Units — System power components
- HERNIS Control Cabinet Assemblies — Surveillance system electronics
- HERNIS Marine CCTV Spare Parts — Replacement parts for installed systems
Ordering Information
When requesting a quotation, specify HERNIS HE407TXT 16-Channel PCB and provide clear photographs of both sides of the board, the product label, revision markings, and connectors.
Confirm the item’s condition, testing status, exact PCB function, and compatibility with the installed HERNIS surveillance system before purchase.
