Description
- Model: ABB UFC718AE101 (HIEE300936R0101)
- Brand: ABB (Switzerland)
- Series: UNITROL / UNIGLYPH / MEGATROL Power Electronics
- Core Function: Signal processing and interface board for power converters
- Product Type: Power Controller Interface Module
- Key Specs: 24 V DC supply, high-speed gate driver interface, optical/electrical I/O

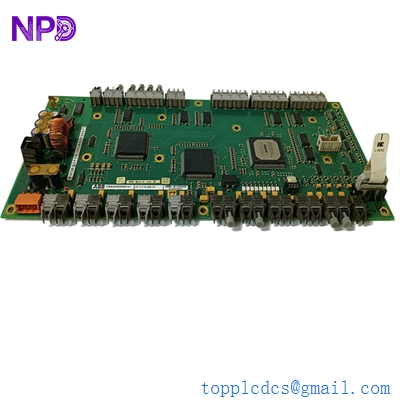

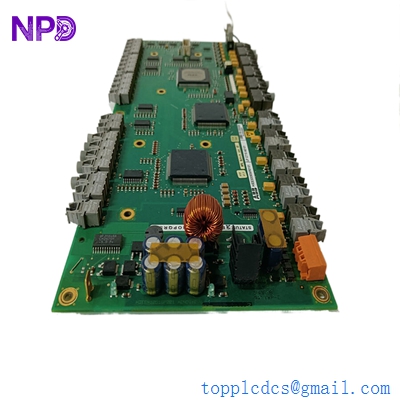

ABB UFC718AE101 HIEE300936R0101
Key Technical Specifications
- Main Hardware ID: HIEE300936R0101
- Product Revision: AE101 (Optimized for improved thermal stability)
- Power Supply: 24 V DC (±10%)
- Input/Output: Multi-channel analog/digital interface for thyristor bridge control
- Isolation: High-voltage galvanic isolation between control and power sections
- Connectivity: Proprietary ABB ribbon cable headers for converter communication
- Mounting: Rack-mounted Eurocard format
- Indicators: On-board diagnostic LEDs for power health and status
- Coating: Conformal coating for protection against conductive dust/humidity
Application Scenarios & Pain Points
The UFC718AE101 is a critical “nerve center” in ABB power conversion systems, particularly the UNITROL series excitation systems. It sits between the high-level logic controller and the actual thyristors that handle thousands of amps. If this board glitches, the synchronization of the power pulses is lost, which usually leads to a “Converter Fault” or, worse, blown fuses in the power bridge. In my experience, these boards are often the victims of “hostile environments”—exposure to heat and carbon brush dust in generator rooms can cause tracking and short circuits on the PCB.
1. Large Generator Excitation (UNITROL P)
Used to regulate the field current of large synchronous generators in power plants, ensuring stable voltage output under varying grid loads.
2. Static Frequency Converters (SFC)
Found in MEGATROL units used for gas turbine starting, where precise control of the power electronics is required to ramp up turbine speed.
3. Industrial DC Drives
Used in specialized high-power DC motor applications, such as mine hoists or metal rolling mills, where torque control is mission-critical.
Case Study: The “Converter Fuse” Mystery
Background: A gas turbine plant using an ABB UNITROL system was experiencing recurring “Overcurrent” trips. Each time, they found one of the high-speed semiconductor fuses on the thyristor bridge had blown.
The Problem: The site team replaced the fuses and even the thyristors, but the problem returned every few weeks. We were called in to look at the signal pulses. Using a high-speed oscilloscope, we found that the UFC718 board was occasionally “missing” a firing pulse due to a failing optocoupler on the board. This caused an unbalanced load on the bridge, blowing the fuse.
The Solution: We supplied a tested UFC718AE101 (HIEE300936R0101) from our emergency stock. Before shipping, we verified the pulse timing on our simulation rig to ensure ±1 microsecond accuracy across all channels.
The Result: Since the swap, the system has operated for 9 months without a single fuse failure.
- Avoided Loss: Each fuse replacement and subsequent downtime cost the plant roughly $35,000.
- Takeaway: If you are blowing fuses on your power bridge without a clear load fault, the UFC718 interface is your primary suspect.
ABB UFC718AE101 HIEE300936R0101
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Workload |
| UFC718AE01 | UFC718AE101 | ✅ Direct | AE101 has superior component aging specs | Plug & Play |
| UFC718BE101 | UFC718AE101 | ⚠️ Limited | Different I/O configuration for specific bridges | Check bridge type |
| HIEE300936R0001 | HIEE300936R0101 | ✅ Direct | R0101 is the standard updated revision | Plug & Play |
Engineer’s Advice: Always check the “R” number suffix. The HIEE300936R0101 is the standard for most UNITROL P applications. If you see a “BE” version instead of “AE,” be careful—the physical connectors might look the same, but the internal logic for the gate firing sequence might differ. When in doubt, match the HIEE number exactly.
Troubleshooting Quick Reference
| Symptom | Possible Cause | UFC718 Related? | Quick Check | Action |
| “Supply Fault” LED | Internal Regulator Failure | ✅ High | Check 24V DC at the input terminal | Replace board |
| Unbalanced Bridge Current | Firing Pulse Missing | ✅ High | Use a scope to check gate pulses | Replace board immediately |
| Intermittent “Temp” Fault | Component Overheating | ✅ High | Check board temp with IR thermometer | Improve cooling/Replace |
| “Communication Error” | Ribbon Cable Issue | ⚠️ Medium | Reseat all ribbon cable connectors | Clean pins/Replace cable |
Expert Maintenance Tips:
- Carbon Dust is the Enemy: ❗ Warning! If your excitation system is near the generator’s carbon brushes, dust will settle on this board. Carbon dust is conductive. If you see a gray film on the board, clean it with electronic contact cleaner and a soft brush. This prevents 90% of “phantom faults.”
- Ribbon Cable Seating: The connectors on the UFC718 are high-density. When swapping the board, ensure the locking tabs on the ribbon cables “click” into place. A slightly loose cable will cause erratic firing pulses that can destroy your thyristors.
- Check the 24V Rail: Before installing a new board, use a Fluke 115 to verify your 24V supply is “clean.” If the ripple is higher than 200mV, your power supply is failing and will eventually fry the new UFC718 as well.
