Description
The HIMA 996920302 K9203 is a high-precision thermocouple input module designed for safety-related automation systems. Operating within the renowned HIMA HIMatrix or HIQuad frameworks, this module ensures safe and reliable processing of temperature signals in critical industrial environments, providing high diagnostic coverage and fault-tolerant performance.
Product Datasheet
- Model Number: 996920302
- Part Number: K9203
- Manufacturer: HIMA
- Product Type: Thermocouple Input Module
- Input Channels: Multiple isolated channels supporting various thermocouple types (J, K, T, E, etc.)
- Dimensions: 130 mm x 40 mm x 250 mm
- Weight: 0.85 kg
- Country of Origin: Germany
- Safety Rating: Up to SIL 3 according to IEC 61508

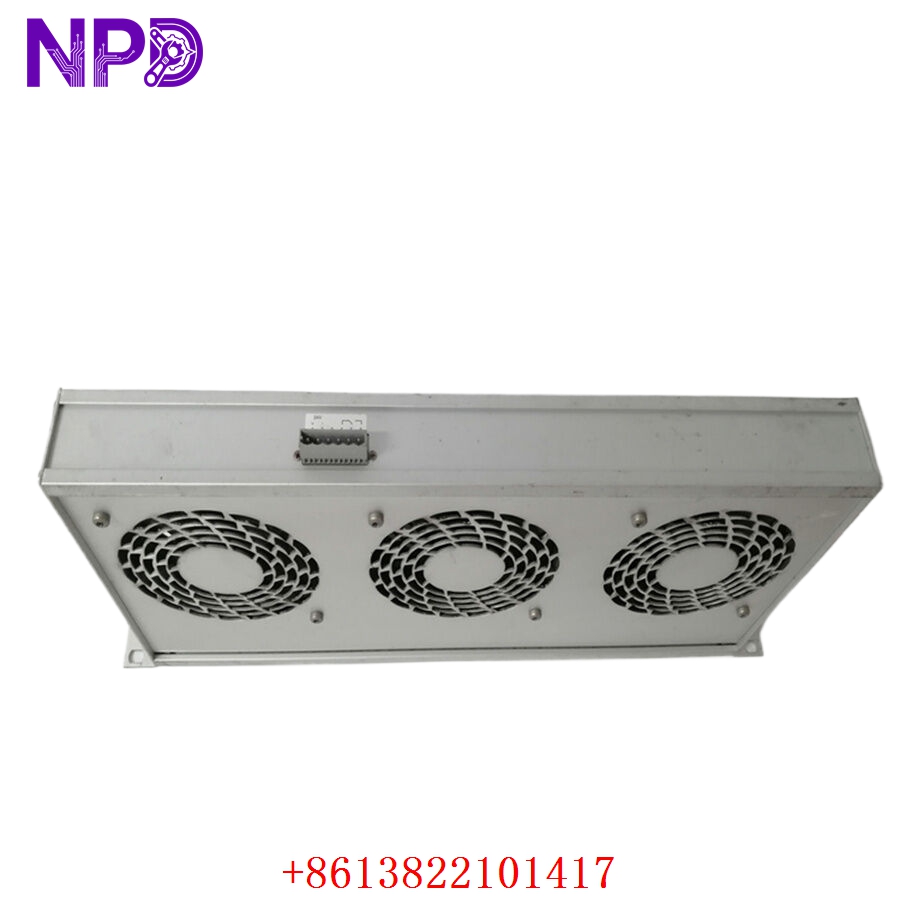

HIMA K9203 996920302

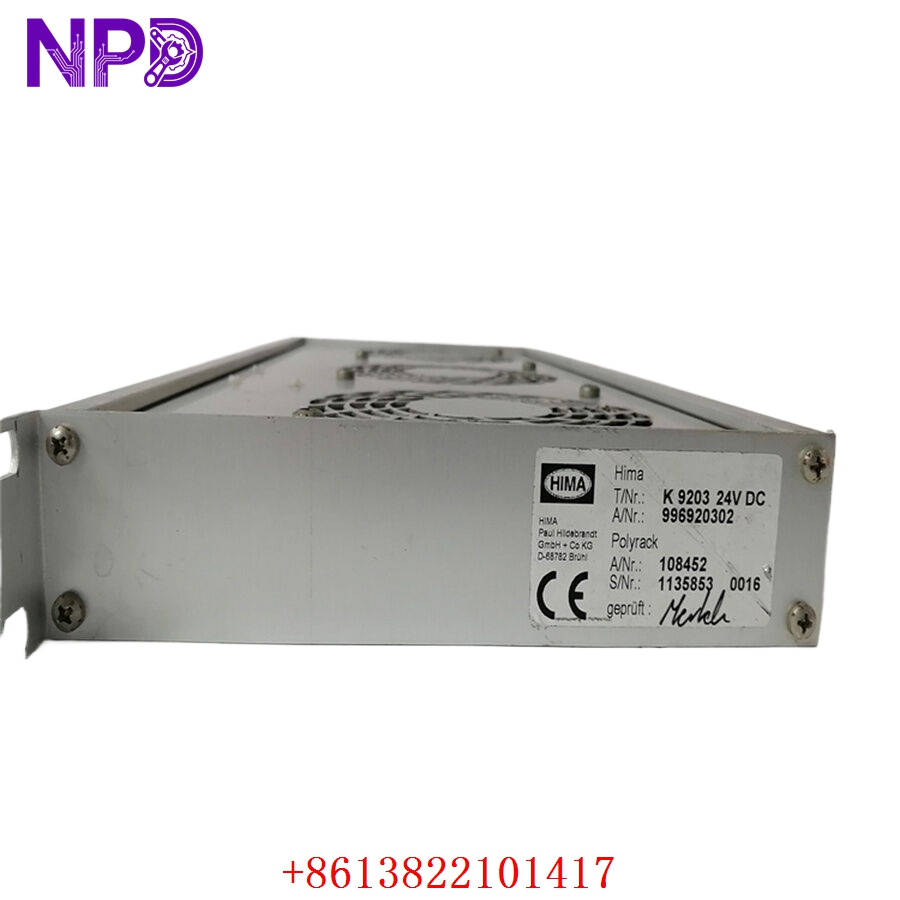

HIMA K9203 996920302
HIMA K9203 996920302
Application Fields
This module is widely implemented in industries where safety and precise temperature monitoring are non-negotiable. Key sectors include:
- Oil and Gas: Monitoring process temperatures in pipelines, distillation columns, and refineries.
- Chemical and Petrochemical: Emergency Shutdown Systems (ESD) and Fire and Gas (F&G) systems monitoring exothermic reactions.
- Power Generation: Turbine temperature tracking and boiler control loops.
- Burner Management Systems (BMS): Flame and exhaust temperature verification to ensure safe combustion processes.
Product Instructions
To ensure proper functionality and maintain the system’s safety integrity, adhere to the following usage instructions:
- Installation: Mount the module into the designated slot of the subrack while the system is powered off. Ensure the grounding connections are secure to eliminate signal noise.
- Wiring: Connect the thermocouple wires directly to the terminal block. Use appropriate extension or compensating cables matched to the thermocouple type to avoid cold-junction errors.
- Configuration: Program the input parameters using HIMA SILworX software. Select the correct thermocouple type and set the appropriate safe limit thresholds.
- Maintenance: Regularly test the module’s diagnostic functions and check for any drift in temperature readings during scheduled plant turnarounds.
Questions and Answers
Q: What should I do if the module displays a channel fault indicator? A: Check the wiring of the specific thermocouple channel for open circuits or short circuits. If the wiring is intact, verify the configuration settings in the software or contact technical support for module diagnostics.
Q: Does the K9203 module support cold-junction compensation? A: Yes, the module features integrated internal cold-junction compensation to ensure highly accurate temperature conversion directly from the termination point.
Q: Can this module be hot-swapped during operation? A: Hot-swapping depends on the specific HIMA rack and system configuration you are using. Always refer to your overall system architecture manual before attempting to replace modules under power.
Q: Where can I request a quote or get official technical support for this item? A: For pricing availability or to check stock on the HIMA 996920302 K9203, please reach out directly through our contact channel.
