Product Specifications
- Origin: Germany
- Weight: 1.15 lbs (0.52 kg)
- Dimensions: 7.9 inches x 1.2 inches x 5.1 inches (Standard H41q/H51q Form Factor)
- Output Current: 500 mA per channel (Short-circuit proof)
- Operating Voltage: 24 VDC
- Safety Integrity Level: Suitable for use in safety-related systems up to SIL 3 (IEC 61508)
- Channel Configuration: 8 digital outputs with comprehensive internal testing and monitoring

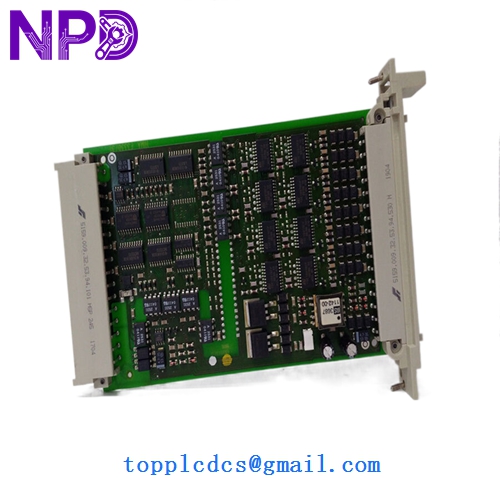

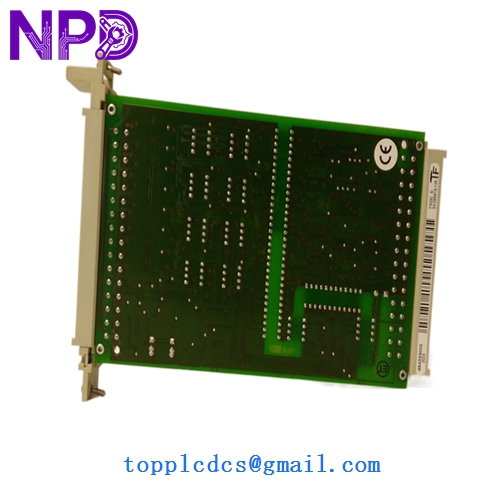

The HIMA F3330 is a robust 8-channel digital output module designed for use in safety-critical H41q and H51q systems to drive actuators, valves, and solenoids. Each high-side output is engineered with integrated safety logic that performs continuous self-tests, ensuring that any internal fault is detected and the system transitions to a de-energized “safe state.” Its high-reliability design is specifically tailored for Emergency Shutdown (ESD) and Fire and Gas (F&G) applications, where it provides deterministic switching and high immunity against environmental stressors and electrical interference.
HIMA F3330
HIMA F3330
HIMA F3330
Model Comparison: F3330 vs. Similar Models
The F3330 is distinguished from the F3331 or F3334 models primarily by its output current rating and monitoring capabilities. While similar modules might offer more channels or different current limits, the F3330 is optimized for standard 500 mA loads with a focus on high-side switching stability. Unlike non-safety modules, the F3330 includes specific read-back circuitry that allows the central module to verify the physical state of the output, providing a higher level of diagnostic coverage than the basic digital output variants found in standard PLC racks.
Operational Guidelines
- Safety Handling: Ensure the module is utilized within a certified HIMA safety rack to maintain the SIL 3 rating of the overall loop.
- Load Matching: Verify that the connected field device does not exceed the 500 mA per channel limit; exceeding this may trigger the module’s electronic short-circuit protection.
- Hot Swapping: While HIMA systems support modular replacement, always follow the system-specific “Hot Swap” procedures to ensure the safety program remains synchronized during the transition.
- External Power: Ensure the 24 VDC supply is stable and filtered, as fluctuations beyond the specified tolerance can lead to diagnostic errors or unintended channel shutdowns.
