Description
The HIMA F35 (982200416) is a high-performance Central Unit specifically designed for safety-related automation tasks. As a core component of the HIMatrix system, it provides the processing power and logic execution required for safety-critical applications up to SIL 3. This module integrates high-speed processing with robust communication interfaces, ensuring that industrial processes remain under strict control and fail-safe conditions.
Product Specifications
- Model Identification: HIMA F35 (Part Number: 982200416)
- Processor: High-performance RISC architecture
- Safety Level: Certified up to SIL 3 (IEC 61508)
- Input/Output Capability: Integrated digital and analog processing
- Communication: Ethernet (safeethernet), RS485, and system bus support
- Dimensions: 160 mm x 100 mm x 40 mm
- Weight: Approximately 0.45 kg
- Country of Origin: Germany

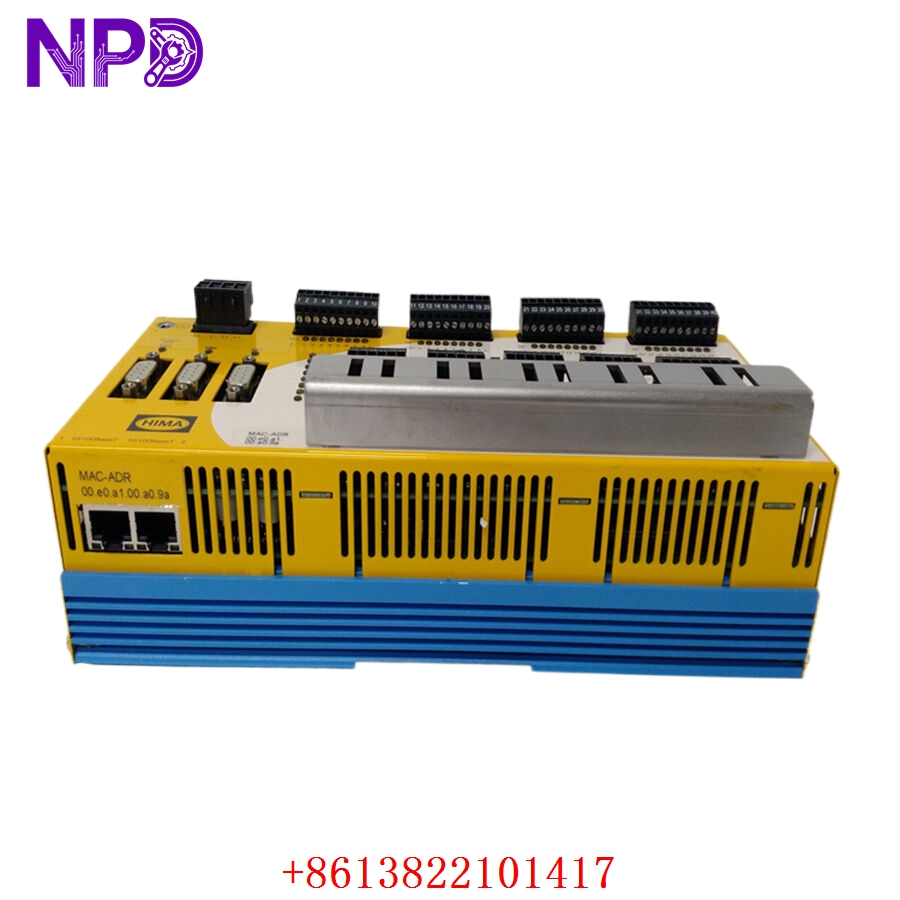

HIMA F35 982200416

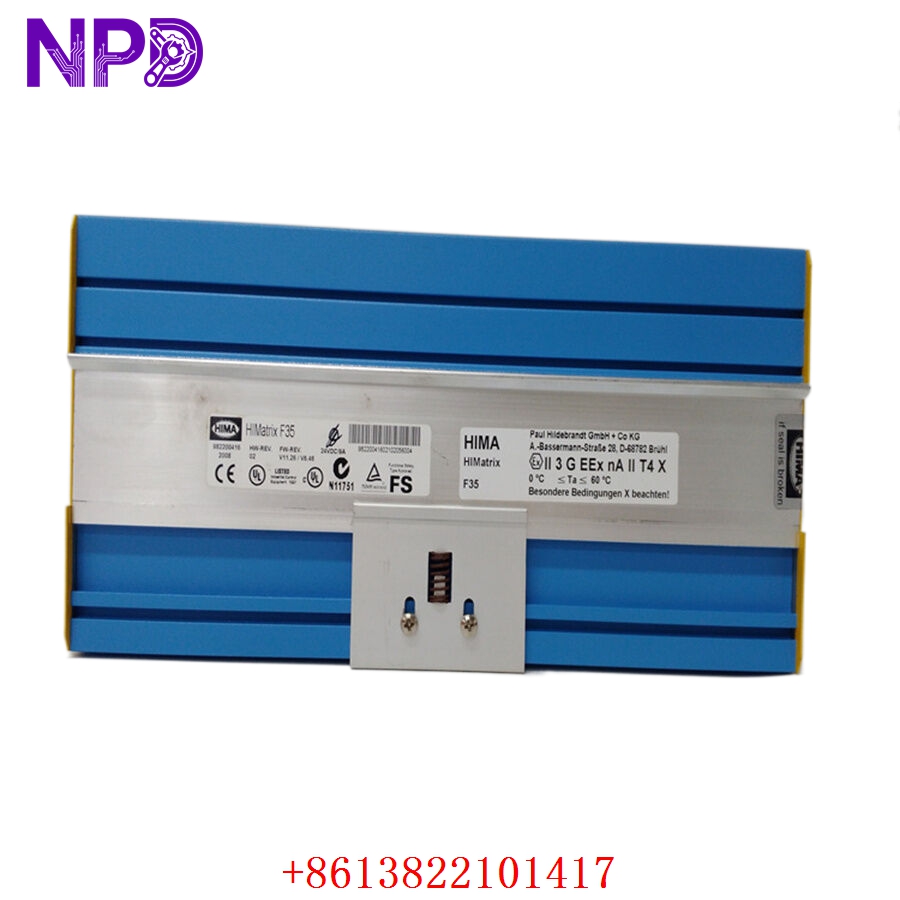

HIMA F35 982200416

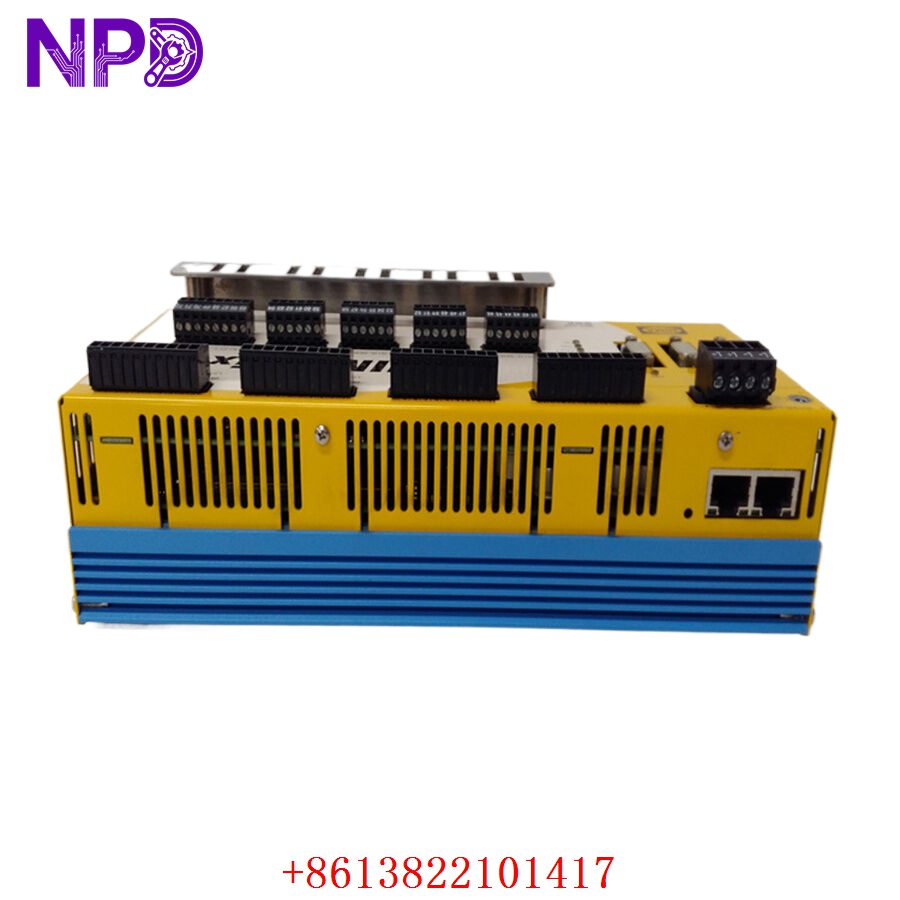

HIMA F35 982200416
Application Fields
The HIMA F35 is predominantly utilized in sectors where “failure is not an option.” Its primary application areas include:
- Oil & Gas: Emergency Shutdown Systems (ESD) and Fire and Gas (F&G) detection.
- Chemical Industry: Burner Management Systems (BMS) and reactor protection.
- Power Generation: Turbine control and protection logic.
- Railway Systems: Signaling and interlocking safety controls.
- Logistics: High-speed sorting and automated warehousing safety.
Product Operation Instructions
- Mounting: Install the module onto a standard DIN rail within a climate-controlled electrical cabinet. Ensure adequate clearance for heat dissipation.
- Wiring: Connect the power supply (typically 24V DC) and I/O field devices according to the wiring diagram provided in the technical manual. Use shielded cables for communication lines to minimize EMI.
- Configuration: Utilize the SILworX programming tool to configure the safety logic. The F35 must be loaded with a valid project before the CPU can enter “Run” mode.
- Diagnostics: Monitor the front-panel LED indicators. A steady green “Run” LED indicates normal operation, while red status lights indicate system faults or safety trips.
- Maintenance: The module is designed for maintenance-free operation. However, periodic functional tests should be conducted as per the safety manual requirements for your specific SIL rating.
Q&A: Common Questions
Q: Can the HIMA F35 be used in non-safety applications? A: While it is optimized for safety, it can handle standard control tasks. However, it is most cost-effective when utilized for its SIL 3 certified safety capabilities.
Q: What is the significance of the “safeethernet” protocol used by this module? A: Safeethernet allows the F35 to communicate safety-related data over standard Ethernet infrastructure without compromising the safety integrity of the system.
Q: Does the module support hot-swapping? A: No, for safety-critical components like the central unit, it is recommended to power down the specific rack segment before replacement to prevent accidental logic triggers.
