Description
- Model: HIMA F6706
- Brand: HIMA Paul Hildebrandt GmbH
- Series: H41q / H51q Safety Systems
- Core Function: 8-channel analog input with safety isolation
- Product Type: Safety-Related Analog Input Module
- Key Specs: 4-20 mA / 0-5 V DC 12-bit Resolution SIL 3 Rated
- Number of Channels: 8 differential inputs
- Input Signal Range: 0 to 5 V or 0/4 to 20 mA (with external 250 Ω shunt)
- Safety Rating: Suitable for SIL 3 (IEC 61508) applications
- Resolution: 12-bit (4095 steps)
- Input Resistance: > 1 MΩ (voltage mode)
- Isolation: Galvanic isolation between inputs and system bus
- Test Cycle: Integrated self-test for hardware failure detection
- Power Consumption: 5 V DC, max 150 mA / 24 V DC, max 100 mA
- Format: Standard HIMA Eurocard (PCB) format

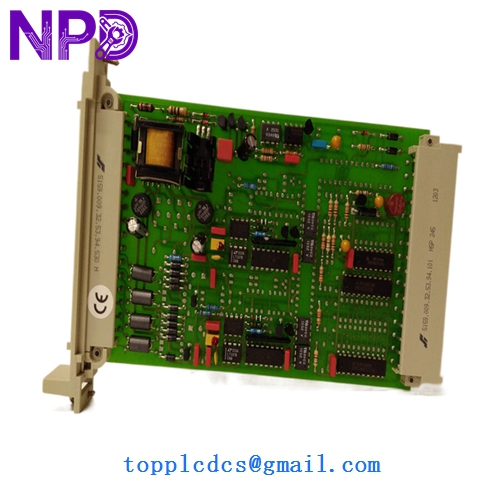

HIMA F6706
HIMA F6706
HIMA F6706
Application Scenarios & Pain Points
In high-integrity safety systems like the HIMA H51q, the F6706 is responsible for monitoring critical process variables—pressure, temperature, or flow—that could lead to an Emergency Shutdown (ESD) if they exceed safety limits. Unlike standard PLC modules, the F6706 performs constant internal self-tests to ensure the “Safety Function” is never compromised. If this module fails, it usually goes into a “fail-safe” state, which might mean a total plant trip. Finding a replacement quickly is often the only way to avoid millions in lost production.
Typical Application Scenarios:
- Emergency Shutdown Systems (ESD) Monitoring tank levels or pipe pressures in oil and gas refineries to trigger automatic shut-off valves.
- Fire and Gas Systems (F&G) Interfacing with analog gas detectors to initiate ventilation or suppression sequences.
- Burner Management Systems (BMS) Ensuring fuel/air ratios and furnace pressures remain within strict safety envelopes.
- Nuclear Power Control Used in non-primary safety loops where TUV-certified reliability is mandatory.
Case Study: The “Drifting” Pressure Loop
Background: A petrochemical plant in the Middle East noticed a discrepancy in their pressure readings on an H51q system. Two channels on an F6706 module were reporting values 5% higher than the local gauges, nearly triggering a nuisance trip.
Problem: Standard calibration didn’t fix the issue. The analog-to-digital converter (ADC) on the aging module was beginning to drift due to thermal fatigue in the marshalling cabinet. Since this was a SIL 3 loop, the plant couldn’t bypass the signal.
Solution: We provided an identical F6706 from our emergency stock. Because HIMA modules are calibrated at the factory, the swap was straightforward.
Result: – Accuracy Restored: The new module matched the local gauges perfectly.
- Nuisance Trip Avoided: The plant avoided an unplanned $200,000 shutdown.
- Engineer’s Insight: “With HIMA modules, don’t wait for a total failure. If you see analog drift that can’t be calibrated out, replace the card. It’s usually a sign that the internal reference voltage is failing.”
Compatible Replacement Models
The F6706 is a staple of the H41q/H51q lines. While HIMA has newer HIMax systems, these legacy cards have very specific pinouts.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| F6706 | F6706 | ✅ Exact Match | Standard 8-channel safety AI. |
| F6706 | F6213 | ❌ Incompatible | F6213 is a digital input; do not mix. |
| F6706 | HIMax Series | ❌ Incompatible | Requires full system migration and rewiring. |
Pro Tip: Always check the hardware revision (e.g., “Rev. 01”) on the side of the PCB. While HIMA tries to keep them compatible, certain older backplanes have specific timing requirements.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| “ERR” LED on front panel | Internal Self-test Fail | ✅ High | Read the error code via ELOP II software. | Module hardware fault; replace. |
| Channel stays at 0 mA | Blown External Shunt | ⚠️ Med | Check the 250 Ω resistor on the terminal block. | Replace shunt resistor. |
| Readings are erratic | Ground Loop / Shielding | ⚠️ Med | Check if shield is grounded at only one end. | Improve cable shielding. |
| All channels show “Overrange” | 24V Power Loss | ✅ High | Measure 24V DC at the rack power supply. | Restore power to the I/O bus. |
❗ Safety Warning: The “HIMA Key”
When replacing an F6706, ensure the mechanical coding pins on the backplane connector match. HIMA uses these pins to prevent an engineer from accidentally plugging a 24V Digital Output into an Analog Input slot. If the card won’t slide in easily, do not force it. Check the coding pins first.
Wiring & Calibration:
The F6706 typically uses an external shunt resistor for 4-20 mA signals. If you are replacing a module and the readings are suddenly wrong, verify that the shunt resistor on the terminal base hasn’t been bumped or disconnected. Also, remember that HIMA systems often require a “Download” or “Force” reset in ELOP II to recognize a new module ID if the system was in a locked safety state.
