Description
- Model: HIMA F7123
- Brand: HIMA (Germany)
- Series: H41q / H51q / HIQUAD Safety Systems
- Core Function: 4-Channel Power Supply Monitoring and Distribution
- Product Type: Power Management / Safety I/O Module
- Key Specs: 24 V DC 4 Monitoring Channels SIL 3 Rated
- Operating Voltage: 24 V DC (Nominal)
- Channels: 4 independent monitoring circuits
- Threshold: Internal voltage monitoring (Logic Level 5V and Field Level 24V)
- Current Consumption: Approx. 100 mA (Internal logic)
- Safety Rating: Suitable for use in SIL 3 (Safety Integrity Level) applications
- Indicators: 4 Front-panel LEDs for Channel Status (Green = OK, Red = Fault)
- Mounting: 19-inch subrack compatible (standard HIMA rack)
- Connection: DIN 41612 connector (Backplane)
- Test Points: Front-mounted test sockets for manual voltage verification
- Isolation: High-grade galvanic isolation between logic and power stages

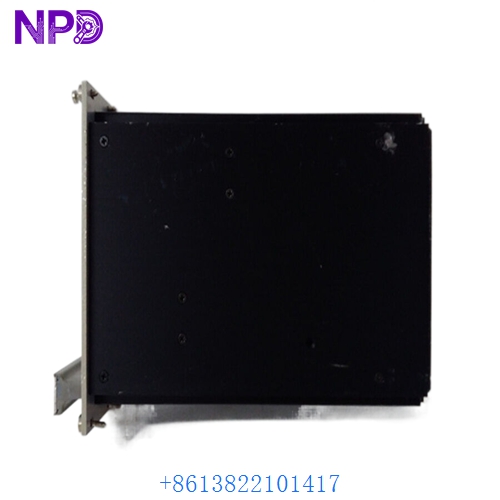

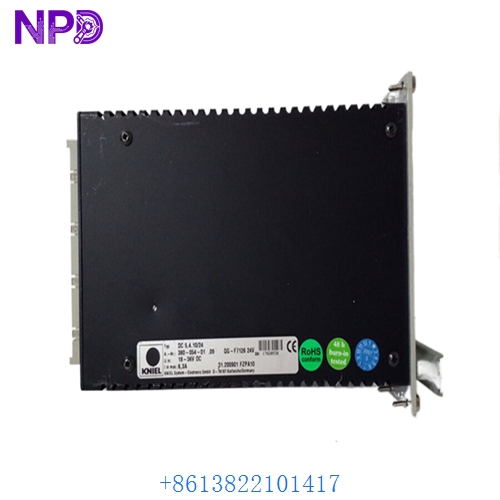

HIMA F7123
HIMA F7123
HIMA F7123
Application Scenarios & Pain Points
In a refinery’s ESD (Emergency Shutdown) system, the HIMA F7123 ensures that the 24V power feeding your digital inputs and outputs is actually within the safety tolerance. The primary pain point here is “Aging Capacitors.” These boards sit in racks for 15+ years. As the capacitors dry out, the voltage ripple increases. The F7123 might start reporting a “Power Fault” to the CPU, even if your multimeter shows a steady 24V. This leads to “Nuisance Trips” that shut down entire production trains for no apparent reason.
Typical Application Scenarios:
- Refinery ESD (Emergency Shutdown) Monitoring the power rails for critical shut-off valves. If the voltage dips below 18V, the F7123 alerts the CPU to safe-state the plant.
- Offshore Oil Platforms – Fire & Gas (F&G) Ensuring redundant power is available for flame detectors and gas sniffers in harsh, salt-air environments.
- Burner Management Systems (BMS) Managing power distribution for ignition and fuel-gas solenoids on large-scale utility boilers.
Case Study: The “Mystery Trip” in the Middle East
Background: A gas processing plant was experiencing random shutdowns on its H51q system. The diagnostics reported “Module Fault,” but the I/O cards seemed fine.
The Problem: We identified that the HIMA F7123 was failing its internal self-test under high-temperature conditions in the afternoon. The board’s voltage comparator was drifting due to heat soak, causing a “False Trip” signal to be sent to the central controller.
The Solution: We supplied a tested F7123 from our climate-controlled inventory. Before shipping, we performed a 24-hour heat-run at 60°C to ensure the comparator thresholds remained stable.
The Result: – Operational Impact: The random trips stopped immediately.
- Outcome: The plant avoided an estimated $120,000 in flaring costs and lost production.
- Client Feedback: “The front test sockets made it easy to verify the fix during the next PM.”
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Integration Effort |
|---|---|---|---|---|
| F7123 | F7123A | ✅ Direct Replace | Updated component library | Drop-in; zero config |
| F7123 | F7133 | ⚠️ Software Compatible | 2-Channel version (Simplified) | Check channel count requirements |
| F7123 | HIMax Series | ❌ Incompatible | Totally different hardware | Requires full system migration |
Troubleshooting Quick Reference
| Symptom | Likely Cause | Board Related? | Quick Check | Action |
|---|---|---|---|---|
| Channel LED Red | Under-voltage / Fuse blown | ✅ High | Measure voltage at the front test sockets. | If < 20V, check external power. If > 24V, board is faulty. |
| CPU Fault “Power Failure” | Logic circuit failure | ✅ High | Check the backplane connection pins. | Reseat board. If fault persists, replace F7123. |
| All LEDs Off | 5V Logic Power Missing | ❌ Low | Measure 5V rail on the backplane. | Check the central power supply module (e.g., F7108). |
| Intermittent Faults | Cold solder joints | ✅ High | Inspect the board for discolored components. | Replace with a certified spare. |
Integrator’s “Field Tips”:
- Use the Test Sockets: One of the best features of the HIMA F7123 is the front test sockets. You don’t need to pull the board to check the rails. Always use a calibrated Fluke meter to verify the actual voltage before assuming the board is lying to you.
- SIL 3 Compliance: If you are in a SIL 3 loop, you cannot just repair these boards on a workbench and put them back in. You must use a certified spare with a traceable test report to maintain your safety certification.
- Check the Backplane: These boards use high-density DIN connectors. If the rack is old, the gold plating can wear thin. If a new F7123 doesn’t clear the fault, inspect the backplane pins for “creep” or oxidation.
