Description
- Model: F8621A (Part No: 301290130)
- Brand: HIMA (Germany)
- Series: HIMAX (High-availability safety system)
- Core Function: System Power Supply Module
- Product Type: 24 VDC Power Distribution Module
- Key Specs: 24 VDC Input 5 VDC / 24 VDC Internal Output Redundancy Support

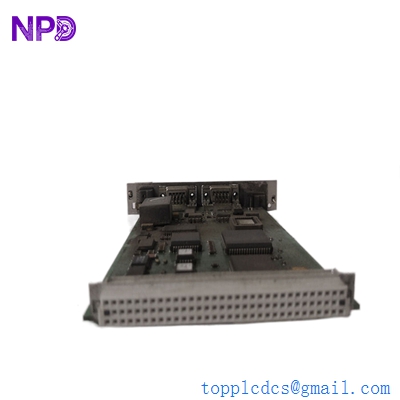

HIMA F8621A
Key Technical Specifications
- Input Voltage: 24 VDC (Nominal), range 18V to 32V
- Output Power: Provides stabilized voltage for the HIMAX base plate and I/O modules
- Efficiency: > 90% at full load
- Safety Rating: Suitable for use in SIL 3 systems (IEC 61508)
- Redundancy: Designed for parallel operation in redundant HIMAX racks
- Diagnostics: Monitoring of input voltage, output voltage, and temperature
- Status Indicators: Front panel LEDs (Power OK, Error)
- Connection: Plugs directly into the HIMAX system base plate (Backplane)
- Operating Temperature: 0 °C to +60 °C
Application Scenarios & Pain Points
The F8621A is the “life support” module for the HIMAX safety platform. In a HIMAX rack, this module converts and distributes power to the processor modules (like the F8627) and the various I/O cards. Because HIMA systems are used exclusively for high-stakes safety (Emergency Shutdown, Fire & Gas), a power failure isn’t just an inconvenience—it’s a potential safety breach. The F8621A is built to run 24/7 for decades, but like all power electronics, its capacitors are the primary wear point over a 15-20 year lifespan.
Typical Application Scenarios:
- Chemical & Petrochemical (ESD) Providing the ultra-stable power needed for Emergency Shutdown logic solvers where a millisecond of voltage sag could trip the whole plant.
- Oil & Gas (Fire & Gas Systems) Powering the detection loops and alarm logic in hazardous offshore environments.
- Rail & Mobility Ensuring safety-critical signaling and interlocking systems remain energized under varying environmental conditions.
- Burner Management Systems (BMS) Powering the logic that monitors flame presence and fuel valve positions in massive industrial furnaces.
Case Study: The “Ghost” Reboot
Background: A refinery using a redundant HIMAX system reported that their secondary controller rack would occasionally reboot for no apparent reason. No hardware faults were initially logged.
The Problem: After checking the power distribution, we found that one of the F8621A modules was suffering from “High ESR” (Equivalent Series Resistance) in its internal capacitors. While it could maintain voltage at idle, it would sag just enough during a high-speed I/O scan to trigger a watchdog reset.
The Solution: We provided a fresh F8621A module. Because the HIMAX rack is designed for power redundancy, we were able to swap the module while the system remained live.
Result: The intermittent reboots ceased immediately. The plant maintained its SIL 3 rating without a single second of downtime during the repair.

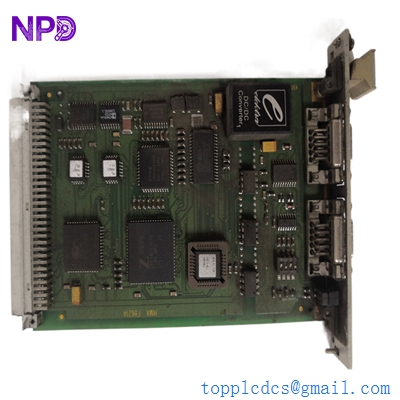

HIMA F8621A
Compatible Replacement Models
The F8621A is specific to the HIMAX modular series. It is important not to confuse it with the older HIMatrix or HIQuad power units.
| Model Number | Compatibility | Main Difference | Integration Note |
| F8621A | ✅ Direct | Standard HIMAX Power Module | 301290130 is the standard part number. |
| F8621 | ⚠️ Legacy | Earlier hardware revision | Usually interchangeable; check base plate compatibility. |
| F8627 | ❌ Incompatible | Main Processor Module | This is the CPU that the F8621A powers. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Action |
| Power LED Off | No Input 24V DC | ✅ High | Verify external 24V supply to the rack terminals. |
| ERR LED (Red) | Over-temperature / Overload | ✅ High | Check for blocked fan units or a short circuit in an I/O module. |
| Voltage Fluctuation | Aging Capacitors | ⚠️ Medium | Use an oscilloscope to check for AC ripple on the 5V/24V backplane pins. |
| Module Not Recognized | Backplane Pin Damage | ⚠️ Medium | Inspect the 96-pin DIN connector on the rear for bent pins. |
Technical SOP & Quality Guarantee
Power supply modules are the foundation of system health. Our testing is rigorous:
- Full Load Stress Test: We run the F8621A at 100% rated capacity for 12 hours to ensure the thermal management is functioning perfectly.
- Redundancy Handshake: We test the “Power OK” signal output to ensure that if this module were to fail, the redundant partner would take over without a glitch.
- Ripple & Noise Analysis: We verify that the output DC is clean, with minimal high-frequency noise that could interfere with sensitive analog I/O.
- Hipot Testing: We verify the isolation between the 24V input and the logic-side circuits to ensure surge protection is intact.
Engineer’s Pro-Tip: HIMAX racks often use two F8621A modules for redundancy. If you are replacing one, it is often wise to check the age of the second one. If they were installed at the same time, the second one is likely near the end of its capacitor life as well. Proactive replacement of both can save you a second emergency call-out next year.
