Description
- Model: HIMA F8650X
- Brand: HIMA Paul Hildebrandt GmbH
- Series: H41q / H51q (High-density safety systems)
- Core Function: Central Module (CPU/Logic Solver)
- Product Type: Central Processing Unit for Safety Instrumented Systems (SIS)
- Key Specs: TMR (Triple Modular Redundant) capable, SIL 3 certified, specialized for high-speed safety logic.
- Safety Integrity: Certified for SIL 3 according to IEC 61508
- Processing: 32-bit microprocessor with internal self-tests
- Redundancy: Dual-channel architecture with high diagnostic coverage
- Memory: Integrated Flash-EPROM for program storage and SRAM for data
- Communication: 2x Serial interfaces (RS 485) for programming and inter-station communication
- Display: Front-panel 4-character alphanumeric display for fault codes and system status
- Power: Typically 5 V DC logic supply (from F7126 power module)
- Scan Time: High-speed execution (typically < 100ms for safety loops)

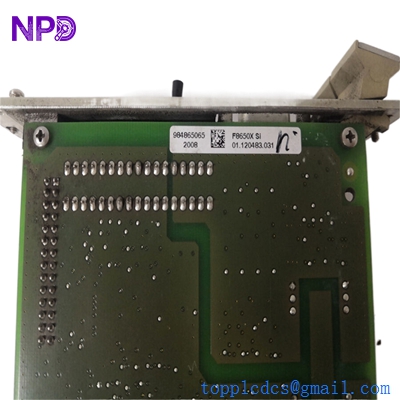

HIMA F8650X
Application Scenarios & Pain Points
The F8650X is the “brain” of the HIMA H41q/H51q safety platforms. In industrial settings where a single error can lead to a fire or explosion, the F8650X provides the deterministic logic needed to move the plant to a safe state. The biggest pain point for site engineers is the “Hardware Revision” and “Firmware OS” matching. If you replace an F8650X with a module that has a different OS version than the other CPUs in a redundant pair, the system will not synchronize, leaving your plant unprotected or in a “Halt” state.
1. Oil & Gas ESD (Emergency Shutdown)
Acting as the primary logic solver for offshore platforms and refineries to isolate equipment during a leak or overpressure event.
2. Chemical Reactor Protection
Monitoring temperature and pressure gradients to trigger quench systems or relief valves in high-risk chemical synthesis.
3. Burner Management Systems (BMS)
Ensuring the safe startup, operation, and shutdown of large-scale utility boilers and furnaces.
Case Study: The “Firmware Mismatch” Lockdown
Background: A midstream gas plant was running a redundant H51q system with two F8650X modules. One CPU failed due to a communication port short circuit. The plant remained online on the secondary CPU, but the “Redundancy Lost” alarm was critical.
The Problem: The plant sourced a replacement F8650X from a local broker. When they inserted the new module, the “ERR” LED flashed, and the CPUs refused to sync. The replacement module had OS version 4.1, while the existing “live” CPU was running OS version 3.8. In HIMA systems, firmware must match perfectly for redundancy to engage.
The Solution: We provided a certified F8650X and, after consulting with the customer, matched the firmware to their specific system version before shipping. We also provided the ELOP II software steps to verify the project checksum.
The Result: The plant maintenance team hot-swapped the module, and the system synchronized in less than 60 seconds.
- Avoided Loss: Prevented a plant shutdown that would have occurred if the single remaining CPU had glitched during the 2-week lead time for an OEM firmware update.
- Takeaway: When buying an F8650X, the hardware is only half the story—the firmware version is what keeps the plant running.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Workload |
| HIMA F8650 | HIMA F8650X | ✅ Direct | “X” version has improved diagnostic hardware | Plug & Play |
| HIMA F8651X | HIMA F8650X | ⚠️ Limited | F8651X is for different system densities | Check configuration |
| HIMax Series | HIMA F8650X | ❌ No | Next-gen platform; completely different | Not possible |
Engineer’s Advice: The “X” in F8650X is important. It signifies the “eXtended” version with better internal diagnostics. If you are replacing an older non-X F8650, you can usually upgrade to the F8650X, but you must verify that your sub-rack backplane supports the extra diagnostic pins.

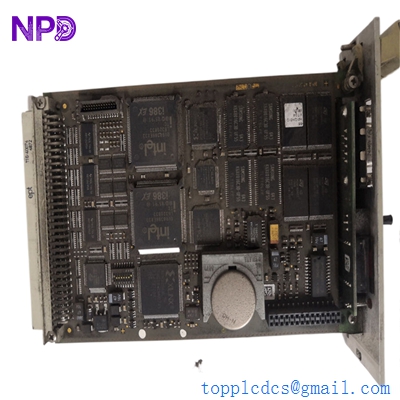

HIMA F8650X
Troubleshooting Quick Reference
| Symptom | Possible Cause | F8650X Related? | Quick Check | Action |
| Display shows “STOP” | Processor Halted | ✅ High | Check the Fault Table in ELOP II | Reset/Reload program |
| “ERR” LED Flashing | Firmware Mismatch | ✅ High | Compare OS versions on display | Match Firmware |
| Display shows “CPU1” | Standalone Mode | ✅ High | Check redundancy cable/bus | Verify Redundancy Sync |
| No Display/LEDs | Power Supply Failure | ⚠️ Medium | Check F7126 (5V) power module | Replace Power Module |
Expert Maintenance Tips:
- Redundancy Synchronization: ❗ Warning! Before inserting a replacement F8650X into a live system, ensure the “Lock” switch is in the correct position. If you insert a module with a “master” priority into a system already running a master, you can cause a system-wide reset.
- The “Check” Button: Use the small button next to the 4-digit display to cycle through active error codes. Write these down before calling technical support; codes like “E004” or “D212” tell us exactly which internal component is failing.
- Lithium Battery: The F8650X relies on a battery for RAM retention. If your plant loses power and the “RUN” LED won’t come back on, your battery is likely dead, and the program has been lost. Replace the battery every 3 years.
