Description
Product Introduction
⚙️ Product: X-AI 32 01
🏷️ Part Number: 985210213
🔧 Brand: HIMA
🛡️ System: HIMax Programmable Electronic System (PES)
📥 Product Type: Safety Analog Input Module

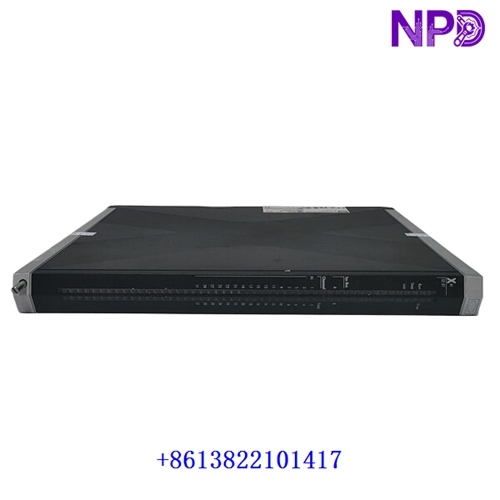

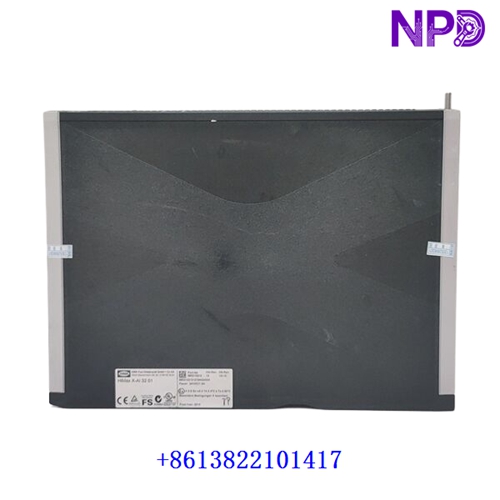

The HIMA X-AI3201 985210213 is a 32-channel analog input module designed for the HIMax programmable electronic system. It evaluates up to 32 analog field signals and is intended for safety-related automation and process applications. Available technical references identify the module as suitable for safety applications up to SIL 3 according to IEC 61508, IEC 61511, and IEC 62061, as well as Category 4 and Performance Level e according to EN ISO 13849-1.
🔌 The module supports analog signal acquisition from field transmitters and is designed to be installed on a compatible HIMA connector board. A published technical reference specifies a 24 VDC supply and 32 transmitter supplies with a nominal 26.5 VDC output.
🏭 Typical applications include safety instrumented systems, emergency shutdown systems, process monitoring, oil and gas facilities, chemical plants, and other industrial installations requiring safety-rated analog signal acquisition.
Product Datasheet
🔹 Model: X-AI 32 01 / X-AI3201
🔹 Part Number: 985210213
🔹 Brand: HIMA
🔹 Product Type: Safety Analog Input Module
🔹 System: HIMax PES
🔹 Number of Channels: 32 analog inputs
🔹 Supply Voltage: 24 VDC
🔹 Transmitter Supply: 26.5 VDC nominal
🔹 Maximum Transmitter Supply Current: 30 mA per supply
🔹 Maximum Load: ≤750 Ω at 22.5 mA
🔹 Signal Types: Analog current/voltage signals, configuration dependent
🔹 Input Settling Time: Approx. 15 ms to 99% of process value
🔹 Measurement Accuracy: ±0.15% of final value over the specified temperature range
🔹 Safety Rating: Up to SIL 3 / Category 4 / PL e
🔹 Mounting: HIMA HIMax base plate with compatible connector board
🔹 Dimensions: Approx. 310 × 300 × 25 mm*
🔹 Weight: Approx. 1.4 kg*
🔹 Country of Origin: Germany
*Dimensions and weight can vary according to the mounting/packaging configuration. The 32-channel capacity, 24 VDC supply, 26.5 VDC transmitter supply, 15 ms settling time, and German origin are supported by available product references.
Typical Applications
🛡️ Safety Instrumented Systems (SIS)
🚨 Emergency Shutdown (ESD) Systems
🛢️ Oil & Gas Processing
🧪 Chemical & Petrochemical Plants
⚡ Power Generation
🏭 Process Automation
📊 Temperature, Pressure & Flow Monitoring
Installation & Use
🛠️ Before installation, verify the complete X-AI3201 985210213 part number, hardware revision, HIMax base plate, connector board, system cable, and field signal configuration.
🔌 Install the module on a compatible HIMax base plate and connector board. Check the 24 VDC supply and transmitter-loop wiring carefully before energizing the system.
📊 During commissioning, verify all configured analog channels, transmitter supply voltages, signal scaling, diagnostic indications, and controller communication. Simulate representative field signals where required to confirm correct system response.
⚠️ Because this is a safety-related I/O module, configuration and commissioning should follow the approved HIMA safety-system procedure. Verify the complete safety function and perform the required proof or functional tests before returning the SIS to operation.
