Description
The HIMA Z7116 is a specialized Line Termination Module designed for the HIMax and H41q/H51q safety systems. It is primarily used to provide standardized termination and distribution for field signals, ensuring impedance matching and signal integrity for high-reliability safety-instrumented functions (SIF).
Product Parameters (Datasheet)
- Model Number: Z7116
- System Family: HIMax / H41q / H51q
- Function: Line Termination / Distribution
- Input Channels: Typically 16 channels (Standardized for HIMA I/O modules)
- Connection Type: Cable plug for I/O module connection and screw/spring terminals for field wiring
- Voltage Rating: 24 V DC
- Mounting: DIN Rail (TS35)
- Protection Class: IP20
- Diagnostic Support: Integrated test points for signal measurement without disconnecting wiring

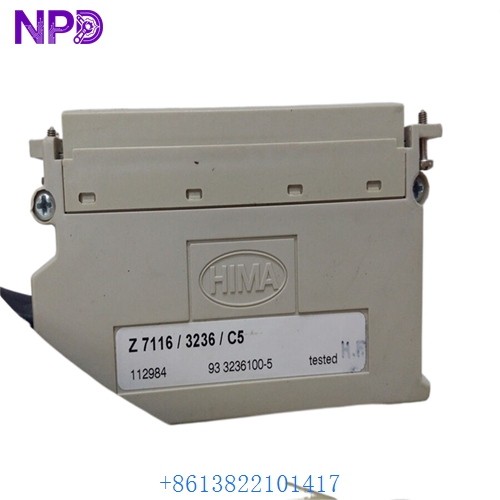

HIMA Z7116

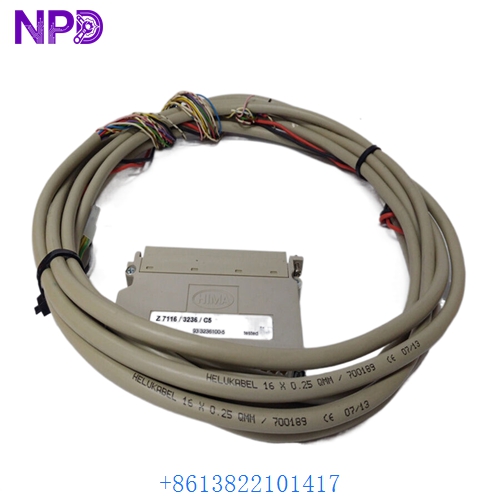

HIMA Z7116

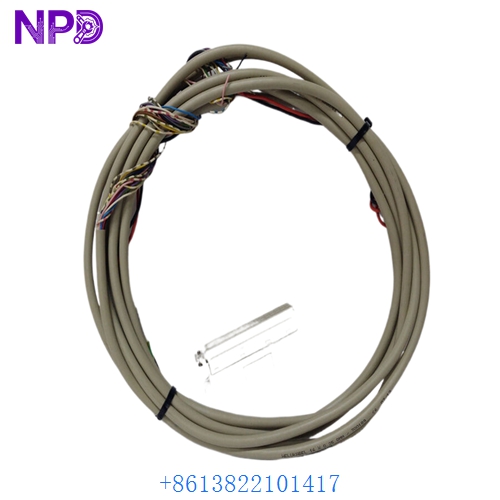

HIMA Z7116
Country of Origin
This safety component is engineered and manufactured by HIMA Paul Hildebrandt GmbH in Germany, the world’s leading specialist in independent automated safety solutions.
Application Fields
The Z7116 is essential in large-scale safety architectures where organized wiring and signal stability are mandatory:
- Emergency Shutdown (ESD): Terminating critical inputs from E-Stop buttons and pressure switches in oil and gas refineries.
- Fire & Gas (F&G): Distributing signals from flame detectors and gas sensors to the central safety controller.
- Burner Management Systems (BMS): Managing the I/O termination for boiler and furnace safety interlocks.
- Turbine Control: Providing high-integrity signal paths for overspeed protection sensors.
- Chemical Processing: Organizing complex I/O density in SIL 3 rated production environments.
Product Usage Instructions
- Mounting: Snap the Z7116 onto a standard DIN rail within the Marshalling Cabinet. Ensure it is positioned close to the corresponding HIMA I/O rack to minimize cable lengths.
- System Connection: Use the pre-assembled HIMA system cable (typically a multi-pole plug) to connect the Z7116 to the backplane of the I/O module (e.g., F8650 or similar).
- Field Wiring: Connect the field device wires to the terminal blocks on the module. Ensure that shielded cables are used for analog signals and that the shields are correctly grounded at the termination bar.
- Impedance Matching: If used for high-speed digital or specific analog loops, verify that the internal resistors of the Z7116 match the required termination impedance of the loop.
- Labeling: Utilize the integrated labeling strips to clearly identify each of the 16 channels, facilitating faster troubleshooting during maintenance.
Product Technical Description
Technically, the Z7116 acts as the physical interface between the flexible field environment and the rigid safety controller environment. It serves as a Marshalling Tier component. By separating the field wiring from the I/O module, it protects the expensive controller hardware from accidental short circuits or wiring errors during installation. The Z7116 often includes passive components to assist in line monitoring (detecting open circuits or short circuits) when paired with HIMA’s smart I/O modules. This allows the safety system to maintain its SIL 3 rating by ensuring that the physical connection to every sensor is verified in real-time.
Q&A (Common Questions)
- Q: Can I use the Z7116 with third-party PLC systems?
- A: No. The connector pinouts and signal levels are specifically designed for HIMA’s proprietary system cables and I/O modules.
- Q: Does the Z7116 require its own power supply?
- A: No. It is a passive termination module. It distributes the 24V DC power provided by the I/O module or the system power bus.
- Q: What is the benefit of using this over standard terminal blocks?
- A: The Z7116 reduces wiring time by using plug-and-play system cables, reduces the risk of cross-wiring, and provides integrated diagnostic points that standard terminals lack.
- Q: Is it suitable for use in explosive atmospheres (ATEX)?
- A: While the module itself is IP20 and usually stays in the safe-area cabinet, it can process signals coming from Ex-i (Intrinsic Safety) barriers if the cabinet is designed correctly.
Similar Model Recommendations
- HIMA Z7126: A variant with different channel density or fuse protection.
- HIMA F8650: The CPU/Processor module commonly used in the HIMax system.
- HIMA F8627: An Ethernet communication module for HIMA racks.
- HIMA BV7032: System cable for connecting I/O modules to Z-series termination units.
- HIMA K9203: Power supply and filter module for safety racks.
For technical drawings or to request a quote for the HIMA Z7116, please contact our safety systems technical team.
