Description
The HIMA Z7306 is a critical safety component designed for the HIMA Planar4 system, one of the world’s most robust and reliable hard-wired safety controller architectures. Unlike software-based PLCs, the Z7306 operates using discrete logic to provide the highest level of safety integrity (up to SIL 4). It is specifically engineered to handle complex safety functions where speed, physical separation of circuits, and absolute reliability are required. The module is built with high-grade components to ensure a long service life in demanding industrial environments.
For more specialized HIMA safety components, visit the HIMA Z7306 product selection.
Technical Datasheet
Product Identification
- Model Number: Z7306
- System Series: Planar4
- Manufacturer: HIMA Paul Hildebrandt GmbH
- Safety Level: Up to SIL 4 (Safety Integrity Level)
Physical Characteristics
- Dimensions: 170 mm x 20 mm x 120 mm
- Weight: 0.32 kg
- Mounting: 19-inch Subrack (Planar4 Chassis)
- Country of Origin: Germany
Operational Specifications
- Input Voltage: 24V DC
- Logic Type: Hard-wired solid-state logic
- Power Consumption: 5 Watts (approx.)
- Operating Temperature: 0°C to +60°C
- Safety Function: Logic and delay functions (application dependent)

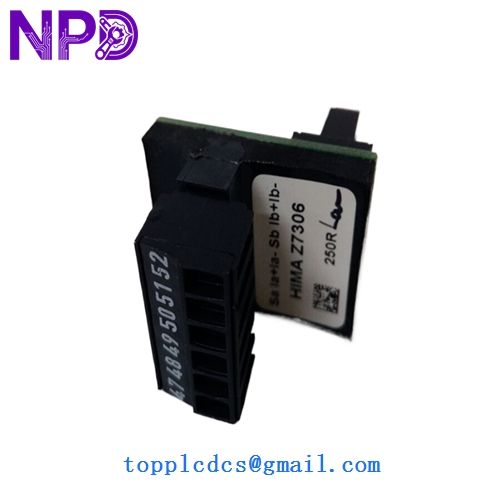

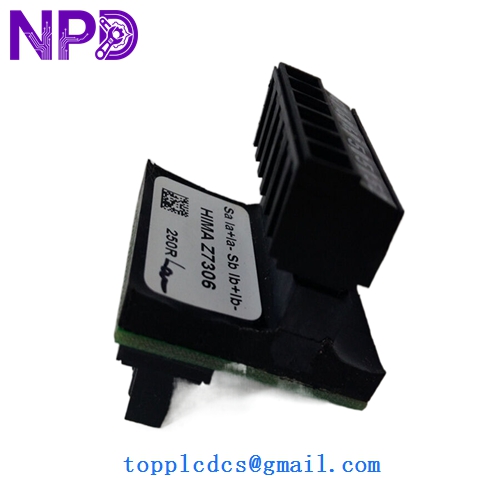

HIMA Z7306
HIMA Z7306
HIMA Z7306
Application Fields
The Z7306 is deployed in scenarios where any failure could lead to catastrophic results:
- Burner Management Systems (BMS): Controlling the safe ignition and flame monitoring of large utility boilers.
- Nuclear Power: Implementing reactor trip logic and emergency cooling sequences.
- Offshore Platforms: Managing emergency shutdown (ESD) for oil and gas extraction modules.
- Chemical Plants: High-integrity pressure protection systems (HIPPS) to prevent vessel overpressurization.
- Pipeline Control: Safeguarding pumping stations and valve logic across vast distances.
Product Usage Instructions
- Chassis Slotting: The Z7306 must be inserted into a pre-configured slot in a HIMA Planar4 19-inch rack. Align the PCB with the guide rails and push firmly until the rear connector is fully seated.
- Hard-Wired Logic Configuration: Logic in the Planar4 system is defined by the wiring on the backplane. Ensure that the backplane wiring follows the specific safety loop design approved for your facility.
- Field Connection: Connect field sensors (e.g., pressure switches, flame scanners) to the corresponding inputs. Ensure that all wiring is documented and tagged according to safety standards.
- Loop Testing: Perform a manual proof test. Stimulate the input sensors and verify that the Z7306 processes the logic correctly and triggers the appropriate output safety state.
- Cooling and Environment: The module relies on natural convection or rack fans. Ensure that the subrack is not overcrowded and that airflow is not obstructed by dust or debris.
Common Questions & Answers
Q: Is the Z7306 programmable like a modern PLC? A: No, the Z7306 is a hard-wired logic module. It does not use software. This makes it immune to cyber-attacks and software “bugs,” which is why it is used for the most critical safety applications.
Q: Can I replace a Z7306 while the system is live? A: Planar4 modules are technically hot-swappable, but in a SIL 4 safety loop, removing a module will typically cause the loop to trip to its “safe state.” Always consult your plant’s safety bypass protocols before removal.
Q: How do I identify an internal failure on the Z7306? A: The module features front-panel LEDs. A red LED generally indicates a logic fault or power failure within the module. Because it is a safety module, any internal failure will force the outputs to a de-energized (safe) state.
