Description
Product Parameters
- Model Number: LYA010A
- Series: HISEC 04 / HISEC 04-M
- Module Type: Analog Output (AO) Module
- Channel Count: 8 Channels (Typical for LYA series)
- Signal Range: 4-20 mA DC / 1-5V DC (Configurable)
- Resolution: 12-bit Digital-to-Analog conversion
- Power Supply: 24V DC Internal Bus Power
- Country of Origin: Japan
- Weight: 1.10 lbs (0.50 kg)
- Dimensions: 7.8 in x 1.2 in x 5.5 in (19.8 cm x 3.0 cm x 14.0 cm) The HITACHI LYA010A is a precision analog output module designed for the HISEC 04 series Distributed Control System (DCS), commonly found in power generation and large-scale industrial plants. It converts digital control commands from the CPU into standard industrial analog signals to drive actuators, control valves, and variable frequency drives. This module is built with high-grade galvanic isolation between the system bus and field circuits, ensuring that transient noise from the plant floor does not interfere with the core processor’s stability or data integrity.

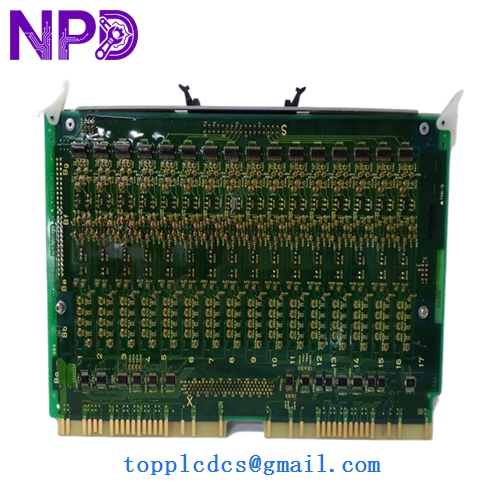

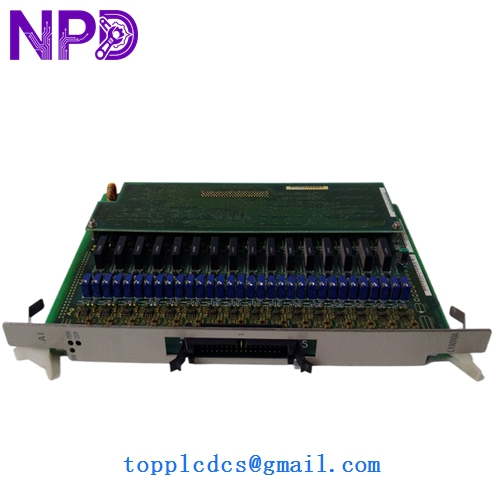

HITACHI LYA010A
HITACHI LYA010A
HITACHI LYA010A
Model Comparison
The LYA010A is a standard analog output unit, whereas the LYA020 series often features higher channel density or specialized high-speed pulse outputs for turbine governor control. Compared to the newer HITACHI S10 series modules, the LYA010A utilizes the classic HISEC large-format PCB architecture, which is optimized for the heavy-duty thermal and electrical requirements of utility-scale control cabinets. While many modern modules have moved to plastic housings, the LYA010A maintains a robust metal-shielded front plate for superior electromagnetic compatibility (EMC) in high-voltage environments.
Operation Tips
- Loop Powering: Verify if the connected field device requires the LYA010A to provide loop power or if the device is self-powered; incorrect wiring can result in a blown internal fuse or signal saturation.
- Slot Addressing: When installing the module into a HISEC rack, ensure the dip switches on the side or backplane are correctly set to assign the proper hardware address recognized by the system software.
- Output Calibration: Use the fine-tuning potentiometers (if present on the front faceplate) to calibrate the 4mA zero and 20mA span points using a high-precision signal ammeter during commissioning.
- Module Seating: Ensure the top and bottom card guides are properly engaged before pushing the module into the backplane; the LYA010A uses high-pin-count connectors that require firm, even pressure to seat correctly.
