Description
The Hitachi LYA010A is a high-precision Analog Output Module designed for use with Hitachi’s industrial PLC systems (typically the H-Series or EH-150 ranges). It is responsible for converting digital signals from the CPU into analog current or voltage to drive proportional valves, actuators, and variable speed drives.
Product Parameters (Datasheet)
- Model Number: LYA010A
- Module Type: Analog Output (AO)
- Number of Channels: 2 Isolated Channels
- Output Range (Voltage): 0 to 10 V DC, -10 to +10 V DC (User-selectable)
- Output Range (Current): 4 to 20 mA DC (User-selectable)
- Resolution: 12-bit binary (1/4000)
- Overall Accuracy: ±0.1% to ±0.3% of full scale (depending on ambient temperature)
- Conversion Speed: < 2 ms per channel
- Isolation: Photo-coupler isolation between internal logic and output terminals
- External Power Supply: 24 V DC (+10% / -15%)

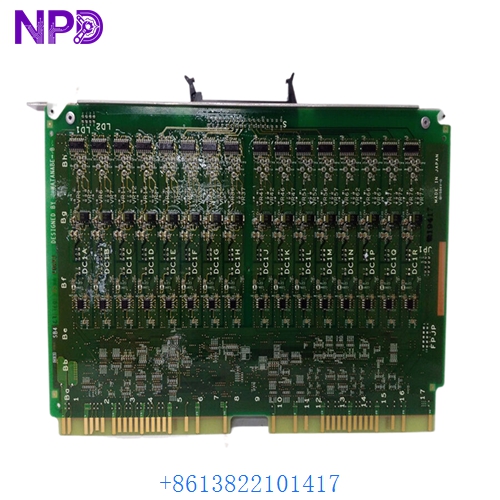

HITACHI LYA010A

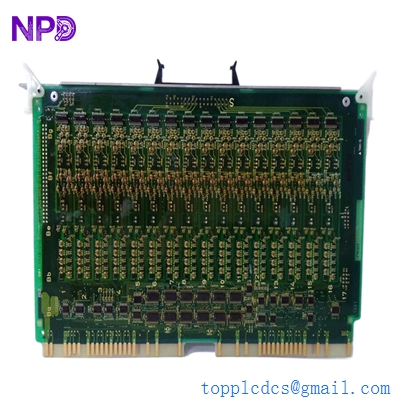

HITACHI LYA010A
HITACHI LYA010A
Country of Origin
This PLC component is engineered and manufactured by Hitachi, Ltd. in Japan, adhering to strict Japanese industrial quality and reliability standards.
Application Fields
The LYA010A is used in precision control loops across various industrial sectors:
- Water Treatment: Controlling the speed of chemical dosing pumps and opening percentages of motorized valves.
- HVAC Systems: Managing fan speeds via VFDs (Variable Frequency Drives) to maintain building pressure.
- Metal Processing: Providing setpoints for hydraulic proportional valves in pressing and stamping machines.
- Plastic Injection Molding: Regulating heater power and hydraulic pressure profiles.
- Energy Management: Controlling fuel valve actuators for industrial burners and boilers.
Product Usage Instructions
- Mounting: Insert the module into a compatible Hitachi PLC base unit. Ensure the unit is powered down before installation to prevent damage to the backplane pins.
- Wiring: Connect your analog devices to the screw terminal block. Use shielded twisted-pair cables to protect the analog signals from electromagnetic interference.
- Range Selection: Configure the output type (Voltage vs. Current) and range (-10/+10V vs 0/10V) using the onboard DIP switches or via the system’s programming software.
- Programming: In the Hitachi PLC software, map the digital registers (Words) to the LYA010A channels. A digital value of 0–4000 typically corresponds to the full output span.
- External Power: Ensure a stabilized 24 V DC power supply is connected to the designated power terminals on the module, as the analog output drive current is sourced from this external supply.
Product Technical Description
The LYA010A serves as the physical link between the PLC’s digital logic and the analog world. It employs high-grade Digital-to-Analog Converters (DAC) and precision operational amplifiers to ensure high linearity and low drift. Technically, it features photocoupler isolation, which protects the expensive PLC CPU from field-side electrical surges or ground loops. The module’s 12-bit resolution provides enough granularity for most industrial applications, allowing for 4,000 distinct steps of adjustment. Its compact design is optimized for high-density cabinet mounting, allowing for multiple analog loops in a small footprint.
Q&A (Common Questions)
- Q: Can I output 0 to 20 mA instead of 4 to 20 mA?
- A: Yes, most Hitachi AO modules can be configured for 0–20 mA through software scaling, though 4–20 mA is the industrial standard for fault detection (live zero).
- Q: What happens if the 24V external power is lost?
- A: The analog output will drop to 0 (or its lowest value), and the module will typically report a “Power Fault” diagnostic to the CPU.
- Q: Is this module compatible with the EH-150 series?
- A: While the LYA series is often associated with the H-series, check the baseplate compatibility; some L-series modules require specific adapters or are intended for the H-300/700/2000 series.
- Q: How do I reduce signal noise on the output?
- A: Ensure the cable shield is grounded at only one end (usually the PLC side) and keep analog signal wires away from high-voltage AC power cables.
Similar Model Recommendations
- Hitachi LYA020A: 4-channel version for higher-density applications.
- Hitachi LXI010A: Complementary Analog Input (AI) module.
- Hitachi LPT010A: Platinum Resistance Thermometer (RTD) input module.
- Hitachi EHV-AYH2: Modern analog output equivalent for EHV series PLCs.
- Hitachi H-200 / H-300 CPUs: Central processors that frequently utilize the LYA series.
For technical manuals or a formal quote on the Hitachi LYA010A, please contact our automation technical team.
