Description
- Model: LYT000A
- Brand: Hitachi (Japan)
- Function: System Logic Processing and Digital Control
- Type: Main Control/Logic PCB
- Compatibility: Primarily used in heavy-duty industrial inverters and high-power Hitachi motor controllers.
- Microprocessor Integration: Onboard logic chip designed for real-time processing of PWM (Pulse Width Modulation) signals and motor control algorithms.
- I/O Interface: Integrated digital input/output ports for interfacing with HMIs, external PLCs, and safety interlocks.
- Communication: Supports Hitachi’s proprietary internal bus for synchronization with power-stage boards (gate drivers).
- Isolation: High-quality opto-couplers and galvanic isolation to protect logic circuits from high-voltage noise in inverter environments.
- Diagnostics: Onboard LED indicators for CPU health, communication status, and alarm states.
- Durability: Built with industrial-grade electrolytic capacitors and a robust PCB substrate to withstand high-temperature cabinets.

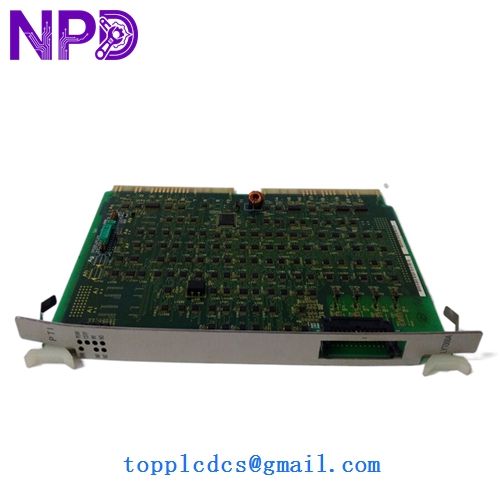

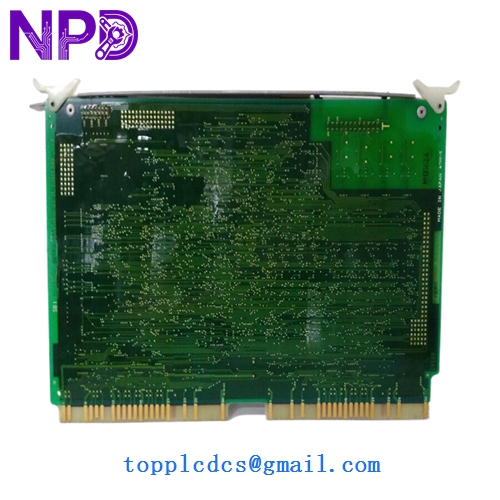

HITACHI LYT000A
HITACHI LYT000A
HITACHI LYT000A
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation: 20 minutes)
⚠️ DANGER: Residual High Voltage: Inverter cabinets can retain lethal DC bus voltage (600V+) for several minutes after power is removed.
- Discharge Check: Use a multimeter to verify the DC bus voltage is below 50V before touching any internal boards.
- Parameter Backup: If the original board is still somewhat functional, use the Hitachi programming tool (or HMI) to upload and save all motor parameters and speed curves.
- ESD Safety: Logic boards like the LYT000A are highly susceptible to static. Always wear a grounded anti-static wrist strap.
Phase 2: Removal & Replacement (Step-by-Step)
- Tagging: Label every ribbon cable and wire connector. These boards often have multiple 20-pin or 40-pin connectors that look identical.
- Removal: Unscrew the retaining fasteners on the four corners of the board. Gently pull the board away from the standoffs.
- Visual Inspection: Check the old board for “leaking” capacitors or burn marks—this can help identify if there is an external short in the wiring that might damage the new board.
Phase 3: Commissioning
- Seating: Align the new LYT000A and secure the screws. Ensure all ribbon cables are seated fully and the locking clips are engaged.
- Power-On: Restore control power first (without the high-voltage mains if possible).
- Programming:
- Download the saved parameter set to the new board.
- Perform a “Self-Test” or “Auto-Tuning” procedure if required by the drive manual.
- Operational Test: Verify that the drive responds to start/stop commands and speed references.
Customer Cases & Industry Applications
Case 1: Restoring a Critical Pumping Station A municipal water pumping station used a large Hitachi inverter for pressure control. The LYT000A failed due to a cooling fan failure that led to localized overheating. The station was forced into manual bypass mode, which was inefficient and risky. We provided a New Surplus LYT000A via express shipping. The board was installed and the system was back to automatic control within 36 hours, saving the city thousands in energy costs.
Case 2: Steel Mill Motor Control Recovery During a high-vibration event at a steel rolling mill, a connector on the original LYT000A logic board became loose and eventually shorted out. The mill’s main conveyor stopped. Since the part was obsolete from Hitachi directly, the mill feared a 3-week lead time for a system upgrade. By sourcing our New Surplus inventory, they had a replacement on-site in 2 days and resumed production.
Frequently Asked Questions (FAQ)
Q: Do I need to program the LYT000A before use? A: Yes. The board acts as the central intelligence. While it contains the factory firmware, you must load your specific motor parameters, acceleration/deceleration times, and I/O mapping using the Hitachi drive software.
Q: Is the LYT000A interchangeable with other “LYT” series boards? A: No. Hitachi “LYT” boards are very specific to the model and power rating of the drive. You must match the LYT000A model number exactly to ensure the logic timing and I/O voltages are correct.
Q: Why choose “New Surplus” over “Refurbished”? A: Inverters are harsh environments. Refurbished boards have often been through thousands of thermal cycles, which stresses the solder joints and capacitors. New Surplus ensures you are getting a board that has never been “heat-soaked,” providing the longest possible service life.
Q: How do I identify a “genuine” LYT000A? A: Genuine boards feature Hitachi’s high-quality green solder mask, clear silkscreen labeling, and original factory batch stickers. Our New Surplus units are inspected for original manufacturing hallmarks to ensure they are not third-party clones.
