Description
The HONEYWELL 05701-A-0325 is a high-reliability, single-channel gas control card designed for operation within the Honeywell Analytics System 57 control architecture. This module processes signals from toxic or flammable gas detectors, providing continuous monitoring, clear status indications, and crucial alarm outputs. Engineered for demanding industrial safety environments, this card features a clear front-panel 4-character LCD display and LED indicators to deliver real-time gas concentration levels and fault diagnostics directly to plant operators, ensuring immediate site safety management.
Product Datasheet & Specifications
- Manufacturer: Honeywell / Honeywell Analytics
- Part Number: 05701-A-0325 (also referenced as 05701A0325)
- Product Type: System 57 Single Channel Control Card
- Input Options: 4-20mA current loop or catalytic bridge inputs
- Operating Voltage: 18 V DC to 32 V DC
- Power Consumption: Approximately 3.5 Watts (maximum)
- Approximate Dimensions: 17.2 cm x 11.5 cm x 2.5 cm
- Approximate Weight: 210 grams (0.21 kg)
- Country of Origin: United Kingdom (UK)
- Certification: ATEX, CE, SIL 2 Capable, UL Approved
- Alarm Relays: 3 programmable alarm relays (Low, High, Fault) plus a dedicated multi-purpose relay

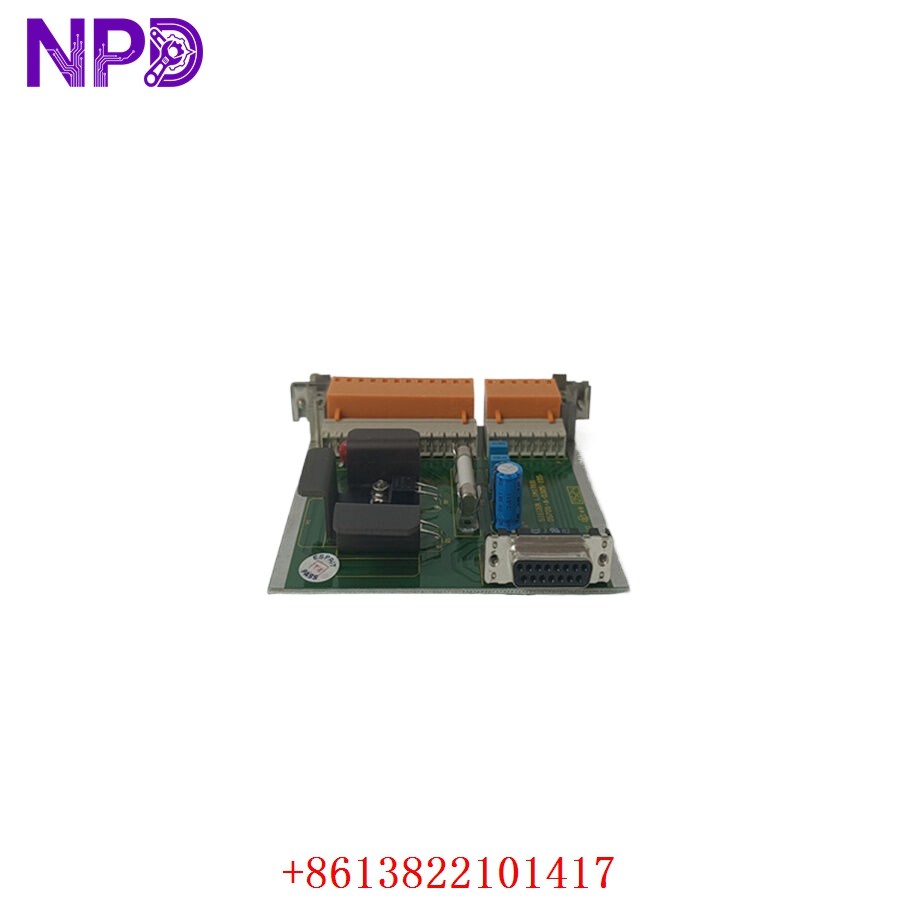

HONEYWELL 05701-A-0325

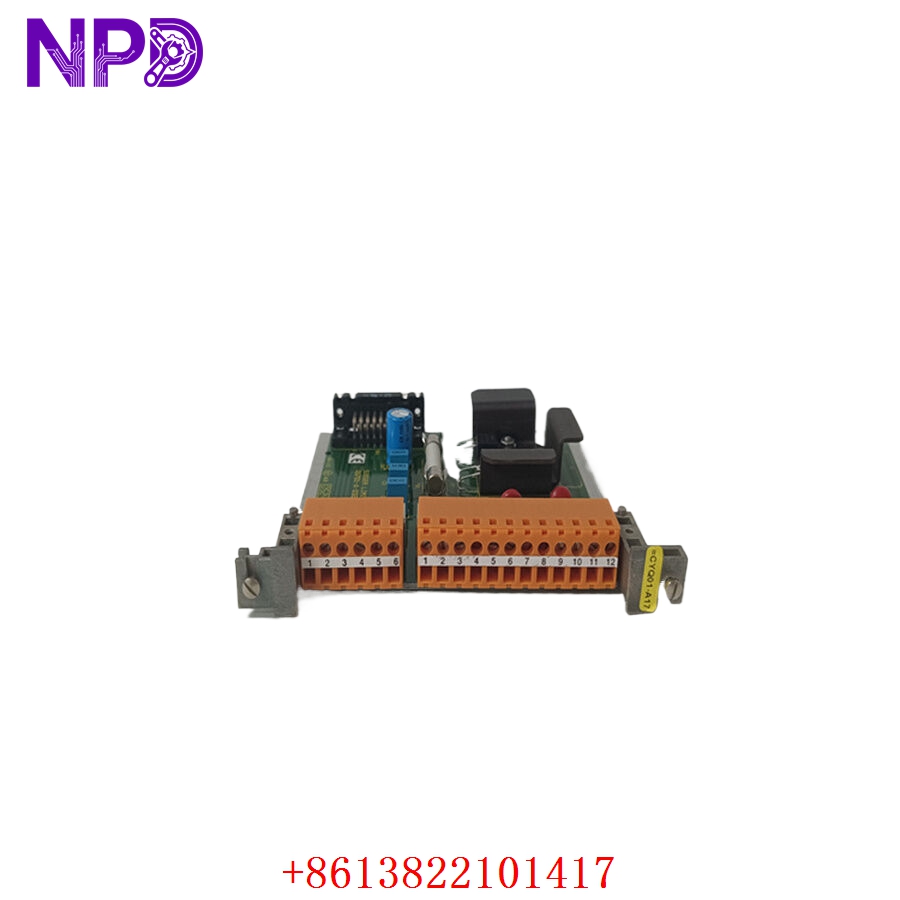

HONEYWELL 05701-A-0325

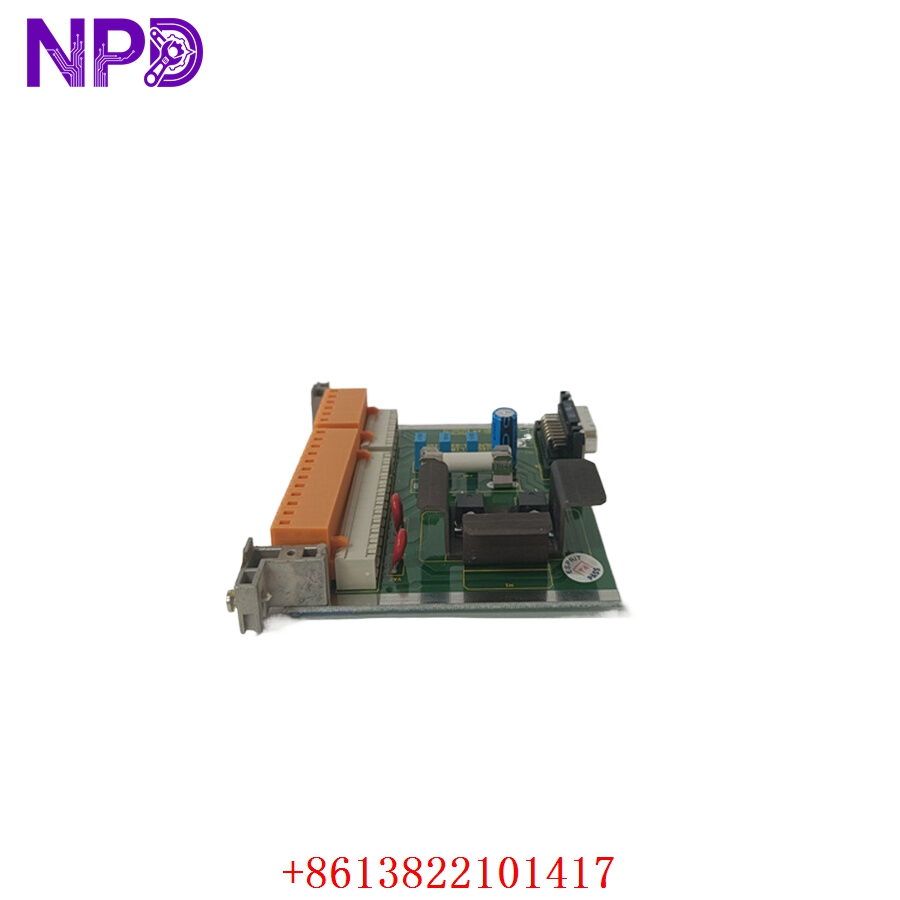

HONEYWELL 05701-A-0325

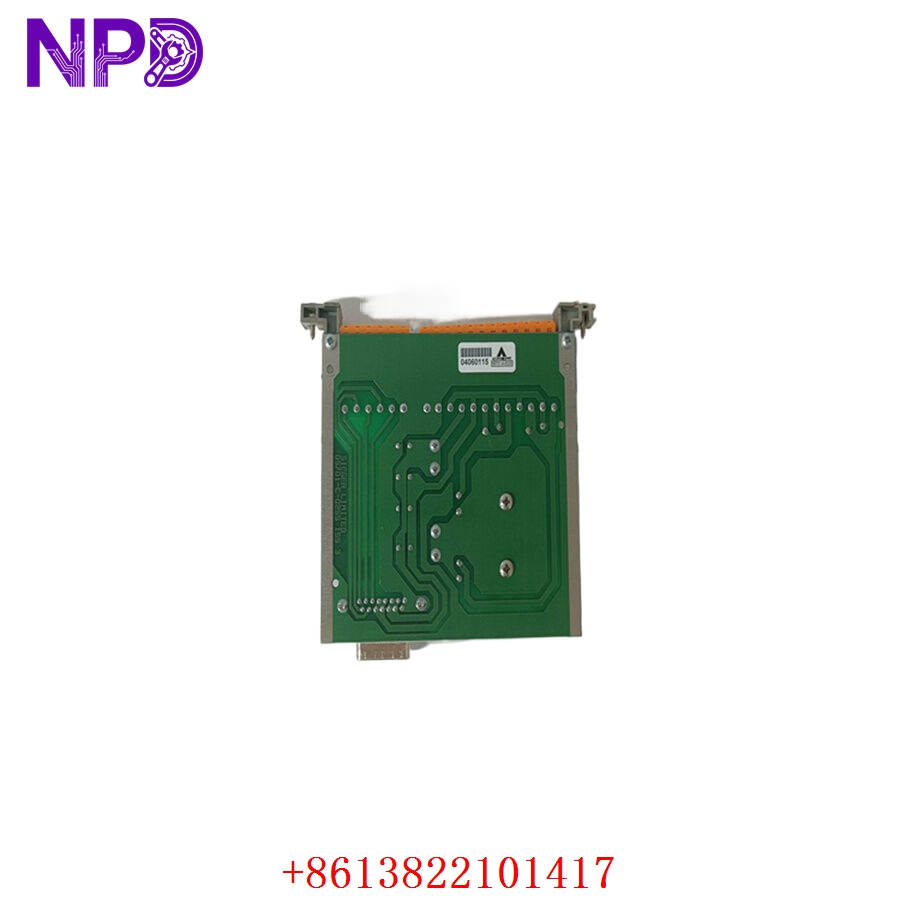

HONEYWELL 05701-A-0325
Key Application Fields
- Oil & Gas Platforms: Continuous monitoring of explosive and combustible hydrocarbons on offshore rigs and onshore refineries.
- Chemical Processing Plants: Early detection of toxic gas leaks and hazardous chemical vapors within production facilities.
- Wastewater Treatment: Real-time detection of dangerous gases like Hydrogen Sulfide (H_2S) and Methane (CH_4) in enclosed spaces.
- Power Generation: Monitoring hazardous gas environments around fuel storage systems and turbine enclosures.
- Manufacturing Facilities: General plant safety management across automotive, semiconductor, and heavy manufacturing assembly lines.
Product Instructions & Guidelines
- Pre-Installation Setup: Confirm that the card’s internal hardware jumpers or DIP switches are accurately configured for your specific sensor type (catalytic bridge or 4-20mA transmitter) prior to inserting into the chassis.
- Rack Insertion: Ensure the System 57 rack power is turned off before insertion to eliminate voltage arc risks. Carefully align the card with the upper and lower guide rails of the designated rack slot and push smoothly until the backplane connector seals fully.
- External Wiring: Terminate your sensor field wiring and alarm loop relay lines securely to the corresponding terminals on the rear matching termination block. Use high-quality shielded cable to prevent radio frequency and electromagnetic interference.
- Calibration and Commissioning: Once powered up, calibrate the gas loop via the front panel interface or software tool. Zero and span calibrations must be performed in accordance with the specific field gas detector instructions.
- Routine Inspections: Periodically test the card’s alarm relays by initiating a simulated test signal from the module interface. Check the clear visibility of the LCD display and clean the outer faceplate using a dry, anti-static micro-fiber cloth.
Q&A – Frequently Asked Questions
- Q: What does a flashing “FLT” LED or fault message on the front panel display indicate?
- A: A fault signal usually signifies an open or short circuit on the field sensor wiring loop, an under-range current signal (less than 4mA), or a failed sensor element that requires replacement.
- Q: Can this card support both 2-wire and 3-wire gas transmitters?
- A: Yes, the 05701-A-0325 card is versatile and can be configured via terminal connections and internal adjustments to accommodate 2-wire loops, 3-wire loops, and catalytic bridge type inputs.
- Q: Is it necessary to change out the card if I switch from a toxic gas sensor to a flammable gas sensor?
- A: No, the card itself is highly versatile. You simply need to reconfigure the hardware settings, adjust the engineering units/ranges, and recalibrate the module to fit the new sensor type.
- Q: How many alarm thresholds can be set up on this single channel module?
- A: The card supports three separate, fully adjustable alarm levels (typically designated as A1, A2, and A3) which can be assigned to activate distinct relay contacts for horns, beacons, or ventilation controls.
